3.44

9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual

CAUTION

Do not handle the turbo/head pipe assembly by the

actuator rod. The rod will become damaged and the

turbo will not function properly.

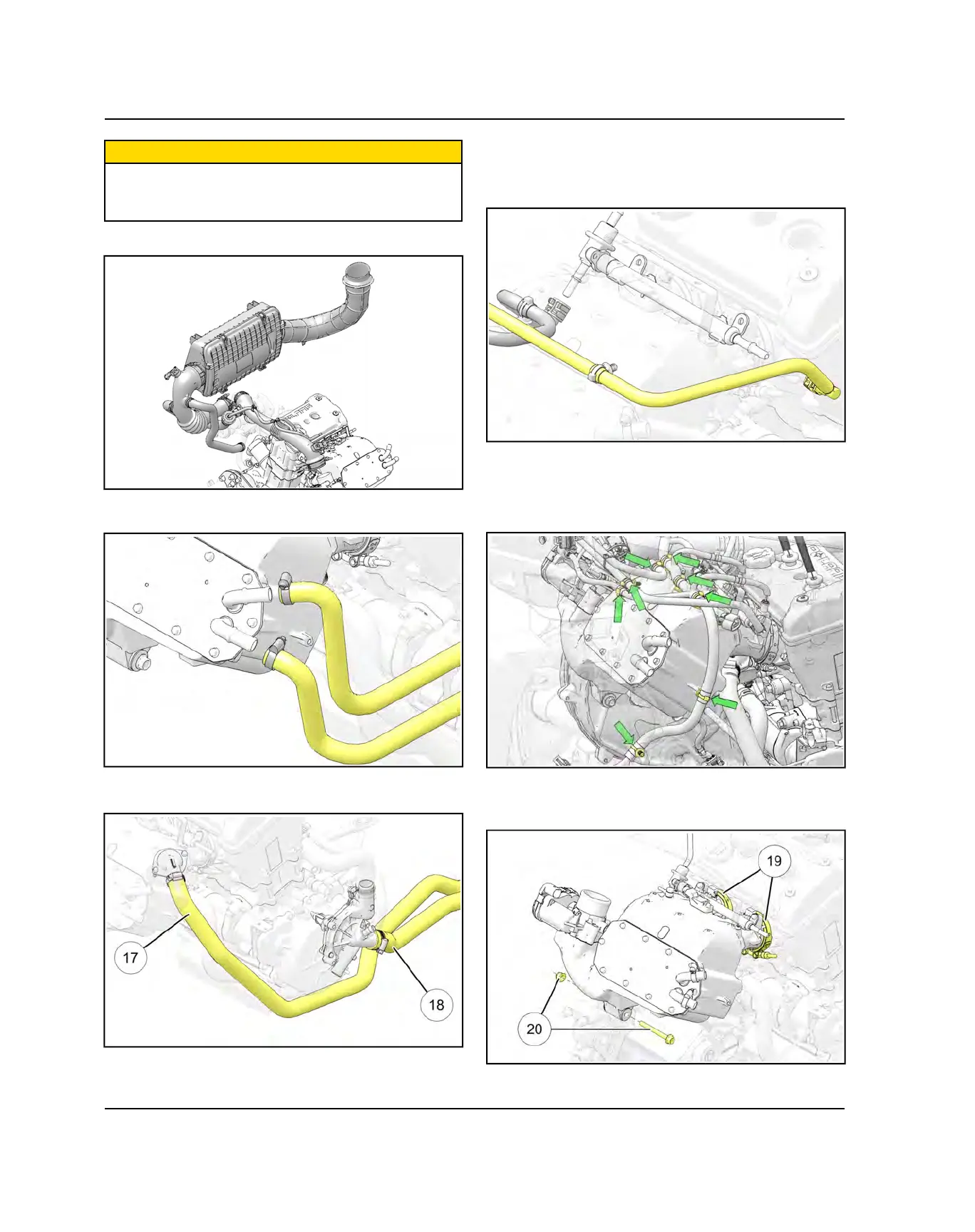

23.Remove air box and engine air intake.

24.Remove two hoses going to the charge air cooler and

move the hoses towards the front of the vehicle.

25.Remove the thermostat housing hose

and the

water pump hose

26.Disconnect stator harness and disconnect the

harness retainer from the engine mount.

27.Disconnect the fuel supply and return hoses at the

fuel rail.

28.Disconnect TBAP, both TMAP sensors, CPS, coolant

temp sensor, Trans switch, speed sensor, injectors,

ETC.

29.Remove zip ties retaining fuel lines and harnesses to

intake manifold.

30.Loosen and remove clamps

1 (

retaining intake

manifold to engine. Remove lower manifold mounting

bolt

(to trans mount bracket).

ENGINE / COOLING SYSTEM
