9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
22. Install water pump assembly into engine.

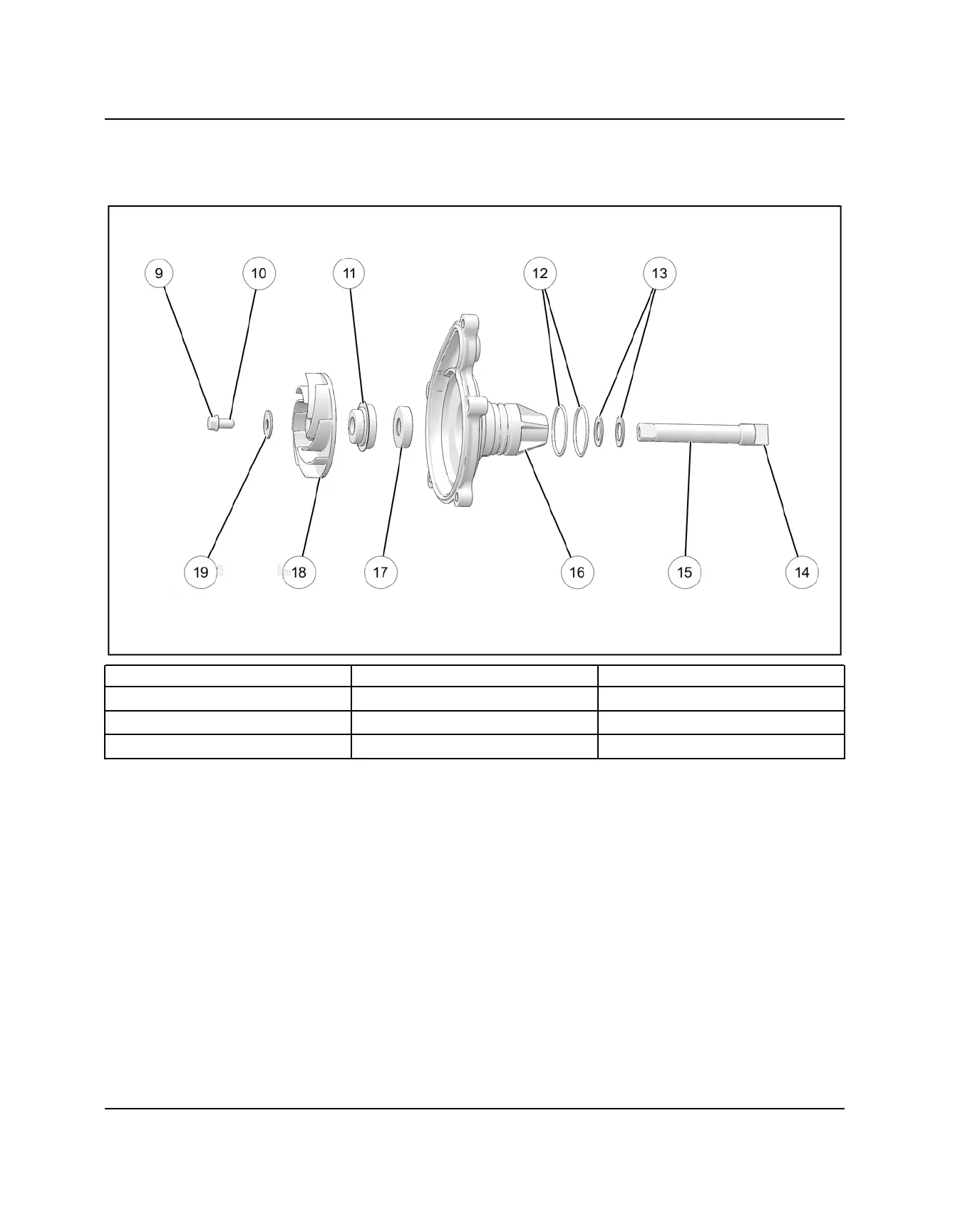

Water Pump Assembly View
o
Bolt
f
Washers
k
Oil Seal
a
Loctite 204
g
Drive Tab
l
Impeller
s
Mechanical Seal
h
Water Pump Shaft
1(
Washer
d
O-Rings
j
Water Pump Housing
ENGINE / COOLING SYSTEM
