9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
TORQUE
Seat Frame Fasteners:
M8 Bolts: 14 ft-lb (19 Nm)
M10 Bolts: 30 ft-lb (41 Nm)

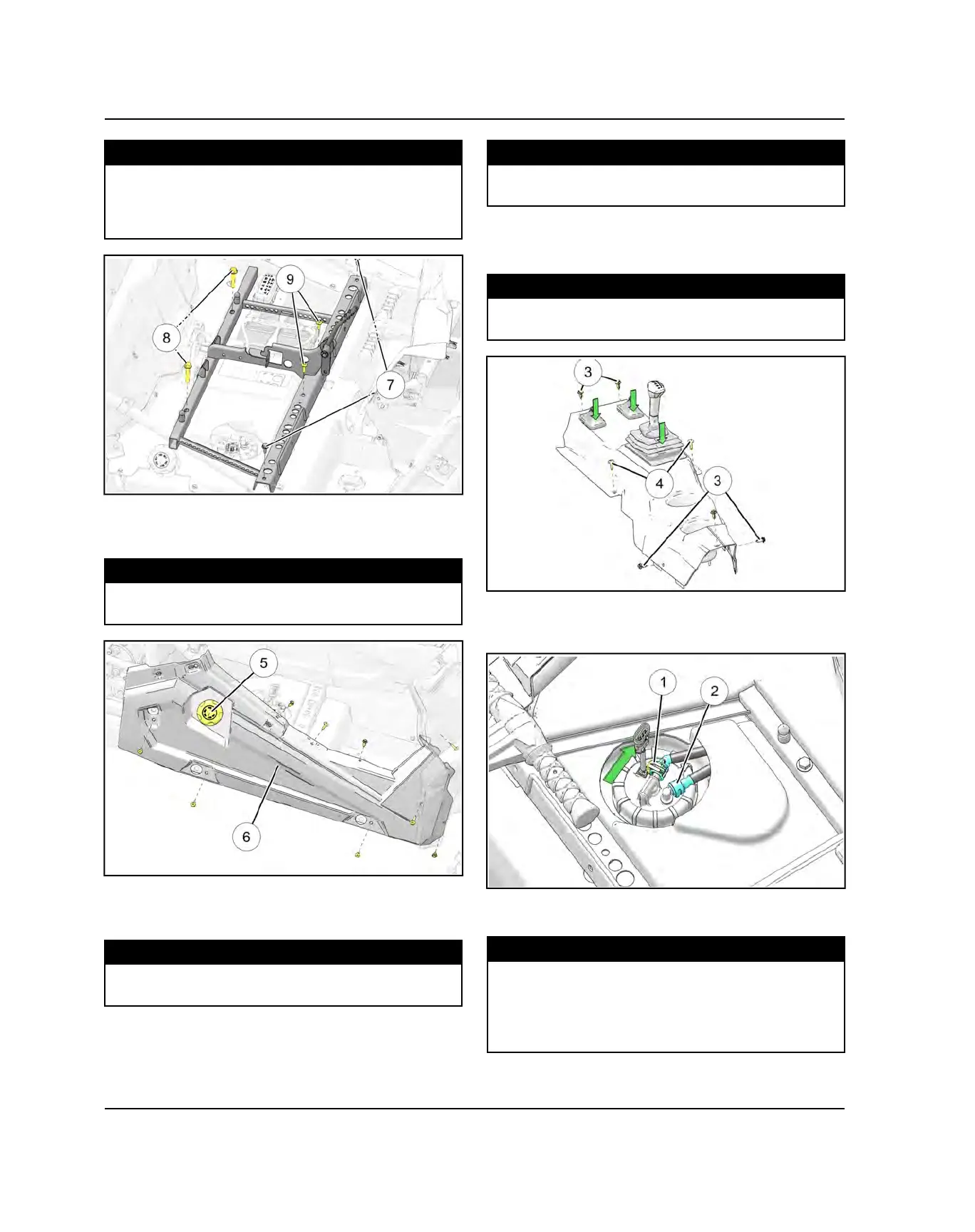

8. Install the push rivets and Torx screws retaining the
passenger side rocker panel
y
. Torque fasteners to
specification.
TORQUE
Body Screws:
8 ft-lb (11 Nm)
9. Install the push rivets and Torx screws retaining the
rear fender flair and rear fender. Torque fasteners to
specification.
TORQUE
Body Screws:
8 ft-lb (11 Nm)
10.Install the shift linkage to the shifter. Install the shift
cable to the shifter bracket and tighten the outer jam
nut. Torque jam nut to specification.
TORQUE
Shift Cable Jam Nut:
16 ft-lb (22 Nm)
11. Install the plastic rivets
e
and Torx screws
r
retain-
ing the center console. Torque fasteners to
specification.
TORQUE
Body Screws:
8 ft-lb (11 Nm)
12.Connect the fuel pump electrical harness.
13.Connect the fuel supply line
q
and return line
w
to
the fuel pump.
14.Install the battery into the vehicle. Torque fasteners to
specification.
TORQUE
Battery Bracket Fastener:
24 in-lbs (3 Nm)
Battery Terminal Fasteners:
60 in-lbs (7 Nm)
15.Install the seats.
