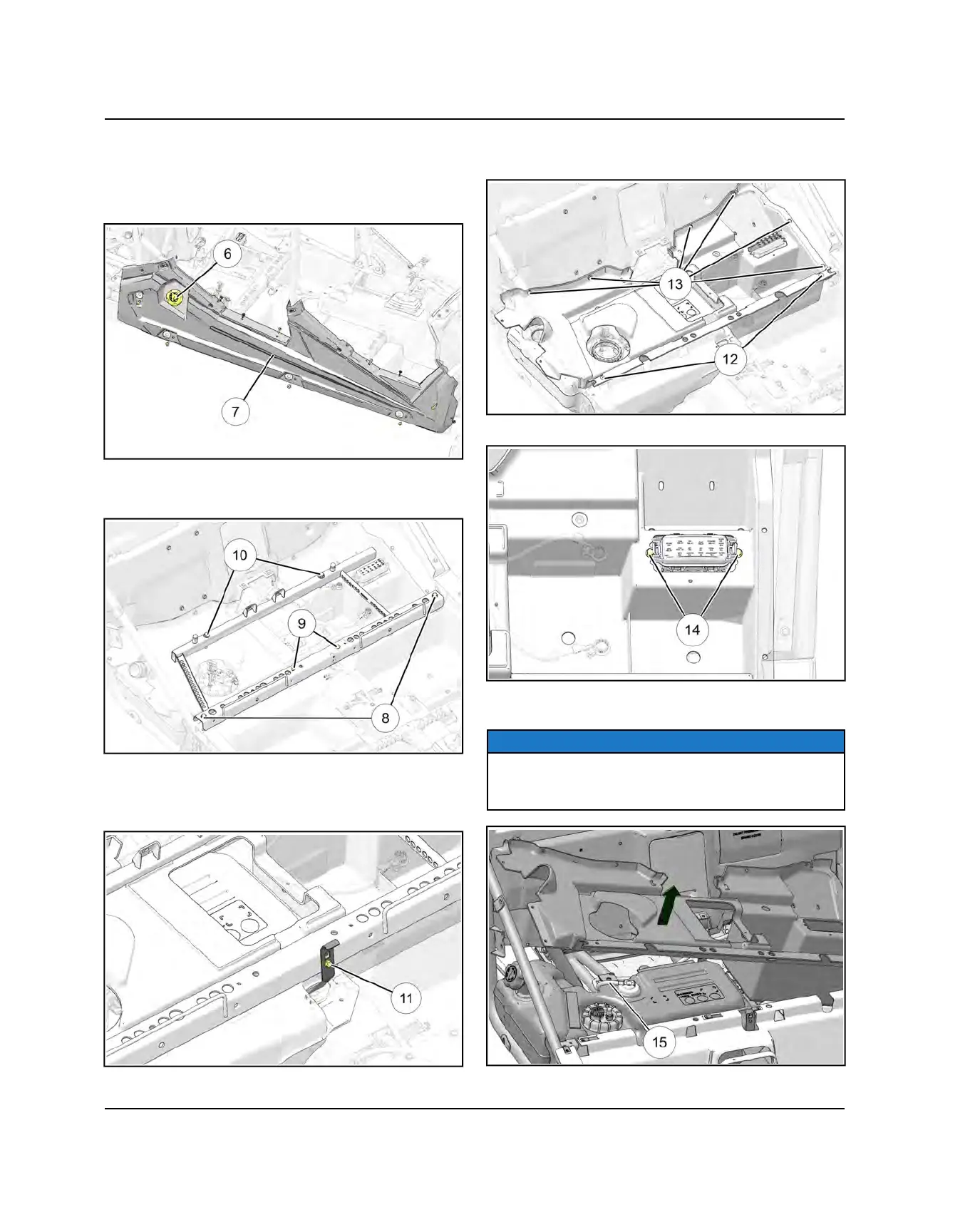

9. Remove the fuel cap
y
. Remove the push rivets and
Torx screws retaining the right rear passenger rocker
panel
u
. Remove the rear fender and rocker panel
from the vehicle. Install the fuel cap back on the fuel
tank.
10.Remove the two bolts
i
and two T40 Torx screws
o
retaining the front of the seat base frame and two rear
bolts
a
.
11. Remove fastener
s
retaining the fuel tank strap to
the seat base frame. The strap does not need to be
removed from the vehicle. Remove the seat base
assembly from the vehicle.
12.Remove the Torx screws
d
and plastic rivets
f
retaining the block-off panel using a T40 Torx driver.
13.Remove the Torx screws
g
retaining the fuse box.
14.Remove the cover panel and remove the fuel tank
vent line
h
from the tank fitting.
NOTE
Carefully bend back the cover panel by the fuel fill neck.
Do not bend the plastic so far as to crack the panel or
permanently deform the plastic.
