9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual

7.21

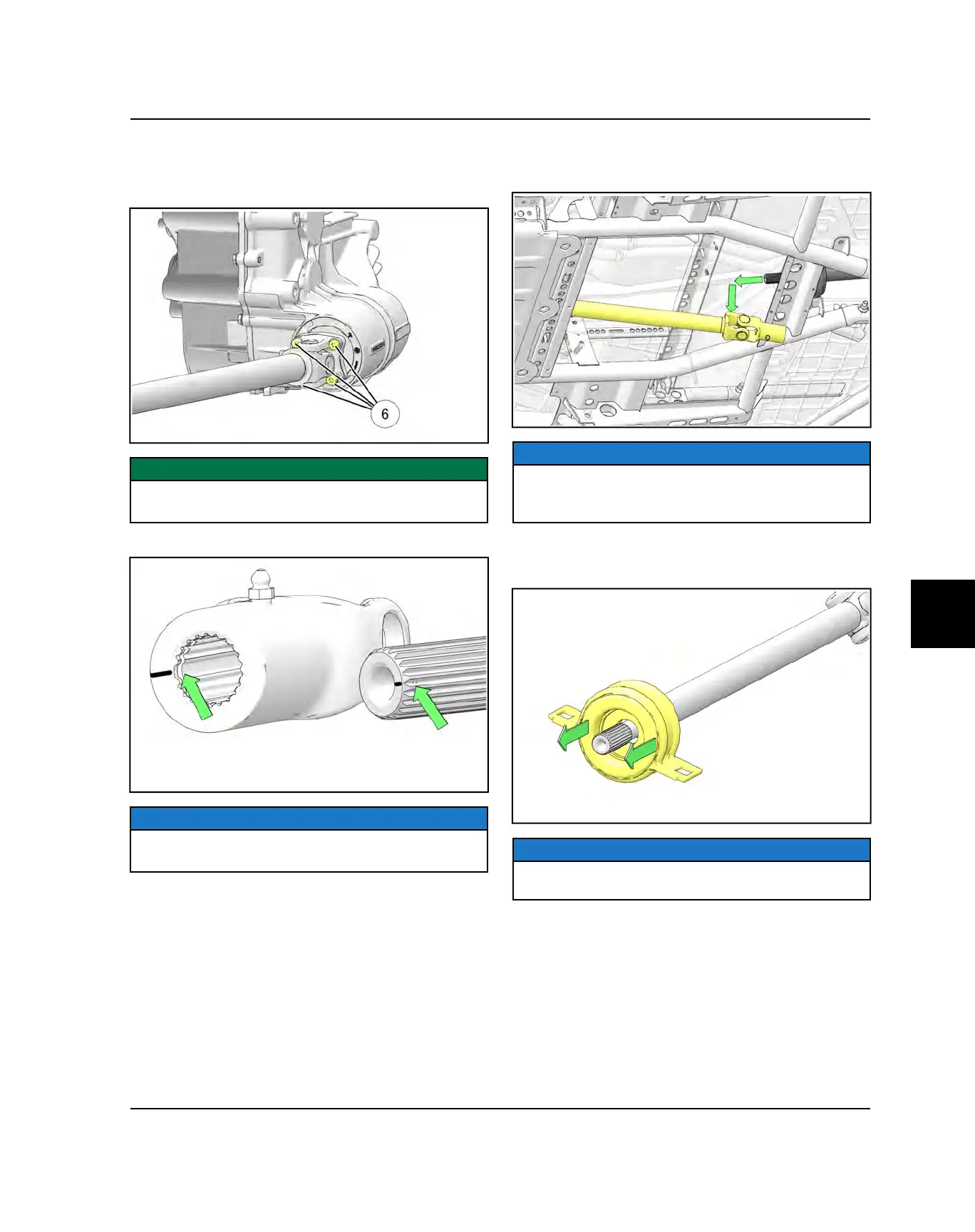

6. Remove the four fasteners

retaining the rear prop

shaft to the transmission coupler. Discard the

fasteners. Move the prop shaft off the coupler

towards the outside of the vehicle.

IMPORTANT

The coupler fasteners have patch lock on the threads

and must be replaced any time they are removed.

7. Mark the front and rear prop shaft for reassembly.

NOTE

The prop shafts have a master spline and will only go

on one way.

8. From under the vehicle, disengage the rear prop shaft

from the front prop shaft and remove the rear prop

shaft out the bottom of the vehicle.

NOTE

Move the front prop shaft as far towards the front of the

vehicle as possible to allow the rear prop shaft yoke to

disengage from the splines on the front prop shaft.

9. For front prop shaft removal, pull the bearing isolator

towards the rear of the vehicle to disengage it from

the prop shaft.

NOTE

The front prop shaft cannot be removed with the

isolator installed.

FINAL DRIVE
