9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
6.11

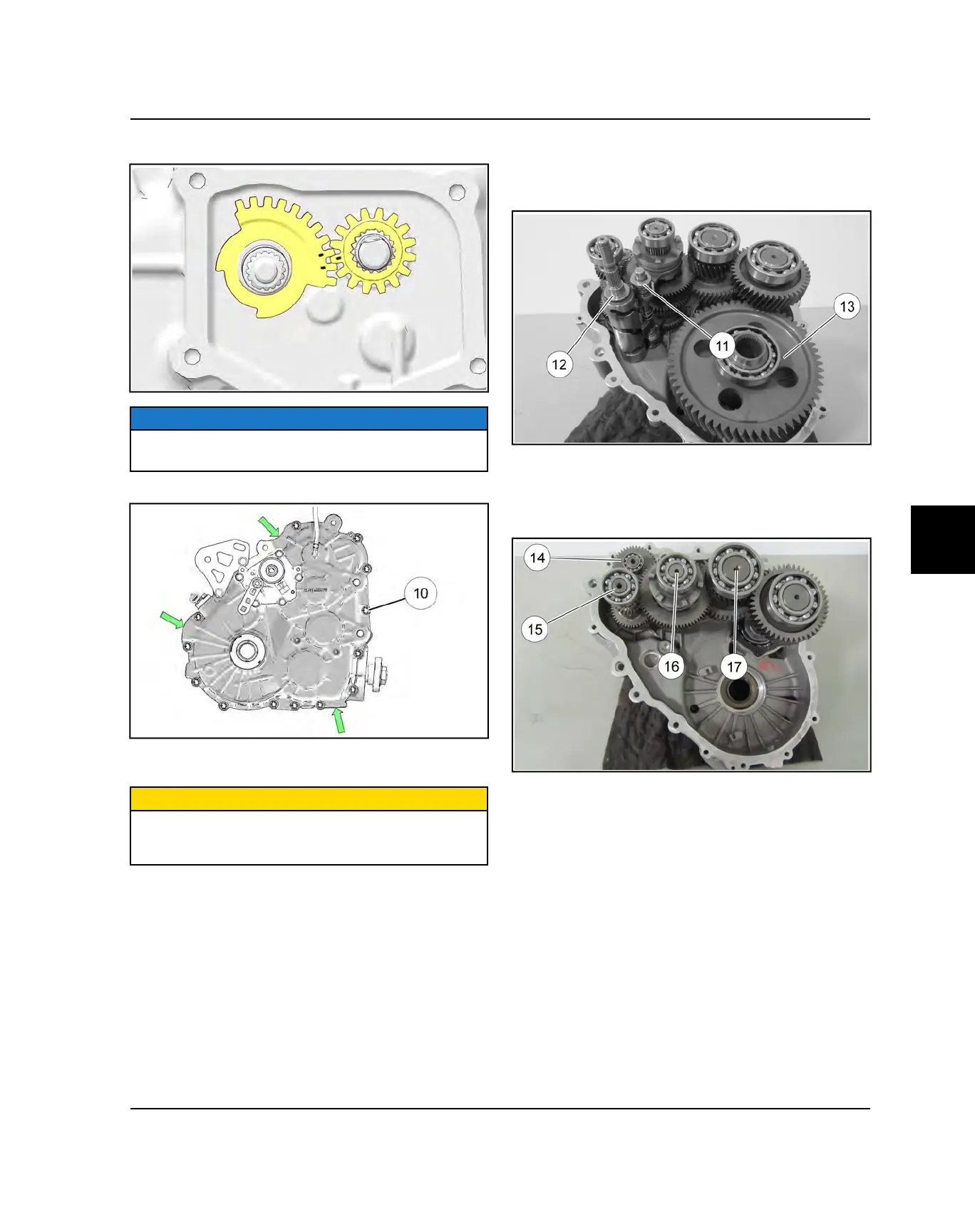

7. Remove the two sector gears.
NOTE
Note the timing marks on the shift gears for reassembly
purposes.
8. Remove transmission case bolts
a
.
9. Using the three designated pry points shown in the
image, separate the transmission case halves.
CAUTION
Do not pry on the transmission case mating surfaces or
the transmission cases will be damaged and leak oil
after it is reassembled.
10.Lift up on the shift shaft rail
s
and move the rail
assembly rearward to allow the shift fork pins to be
removed from the shift drum
d
. Remove the shift
drum from the transmission housing.
11. Remove the shift shaft and forks as an assembly.
12.Remove the rear output shaft assembly
f
by lifting
underneath the gear or by tapping the shaft from the
opposite side.
13.Remove the idler gear assembly
g
.
14.Remove the input shaft assembly
h
.
15.Remove the reverse shaft assembly
j
.
16.Remove the idler shaft assembly
k
.
TRANSMISSION
