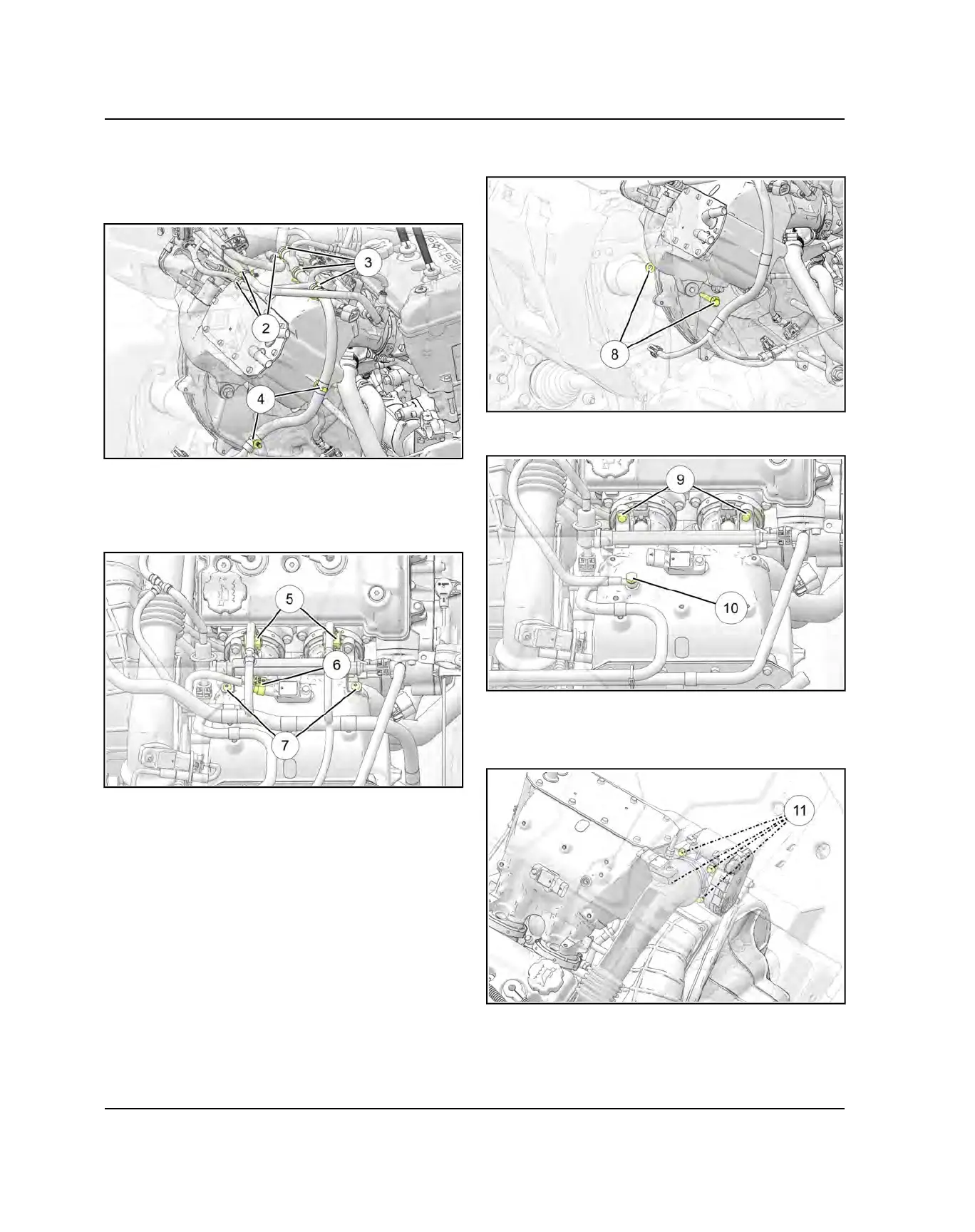

3. Cut the three zip ties retaining the fuel lines
w
, the
three zip ties
e
retaining the harness on the top of
the intake manifold and the two zip ties
r
retaining
the harness on the passenger side of the intake
manifold.
4. Remove the cargo box access panel.
5. Disconnect the fuel injectors
t
, TMAP sensor
y
and
remove the two fasteners
u
retaining the fuel injector
wiring bracket to the intake manifold. Move the
assembly off to the side.
6. Disconnect the transmission switch, speed sensor
and CPS.
7. Remove the fasteners
i
retaining the intake
manifold to the transmission.
8. Remove the two fasteners
o
retaining the fuel rail to
the intake manifold.
9. Remove the fastener
a
retaining the manifold air
pressure reference hose banjo fitting.
10.Remove the four fasteners
s
retaining the throttle
body/ETC to the intake manifold.
