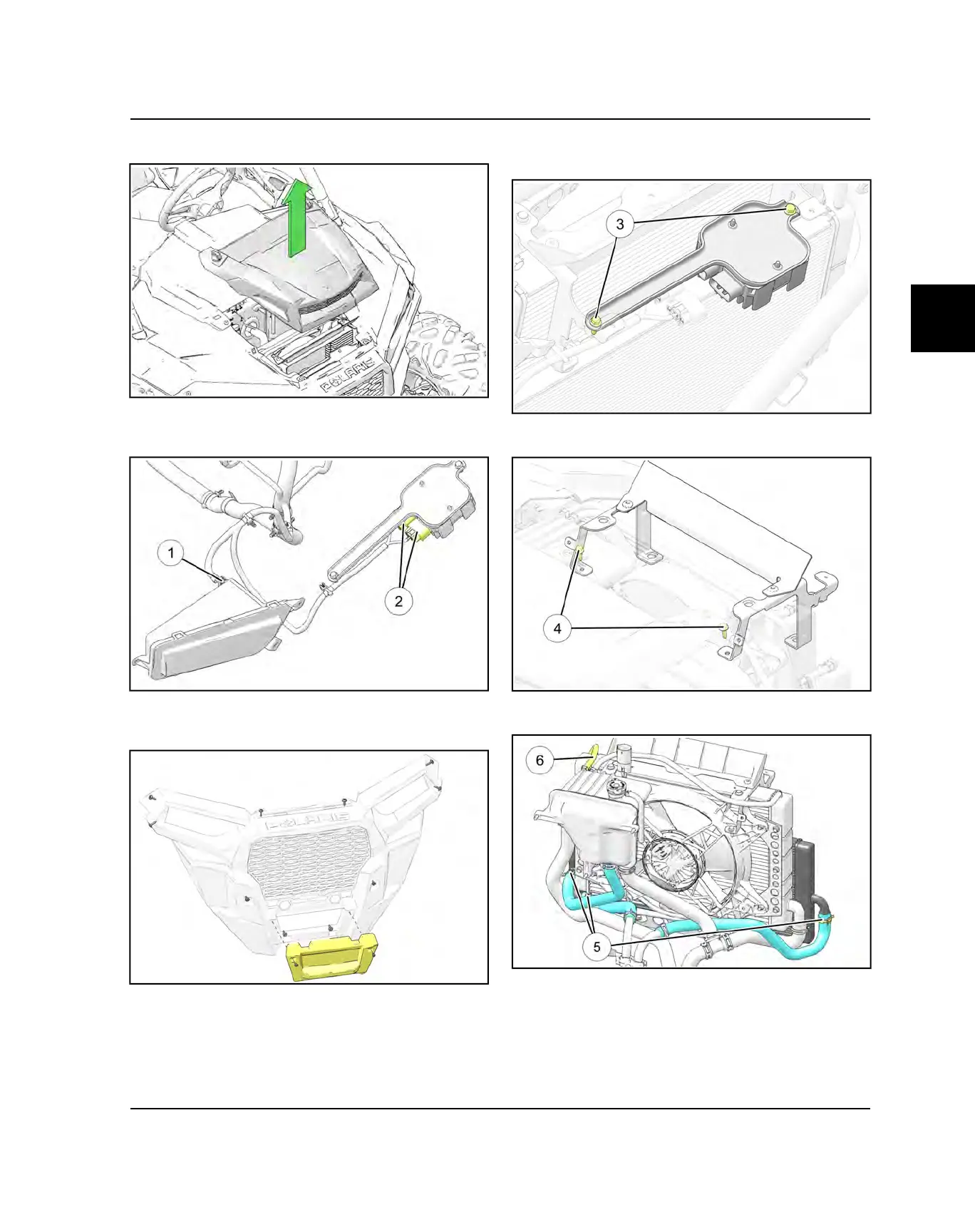

2. Remove the hood panel.
3. Disconnect the front headlight harnesses
q
on both
sides and the two voltage regulator harness
connections
w
.
4. Remove the two Torx fasteners retaining the winch
cover and the ten Torx fasteners retaining the front
fascia.
5. Remove the zip ties on both sides retaining the
headlight harnesses.
6. Remove the two fasteners
e
retaining the voltage
regulator bracket and remove the bracket.
7. Remove the two fasteners
r
retaining the upper
radiator bracket.
8. Remove the three large hoses
t
going to the charge
air radiator and the small vent hose
y
.
9. Lift the charge air radiator and turn it 90° to remove it
from the chassis.
10.FOR ENGINE RADIATOR REMOVAL: Disconnect
the fan harness.
