9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
3.61
2. Remove the crankcase drain plug
e
to drain any oil
remaining in the engine.
3. Remove the oil filter.

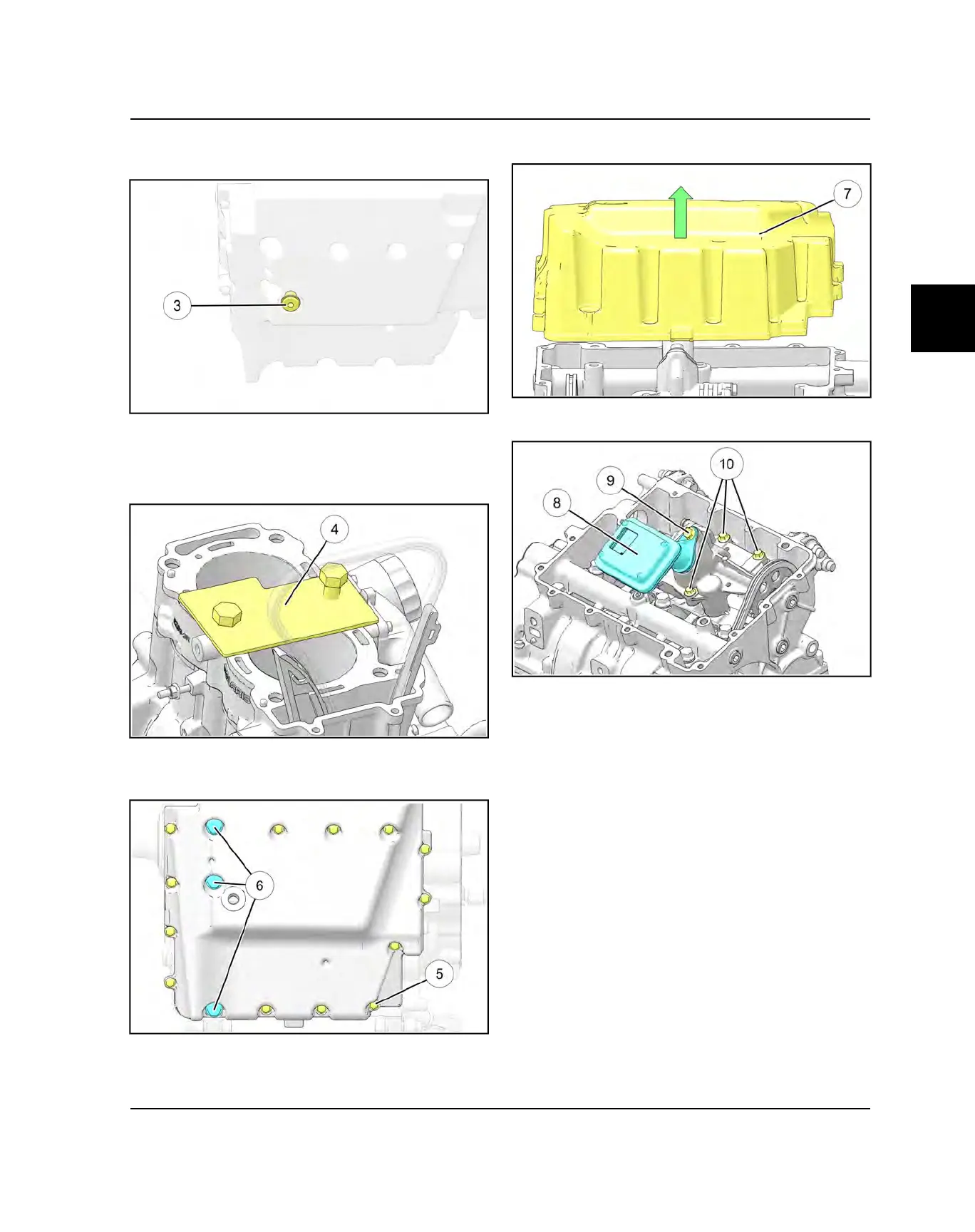

4. Install the Cylinder Holding & Camshaft Timing Plate
PU-50563
r
onto the cylinder. The cylinder holding
tool retains the cylinder and pistons when the engine
is rotated.
5. Rotate engine to access the crankcase sump cover.
6. Remove the thirteen M6
t
and three M8
y
bolts
retaining the sump cover to the crankcase.
7. Remove the sump cover
u
from the crankcase.
8. Remove and clean oil pump pick-up
i
by removing
the one bolt
o
.
9. Remove the three bolts
a
that retain the oil pump
s
to the crankcase.
