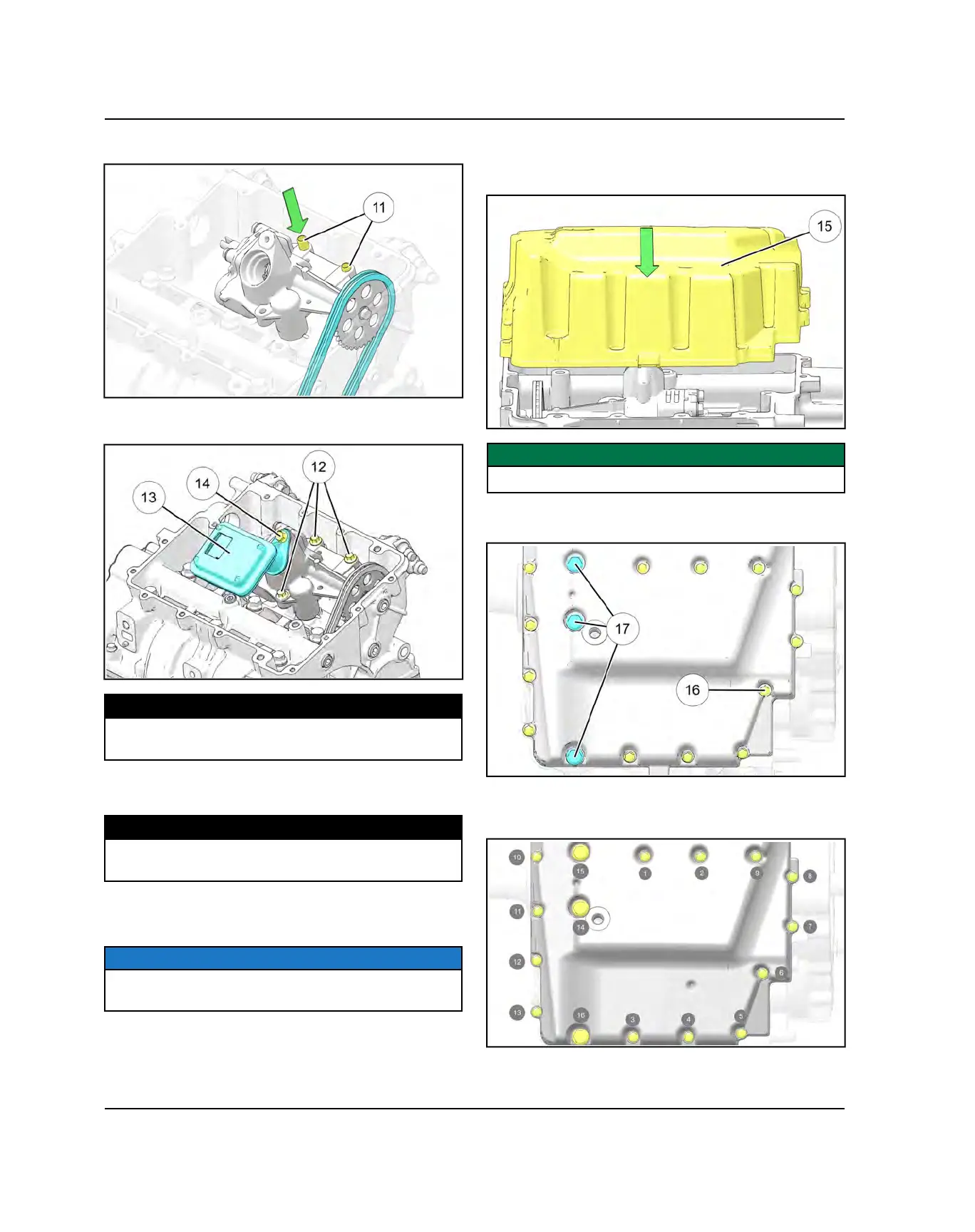

19.Install dowel pins
s
into oil pump mounting holes.
20.Install the three bolts
d
that retain oil pump to the
crankcase. Torque mounting bolts to specification.
TORQUE
Oil Pump Mounting Bolts:
7 ft-lbs (10 Nm)
21.Reinstall oil pump pick-up
f
. Torque mounting screw
g
to specification.
TORQUE
Oil Pump Pick-Up Retaining Screw:
7 ft-lb (10 Nm)
22.Clean the gasket sealing surfaces on oil sump cover
and crankcase to remove old gasket material and any
oil.
NOTE
Gasket surfaces must be DRY and oil free. Use care
upon assembly to keep oil away.
23.Apply a thin, continuous film of Crankcase Sealant
(2871557) to sump cover mating surface and install
the oil sump cover
h
onto the crankcase.
IMPORTANT
Do not allow sealant to dry before assembly.
24.Install the thirteen M6
j
and three M8 bolts that
retain the oil sump cover
k
to the crankcase.
25.Torque the oil sump cover bolts in sequence to
specification. Repeat the sequence to verify final
torque.
