Polaris RZR XP Turbo User Manual

4.24
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.

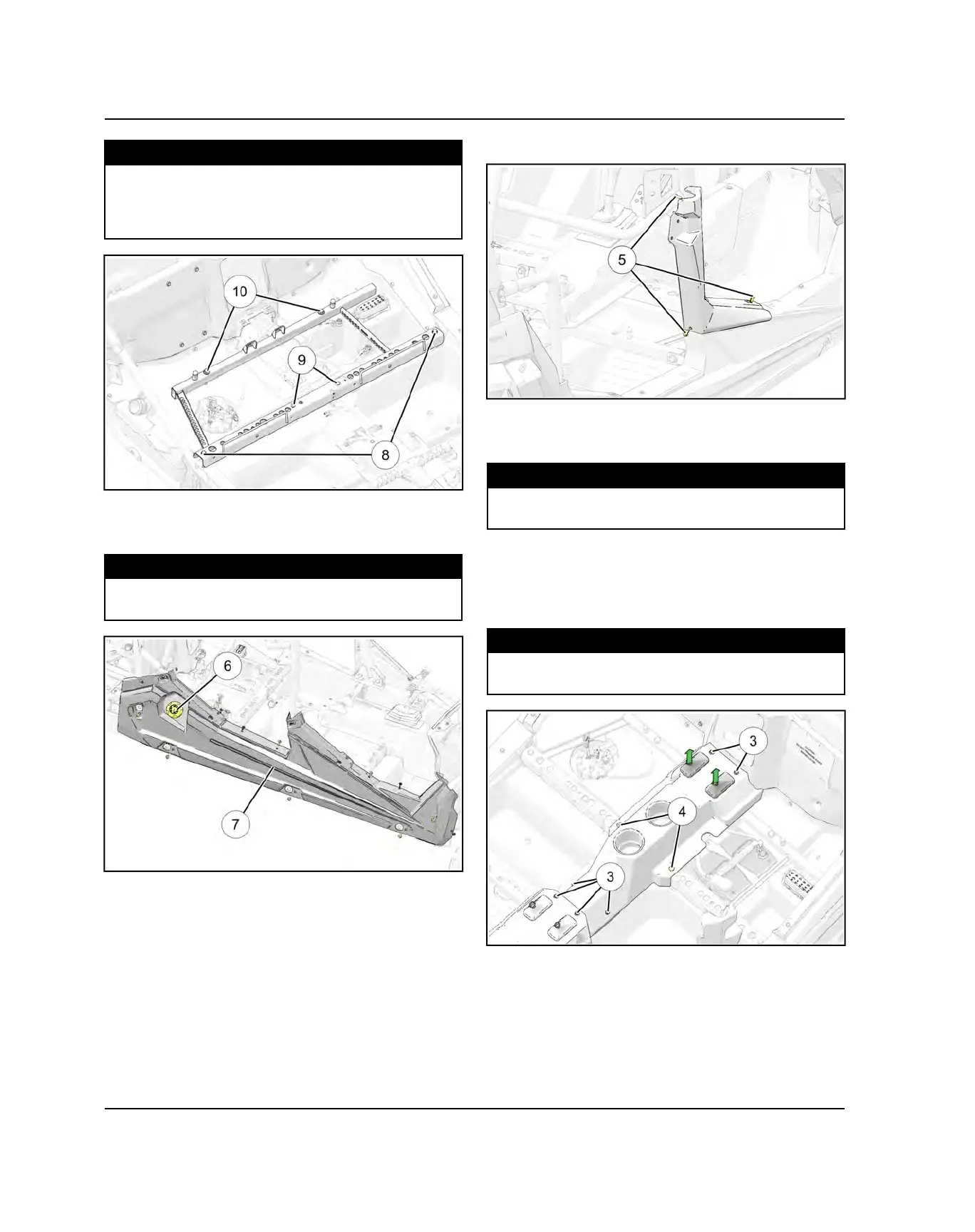

TORQUE
Seat Frame Fasteners:
M8 Bolts: 14 ft-lb (19 Nm)
M10 Bolts: 30 ft-lb (41 Nm)
8. Install the push rivets and Torx screws retaining the
passenger side rocker panel
u
. Install fuel cap
y
.
Torque fasteners to specification.
TORQUE
Body Screws:
8 ft-lb (11 Nm)
9. Install the fasteners
t
retaining the B-Pillar cover.
10.Install the push rivets and Torx screws retaining the
rear fender flair and rear fender. Torque fasteners to
specification.
TORQUE
Body Screws:
8 ft-lb (11 Nm)
11. Pull the seat belt latch grommets through the rear
center console. Insert the rear center console under
the back of the front center console. Install the plastic
rivets
e
and Torx screws
r
retaining the center con-
sole. Torque fasteners to specification.
TORQUE
Body Screws:
8 ft-lb (11 Nm)
12.Connect the fuel pump electrical harness.
EFI / FUEL SYSTEM
