9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
4.37

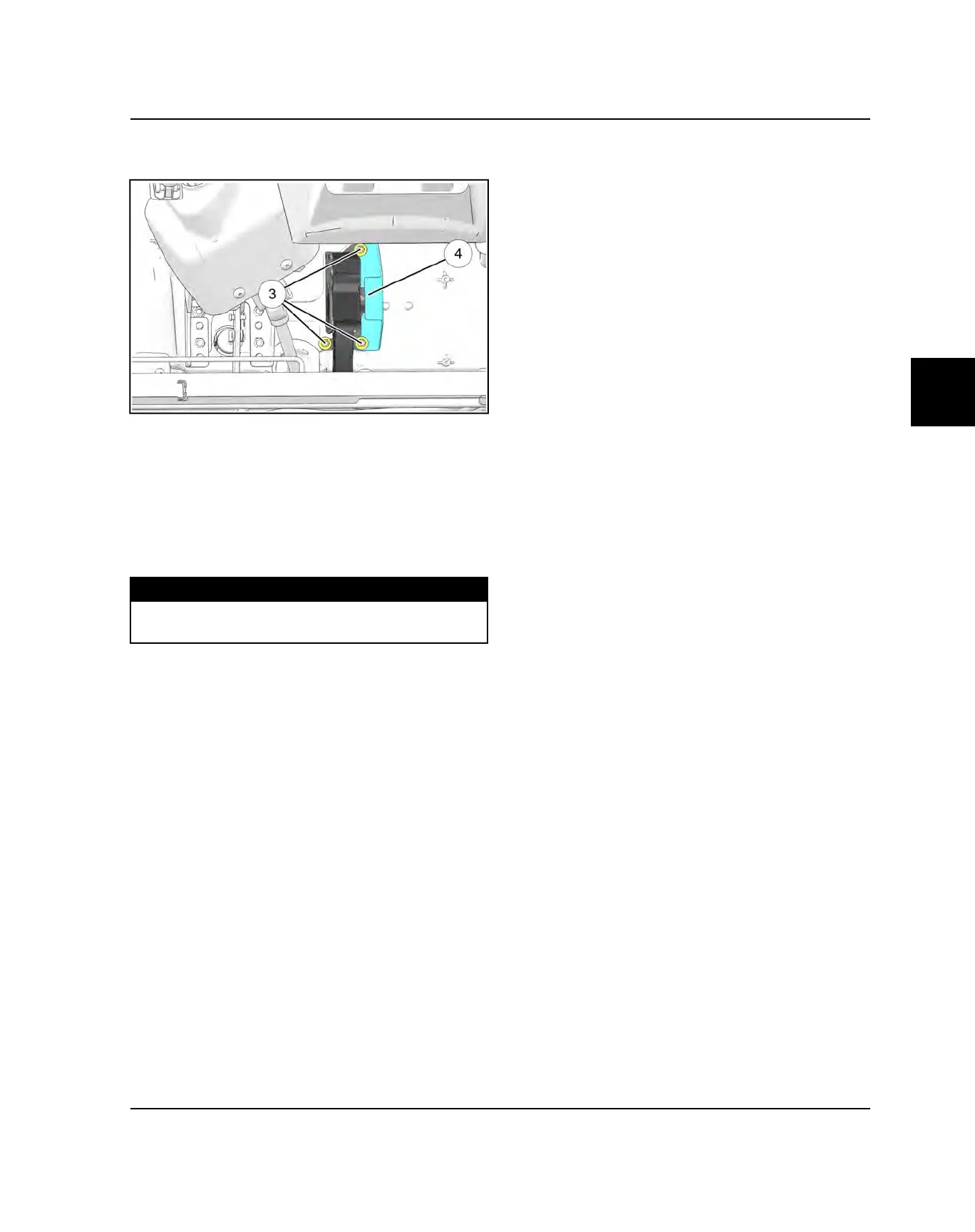

3. Remove the three fasteners
e
retaining the throttle
pedal assembly to the frame support.
4. Remove the protective shield
r
.
5. Remove the pedal assembly from the vehicle.
PPS Installation
6. Place the throttle pedal assembly and protective
shield on the mounting studs and loosely install the
three fasteners.
7. Torque the three mounting bolts to specification and
connect the PPS harness connection.
TORQUE
Throttle Pedal Mounting fasteners:
18 ft-lb (24 Nm)
8. Manually cycle the throttle pedal to verify the throttle
pedal moves freely.
9. Connect the negative (-) battery cable and install the
drivers seat.
