9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.

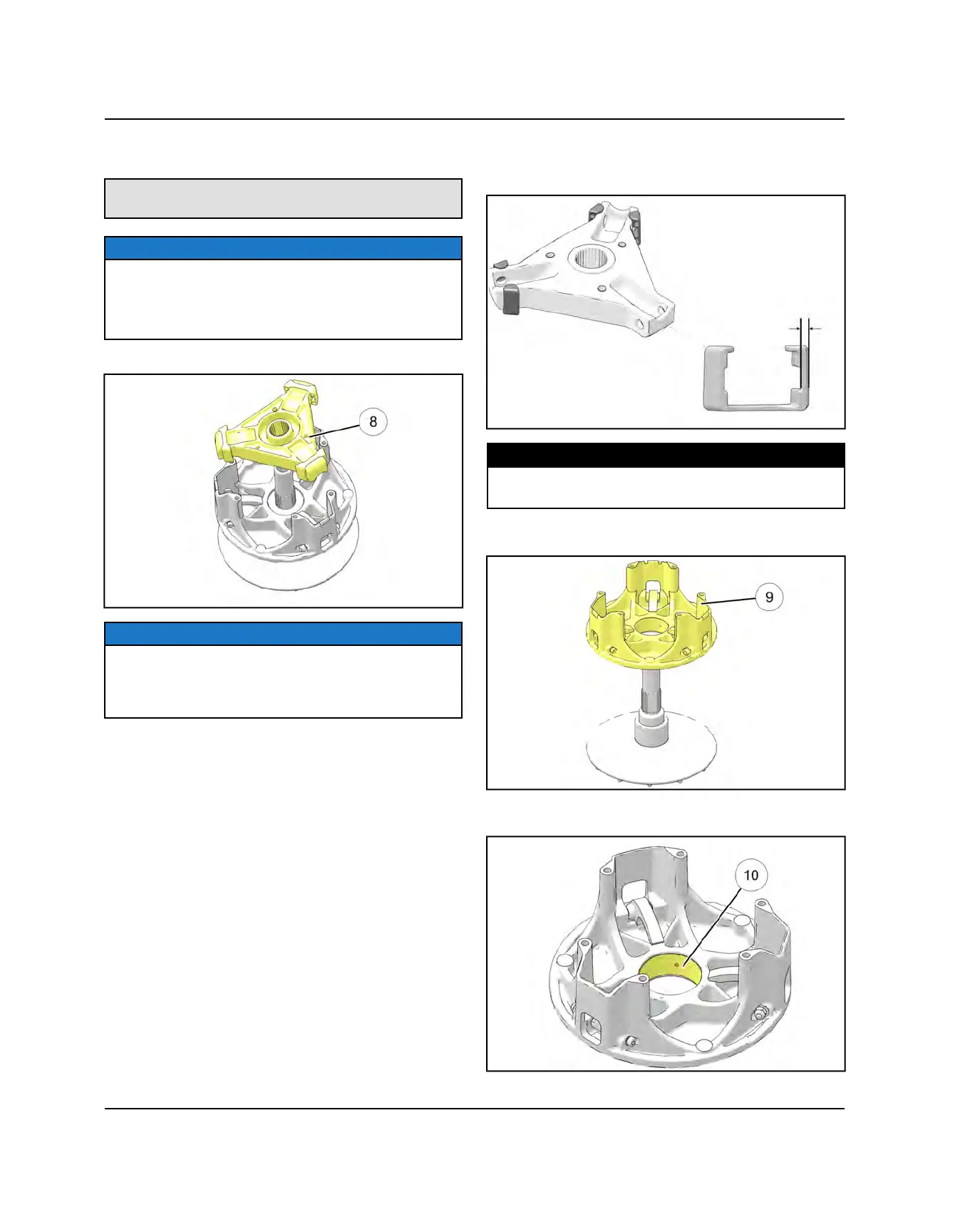

8. Install the clutch spider nut tool
y
on the spider nut
sleeve
u
and remove the sleeve.
Spider Nut Removal tool:
PU-50578
NOTE
The spider nut sleeve is torqued to
300 ft-lb (407 Nm)
A large breaker bar will be required to remove the
sleeve.
9. Lift up on the spider
i
to remove it from the clutch.
NOTE
The spider is splined to the stationary sheave. A light
rocking action will free the spider from the splines. A
commercially available 3-jaw puller may also be used to
help with spider removal.
10.Remove the three sliders from the spider and
measure the thickness on both ends. Replace the
sliders if worn beyond the service limit.
MEASUREMENT
Drive Clutch Sliders:
Service Limit: 0.075″ (1.905 mm)
11. Lift the moveable sheave
o
to remove it from the
shaft.
12.Inspect the moveable sheave bearing
a
for wear. If
wear is present, replace the bearing.
PVT SYSTEM
