9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
6.13

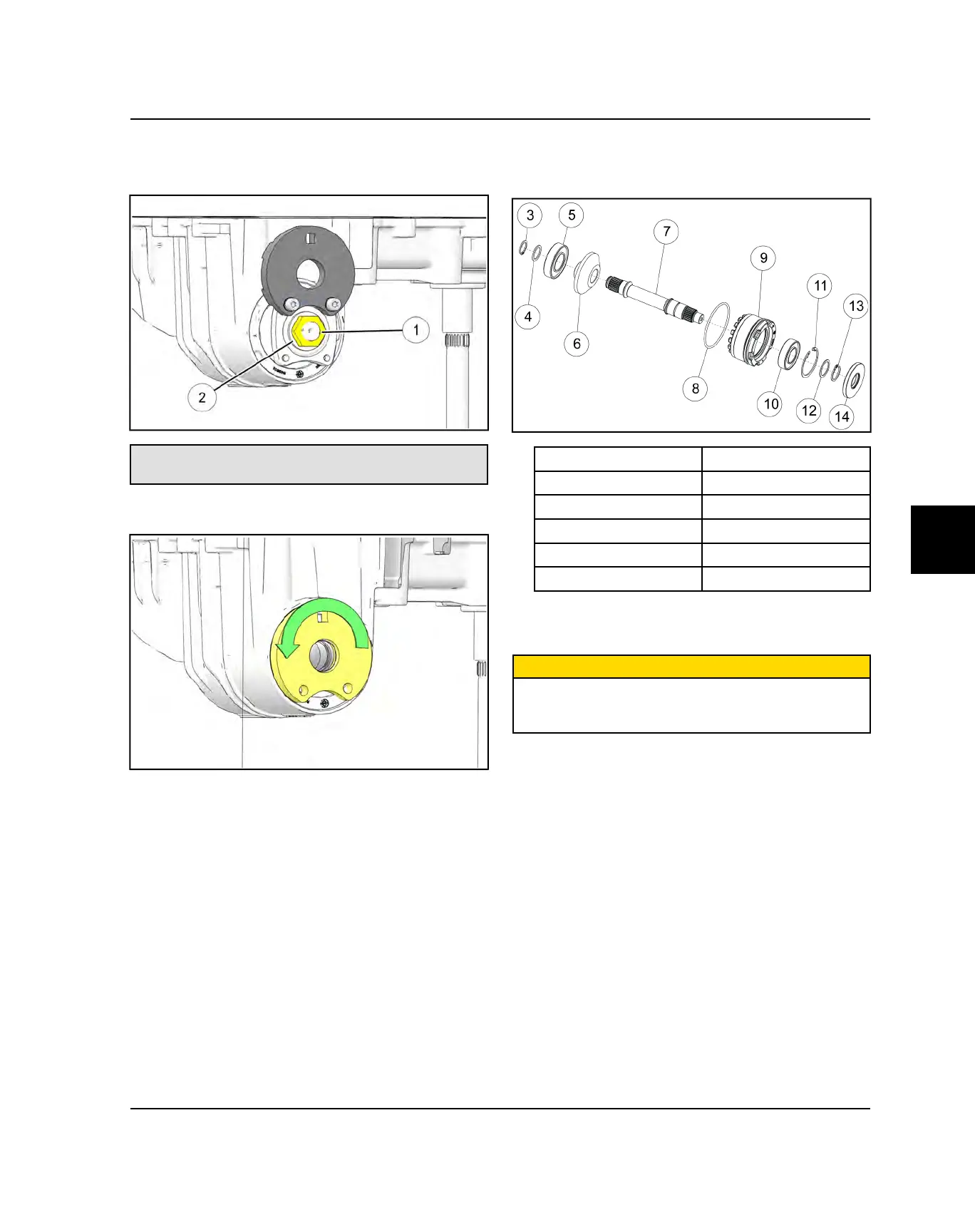

1. Using the Snorkel Tube Tool and two of the coupler
bolts to hold the coupler, remove the front output
shaft coupler nut
q
and washers
w
.
Snorkel Tube Tool:
PU-51862
2. Use the snorkel tube tool to remove the snorkel tube
and front output shaft as an assembly.
3. Extract the snorkel shaft seal
g
from the snorkel tube
o
by drilling a small pilot hole and threading a screw
in to slowly pull the seal out.
e
Snap Ring
o
Snorkel Tube
r
Thrust Washer
a
Bearing
t
Bearing
s
Snap Ring
y
Ring Gear
d
Thrust Washer
u
Front Output Shaft
f
Snap Ring
i
O-Ring
g
Seal
4. Once the three snap rings
es
&
f
are removed, use
an arbor press to remove the snorkel tube and other
components from the shaft.
CAUTION
Support the end face of the gear teeth when pushing
the shaft through or damage to the gear teeth may
occur.
TRANSMISSION
