9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
7.15

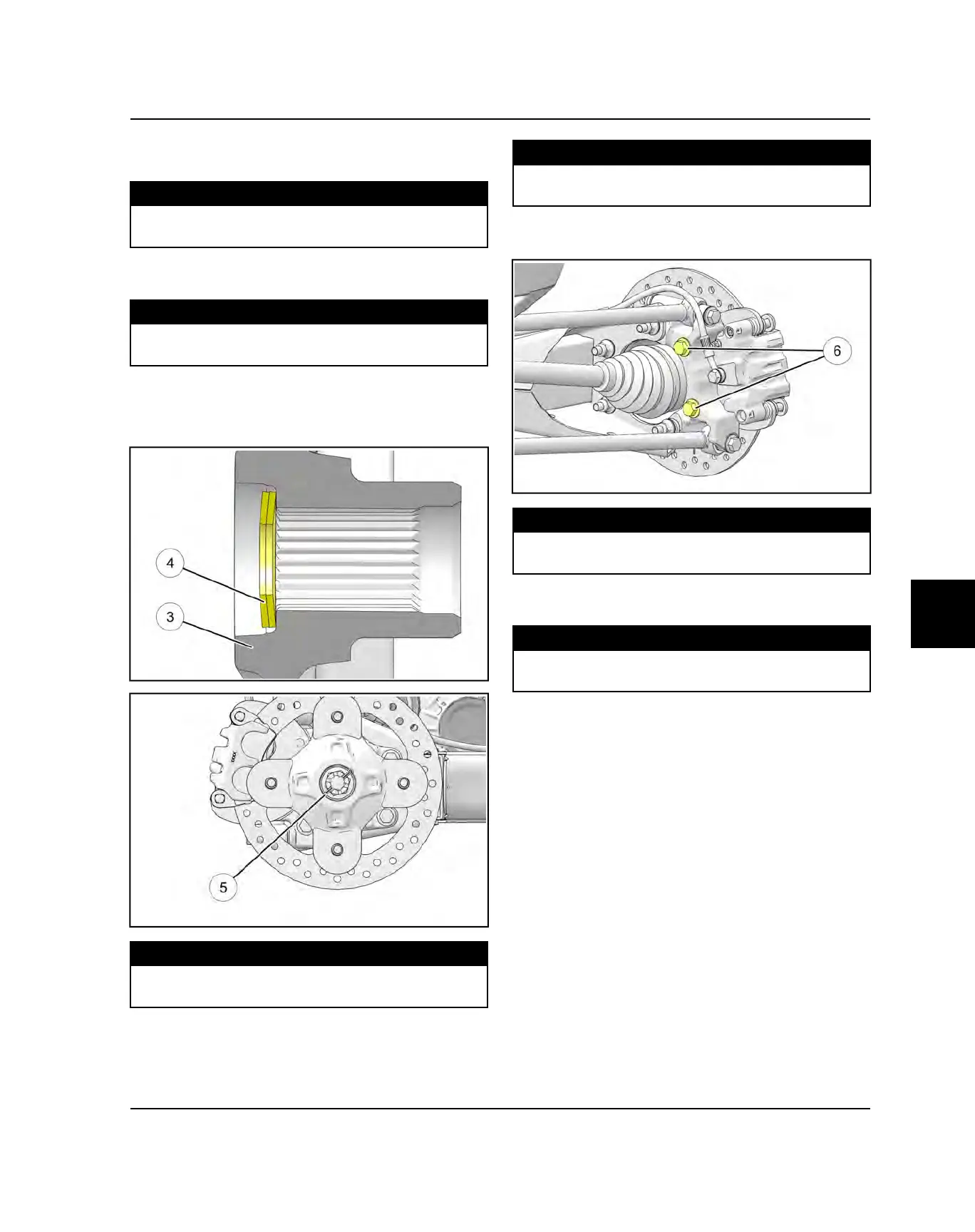

4. Install the stabilizer bar mounting bolt, washer and
new nut. Torque fastener to specification.
TORQUE
Lower Shock Bolt to Trailing Arm:
70 ft-lbs (95 Nm)
5. Install the stabilizer bar mounting bolt, washer and
new nut. Torque fastener to specification.
TORQUE
Stabilizer Bar Linkage:
42 ft-lbs (57 Nm)
6. Apply Anti-Seize to drive shaft axle splines.
7. Install rear wheel hub assembly
e
. Install the two
cone washers
r
and castle nut. Torque castle nut to
specification. Install new cotter pin
t
.
TORQUE
Rear Hub Castle Nut:
180 ft-lbs (244 Nm)
8. Install the radius rod bolts, washers and new nuts.
Torque fasteners to specification.
TORQUE
Radius Rods to Bearing Carrier:
50 ft-lb (68 Nm) + 45°
9. Install the rear brake caliper assembly and new bolts
y
. Torque to specification.
TORQUE
Rear Caliper Mounting Bolts:
46 ft-lbs (62 Nm)
10.Install wheel and four wheel nuts. Torque wheel nuts
to specification.
TORQUE
Wheel Lug Nuts:
120 ft-lbs (163 Nm)
