Polaris RZR XP Turbo User Manual

7.36
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.

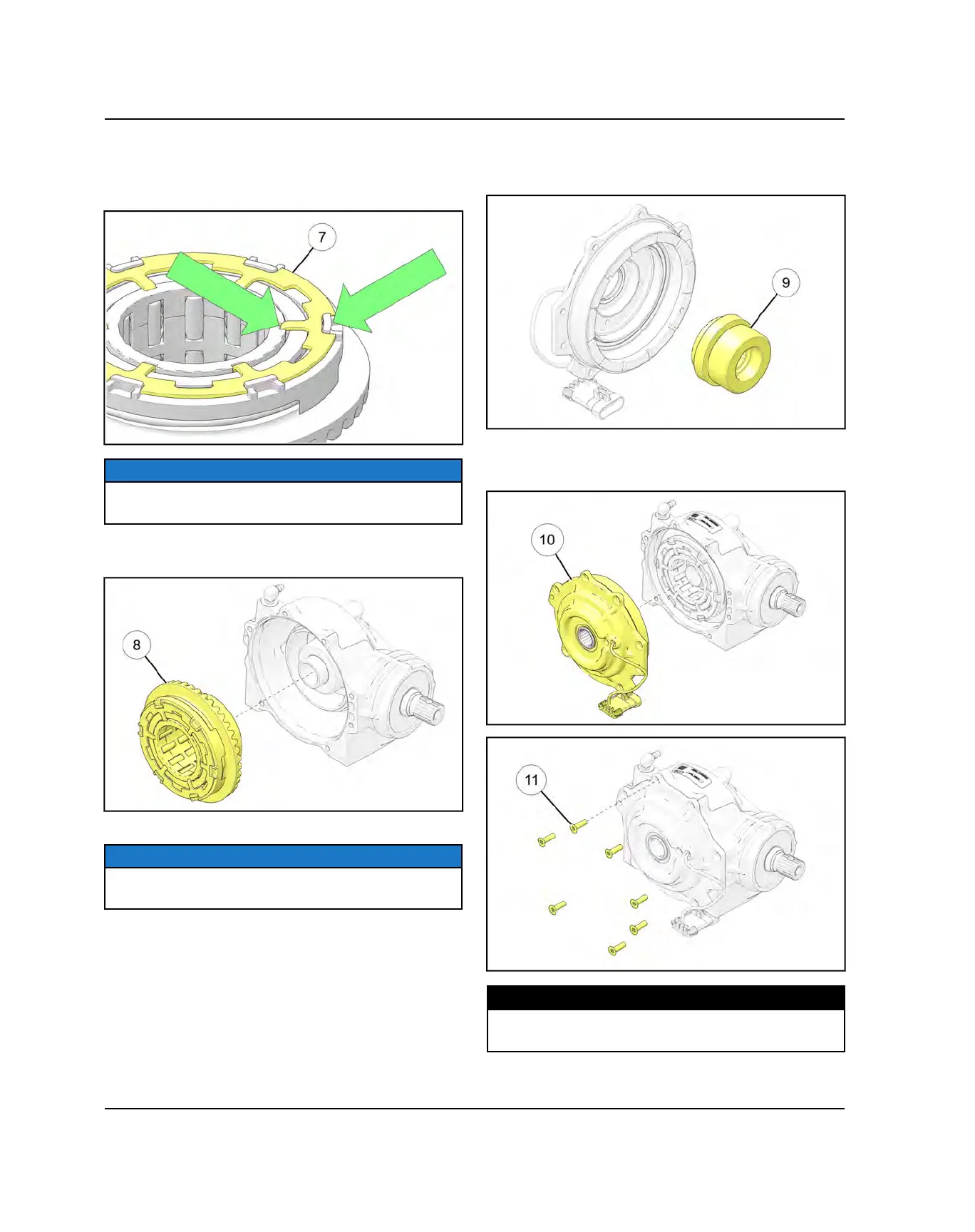

9. Install armature plate
u
. Be sure all of the armature
plate tabs are fully engaged into the roll cage
assembly and that it is resting properly on the torsion
spring retainer.
NOTE
Verify armature plate tabs are in the roll cage slots and
that it rests properly on the spring retainer.
10. Carefully install the ring gear and roll cage assembly
i
into the gearcase housing.
11. Install a new O-ring on the cover plate assembly.
NOTE
Be sure the square O-ring is placed flat on the cover
surface. If the O-ring is twisted fluid leakage may occur.
12. Carefully install the LH output hub assembly
o
into
the cover plate. Take care not to damage the new
cover plate seal while installing the output hub.
13. Install the output cover assembly
a
onto the
gearcase housing. Install the seven cover plate
screws
s
and torque to specification.
TORQUE
Cover Plate Screws:
9 ft-lbs (12 Nm)
FINAL DRIVE
