9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
8.39

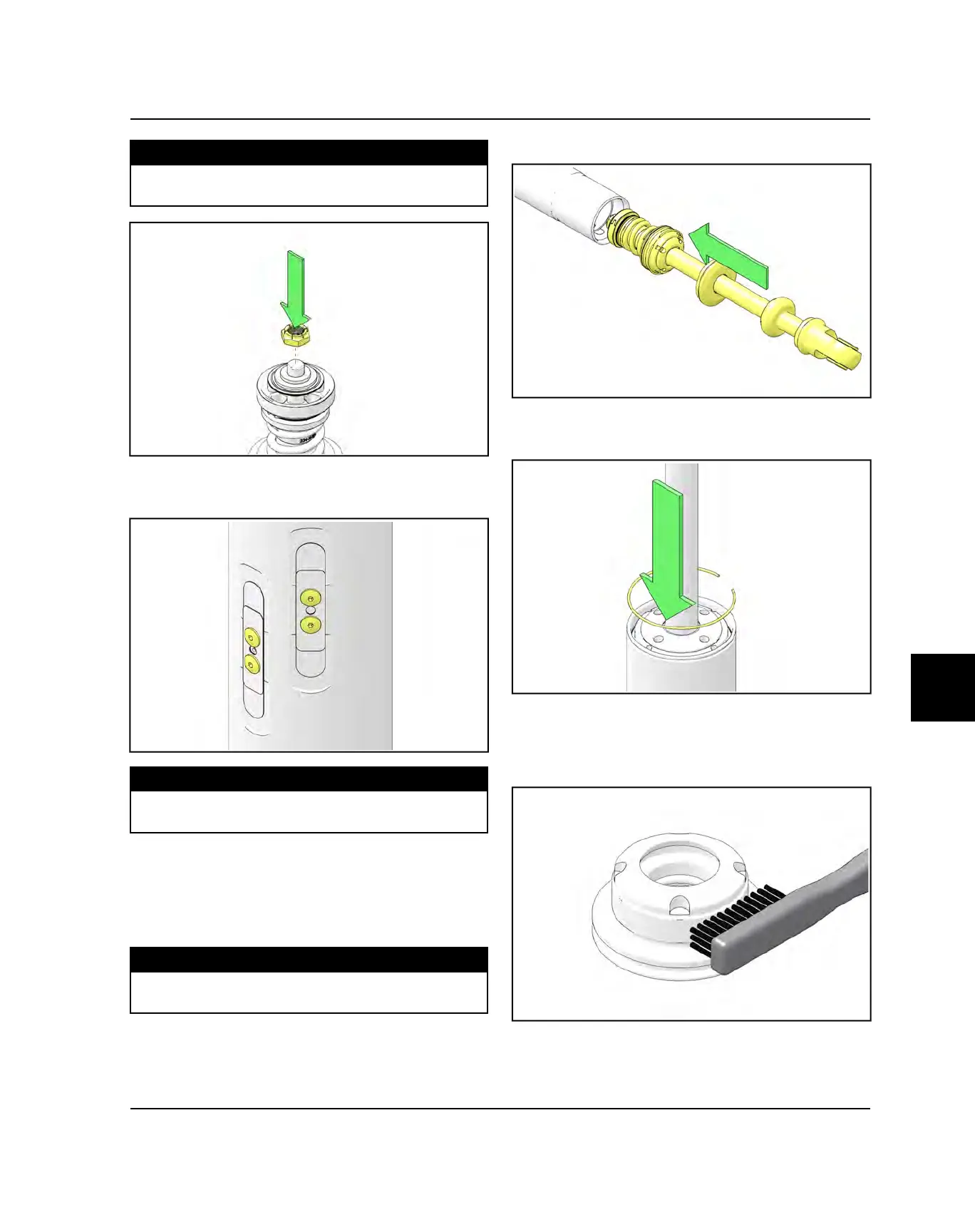

TORQUE
Shaft Nut:
22 ft-lb (30 Nm)
29.Install all Bypass check valves.
30.Use Loctite 242 (Blue) on bypass screws. Torque
bypass screws to specification.
TORQUE
Bypass Screw:
14 in-lb (2 Nm)
31.Install assembled internal body. Ensure that body is
seated properly in body cap.
32.Fill reservoir assembly with oil and install lubricated
IFP.
33.Ensuring oil level is above IFP, install bleed screw
with o-ring. Torque bleed screw to specification.
TORQUE
Bleed Screw:
14 in-lb (2 Nm)
34.Install shaft assembly into inner body.
35.Depress shaft assembly deep enough so that
negative spring assembly is just below inner body
top.
36.Slide bearing assembly into position seated on inner
body.
37.Remove cinch ring from assembly and wipe out all oil
residue.
38.Clean cinch ring thoroughly.
39.Run cinch ring down to the bottom thread on bearing
assembly.
STEERING / SUSPENSION
