9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.

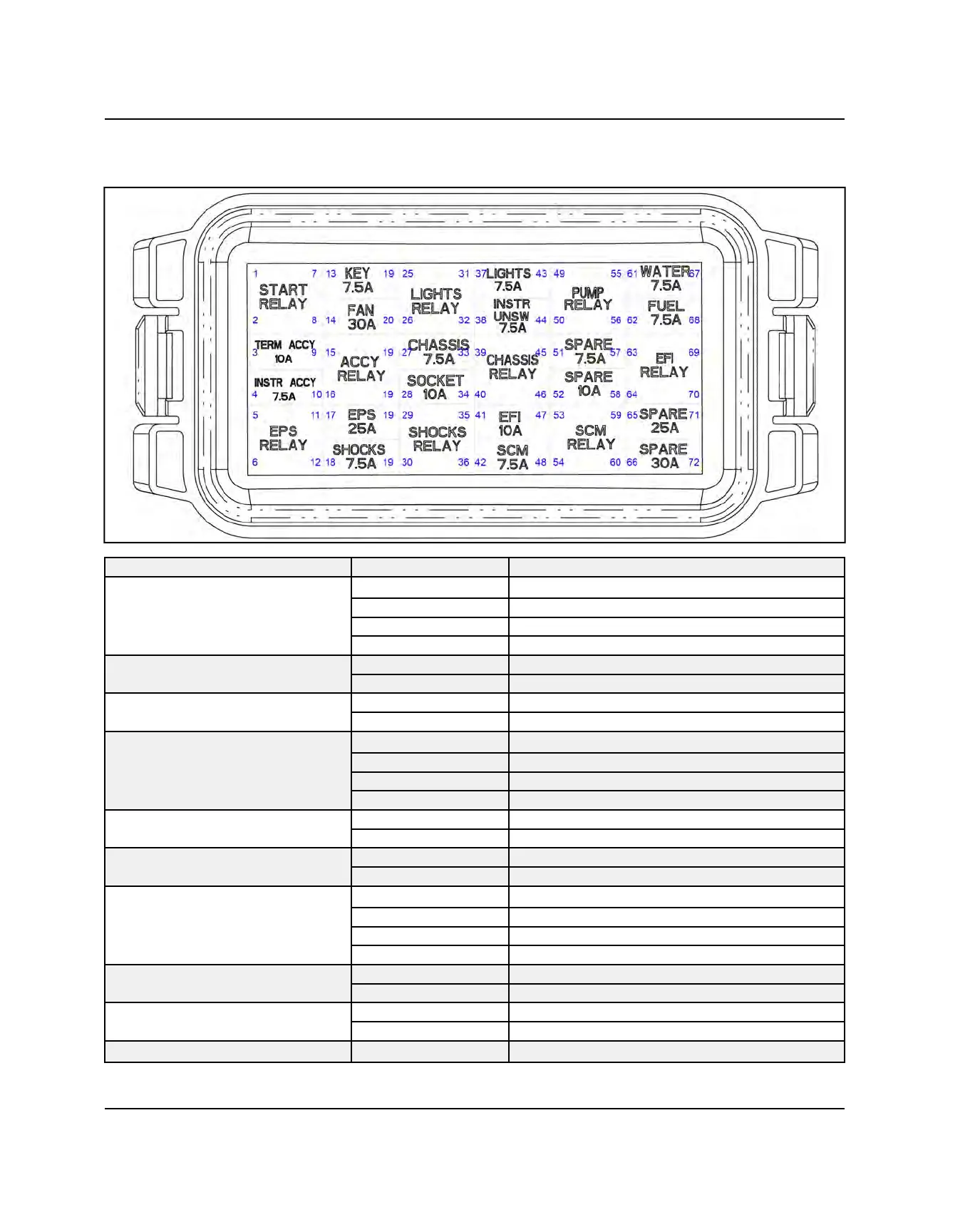

FUSE / RELAY BOX (DYNAMIX)
The fuse box is located below the lower dash, to the left of the EPS unit.
CIRCUIT PIN FUNCTION
Start Relay
1
Coil High
2 Power In
7 Power Out
8 Coil Low
Term Accy 7.5A Fuse
3 Power In
9 Power Out
Instr Accy 7.5A Fuse
4 Power In
10 Power Out
EPS Relay
3
Coil High
4 Power In
11 Power Out
12 Coil Low
Key 7.5A Fuse
13 Power In
19 Power Out
Fan 30A Fuse
14 Power In
20 Power Out
Accy Relay
15
Coil High
16 Power In
21 Power Out
22 Coil Low
EPS 25A Fuse
17 Power In
23 Power Out
Shocks 7.5A Fuse
18 Power In
24 Power Out
Lights Relay
25
Coil High
ELECTRICAL
