MA405I
Port 1
Port 2
Port 3
Port 4
Port 5
Port 6
Port 7
Fi

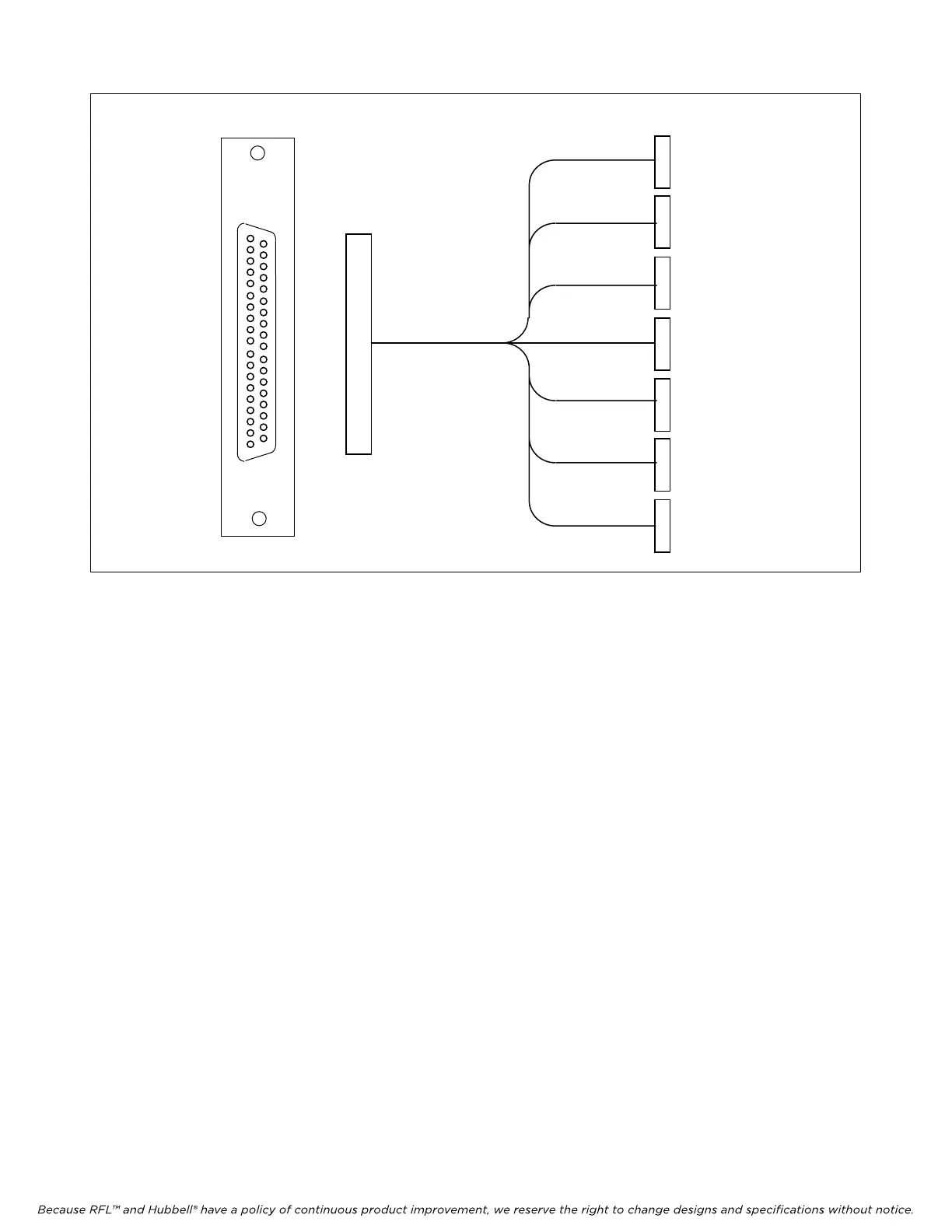

gure 1. MA-405I Modul
e Adapter and Adapter Cable
4. Refer to Figure 2 and Table 1 for the location of DIP switches on the DA-121I module.
5. Set the module address using DIP switches SW1-1 through SW1-6 for the desired remote
address (SCB address).
For remote access, each channel module in the IMUX 2000 must have a distinct
module address. Valid addresses are the numbers “1” to “36”. In most
installations the address will be set to the number of the slot the module is
occupying. Table 2 shows the switch settings for the module address. (Consult
your multiplexermanual for details on using the remote access and configuration
features of the system.)
