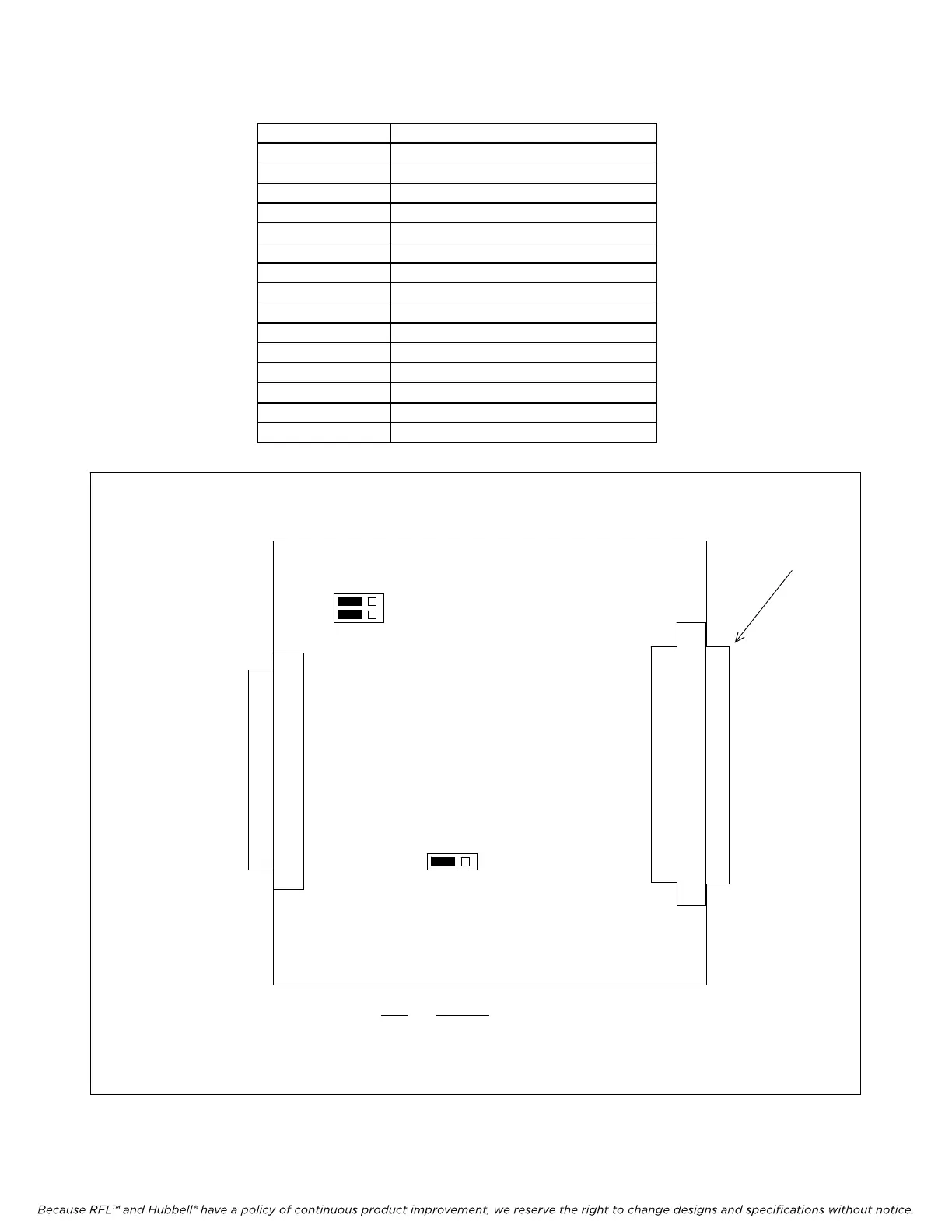

Table 2. Connector J1 pin assignments for the MA-406IB Module Adapter
Pin No. Signal Name
2 SD(A) - Send Data
14 SD(B) - Send Data
15 ST(A) - Send Timing
12 ST(B) - Send Timing
3 RD(A) - Receive Data
16 RD(B) - Receive Data
4 RS(A) - Request To Send (RTS)
19 RS(B) - Request To Send (RTS)
17 RT(A) - Receive Timing
9 RT(B) - Receive Timing
5 CS(A) - Clear To Send
13 CS(B) - Clear To Send
18 Local Loopback
21 Remote Loopback
7, 23 Signal Ground
Item Function
J2 Selects DCE or DTE mode
J3 Selects spare input
Connector J1
(See Table 2
for pin assign-
ments)
J2
DTE DCE
C A
J3
Figure 2. Control
s and indicators, MA-406IB Module Adapter
