INTERFACING THE IMUX 2000 WITH AN RFL 9745 USING C37.94 FIBER

OPTIC MODULES

An IMUX 2000 can be connected to an RFL 9745 equipped with a Short Haul Fiber module (107310)

as shown in Figure 14. There are no jumpers or settings on the 107310 or the MA620, however SW6-5

and SW6-7 on the DS562NC must be set to the OFF position.

Tx Tx Fiber Rx

Rx Rx Fiber Tx

Short

Haul

Fiber

(107310)

RFL 9745 IMUX 2000

MA-620 DS-562NC

No Jumpers

Or Settings

No Jumpers

Or Settings

SW6-5 (OFF)

SW6-7 (OFF)

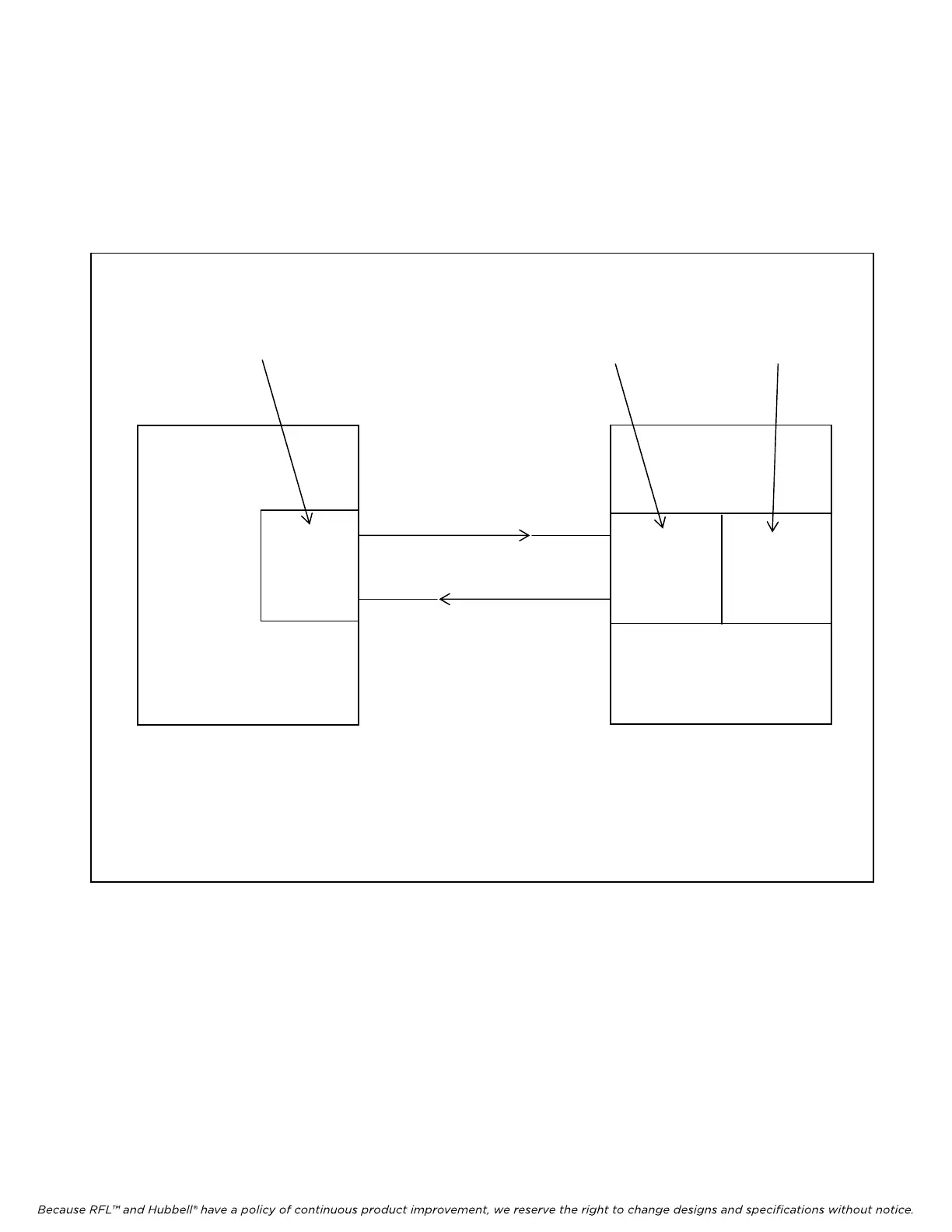

Figure 16. Interfacing the IMUX 2000 with an RFL 9745 using C37.94 Fiber Optic Modules

RFL DS-562NC RFL Electronics Inc.

July 5, 2012 39 (973)

334-3100
