Because RFL™ and Hubbell® have a policy of continuous product improvement, we reserve the right to change designs and speciﬁcations without notice.

MA301A

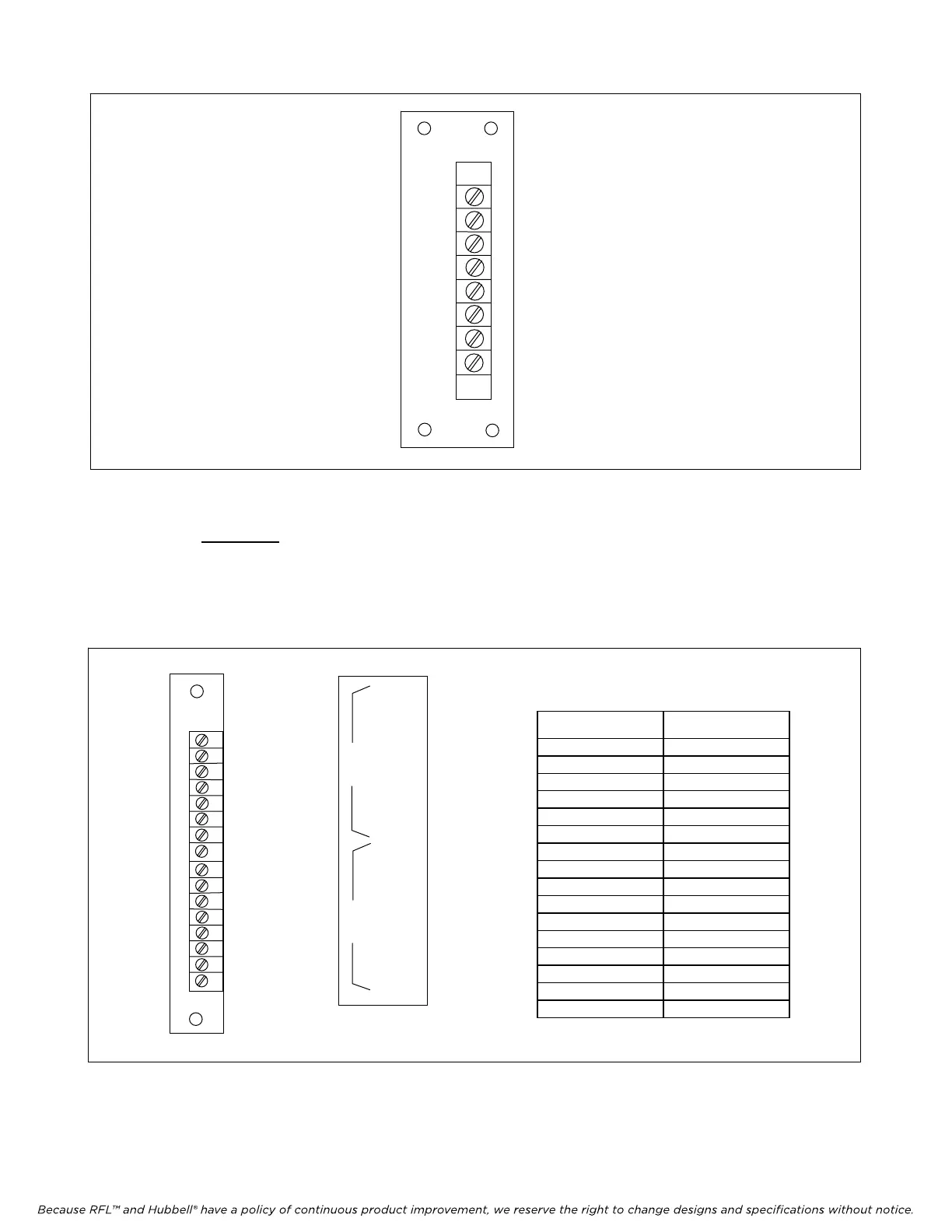

Figure 3. MA-301A Module Adapter

MA-301B The MA-301B provides pluggable terminal block connections for a

single VF-5A module. Audio and signalling connections are available

at the terminal block. No additional SWC or fast transient

protection is provided on this I/O. Refer to Figure 4 for panel view

and terminal connections.

RFL VF-5A RFL Electronics Inc.

June 28, 2005 5 (973)

334-3100

SIGNAL TB#

AIN-1T 1

AIN-1R 2

AOUT-1T 3

AOUT-1R 4

M-LEAD-CH1 5

SB-LEAD-CH1 6

E-LEAD-CH1 7

SG-LEAD-CH1 8

AIN-2T 9

AIN-2R 10

AOUT-2T 11

AOUT-2R 12

M-LEAD-CH2 13

SB-LEAD-CH2 14

E-LEAD-CH2 15

SG-LEAD-CH2 16

Figure 4. MA-301B Module Adapter

CH2 CH1

MA301B

TERMINAL BLOCK

LABEL

1 T

OUT

16 SG
