Because RFL™ and Hubbell® have a policy of continuous product improvement, we reserve the right to change designs and speciﬁcations without notice.

Pin No. MA-322 Pin Functions MA-324 Pin Functions

1 Channel 1 Ring Channel 1 Ring

3 SG - Channel 1 SG - Channel 1

4 SB - Channel 1 SB - Channel 1

5 Channel 2 Ring VF IN Channel 2 Ring

6 Not Used VF OUT Channel 2 Ring

7 SG - Channel 2 SG - Channel 2

8 SB - Channel 2 SB - Channel 2

26 Channel 1 Tip Channel 1 Tip

28 E1 - Channel 1 E1 - Channel 1

29 M1 - Channel 1 M1 - Channel 1

30 Channel 2 Tip VF IN Channel 2 Tip

31 Not Used VF OUT Channel 2 Tip

32 E1 - Channel 2 E1 - Channel 2

33 M1 - Channel 2 M1 - Channel 2

Note: All unlisted pins are not used.

MA-322 MA-324

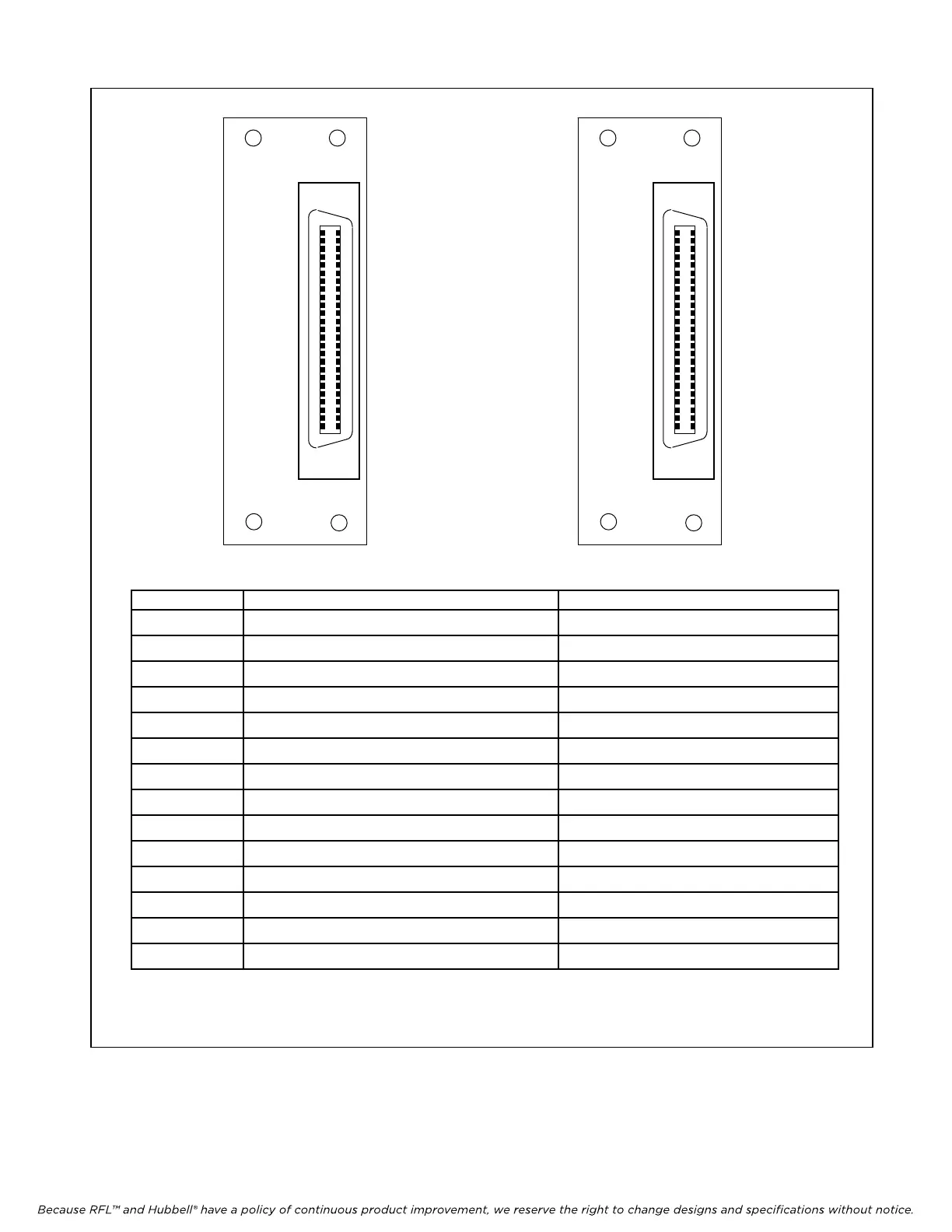

Figure 6. MA-322/MA-324 Module Adapters

RFL VF-5A RFL Electronics Inc.

June 28, 2005 7 (973)

334-3100
