Because RFL™ and Hubbell® have a policy of continuous product improvement, we reserve the right to change designs and speciﬁcations without notice.

MA301A

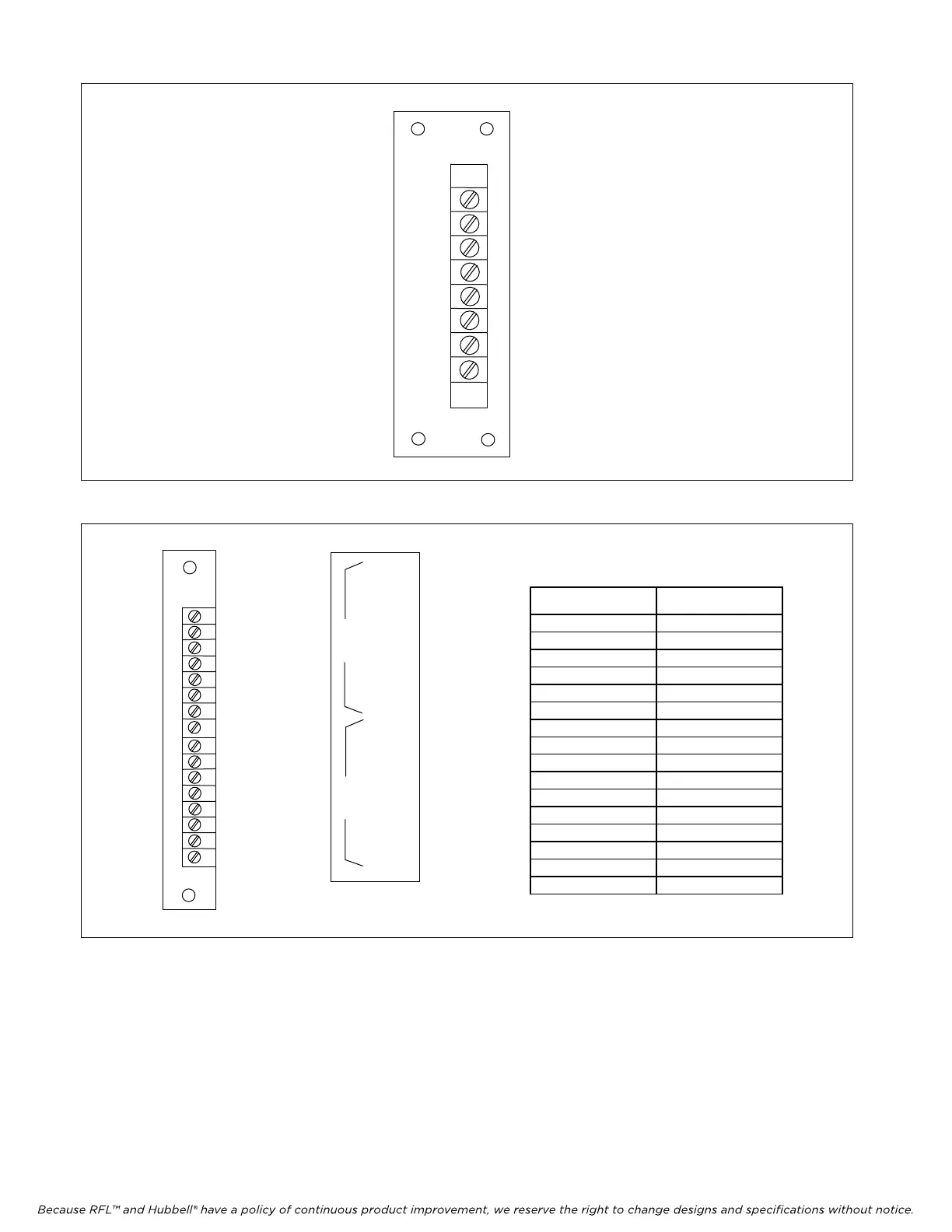

Figure 3. MA-301A, SWC rated 4-w

ire Module Adapter

RFL VF-5C RFL Electronics Inc.

October 8, 2012 7 (973)

334-3100

SIGNAL TB#

AIN-1T 1

AIN-1R 2

AOUT-1T 3

AOUT-1R 4

M-LEAD-CH1 5

SB-LEAD-CH1 6

E-LEAD-CH1 7

SG-LEAD-CH1 8

AIN-2T 9

AIN-2R 10

AOUT-2T 11

AOUT-2R 12

M-LEAD-CH2 13

SB-LEAD-CH2 14

E-LEAD-CH2 15

SG-LEAD-CH2 16

Figure 4. MA-301B Module Adapter

CH2 CH1

MA301B

TERMINAL BLOCK

LABEL

1 T

OUT

16 SG
