RFL VF-5C RFL Electronics Inc.

October 8, 2012 8 (973) 334-3100

SIGNAL TB#

AIN-1T 1

AIN-1R 2

AOUT-1T 3

AOUT-1R 4

M-LEAD-CH1 5

SB-LEAD-CH1 6

E-LEAD-CH1 7

SG-LEAD-CH1 8

AIN-2T 9

AIN-2R 10

AOUT-2T 11

AOUT-2R 12

M-LEAD-CH2 13

SB-LEAD-CH2 14

E-LEAD-CH2 15

SG-LEAD-CH2 16

TERMINAL BLOCK

LABEL

-R

OUT

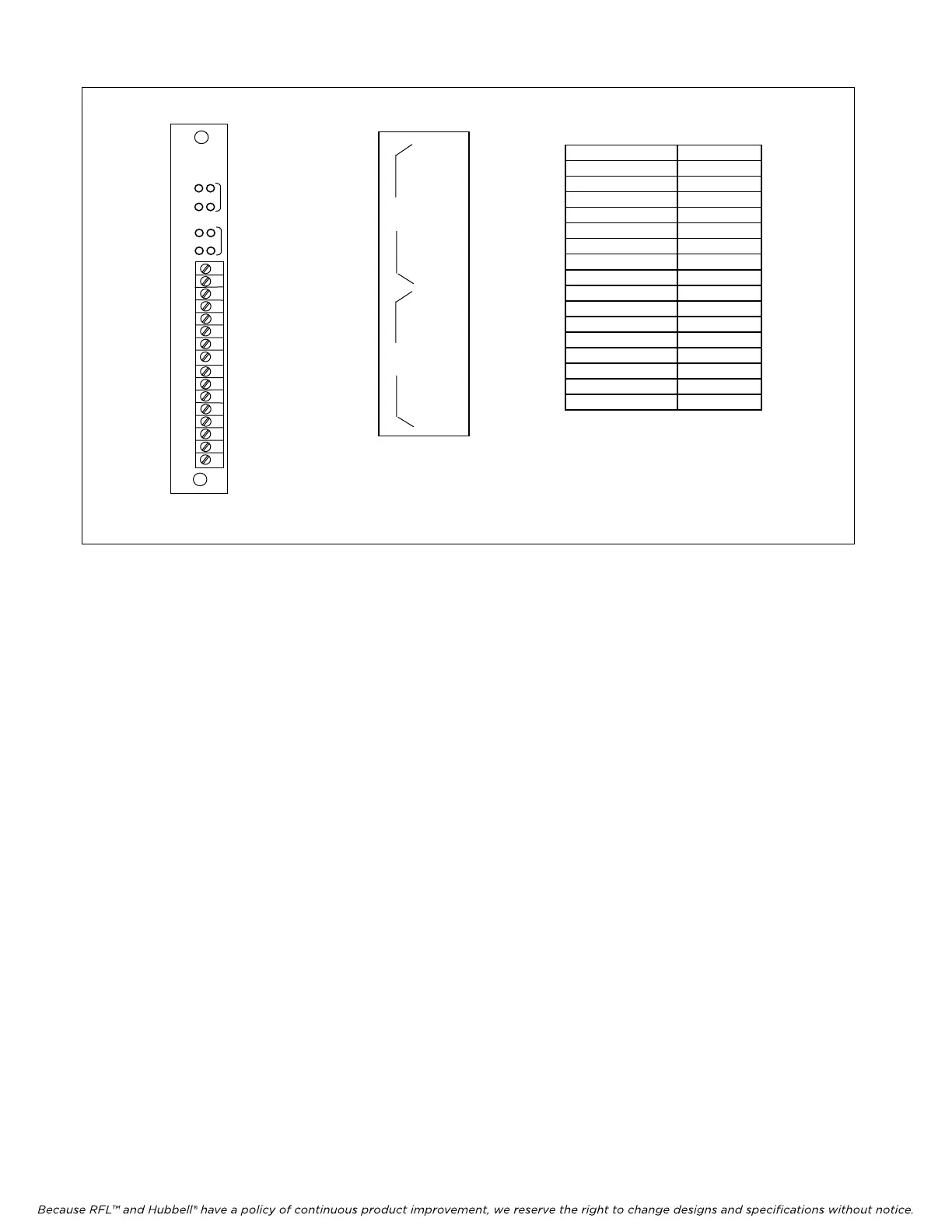

Figure 5. MA-301D Module Adapter

CH2 CH1

MA301D

MONITOR

T R

OUT
