Pin No. MA-322 Pin Functions MA-324 Pin Functions

1 Channel 1 Ring Channel 1 Ring

3 SG - Channel 1 SG - Channel 1

4 SB - Channel 1 SB - Channel 1

5 Channel 2 Ring VF IN Channel 2 Ring

6 Not Used VF OUT Channel 2 Ring

7 SG - Channel 2 SG - Channel 2

8 SB - Channel 2 SB - Channel 2

26 Channel 1 Tip Channel 1 Tip

28 E - Channel 1 E - Channel 1

29 M - Channel 1 M - Channel 1

30 Channel 2 Tip VF IN Channel 2 Tip

31 Not Used VF OUT Channel 2 Tip

32 E - Channel 2 E - Channel 2

33 M - Channel 2 M - Channel 2

Note: All unlisted pins are not used. See Application Note No.14 in the IMUX 2000 Instruction Manual for

additional information on using these I/Os.

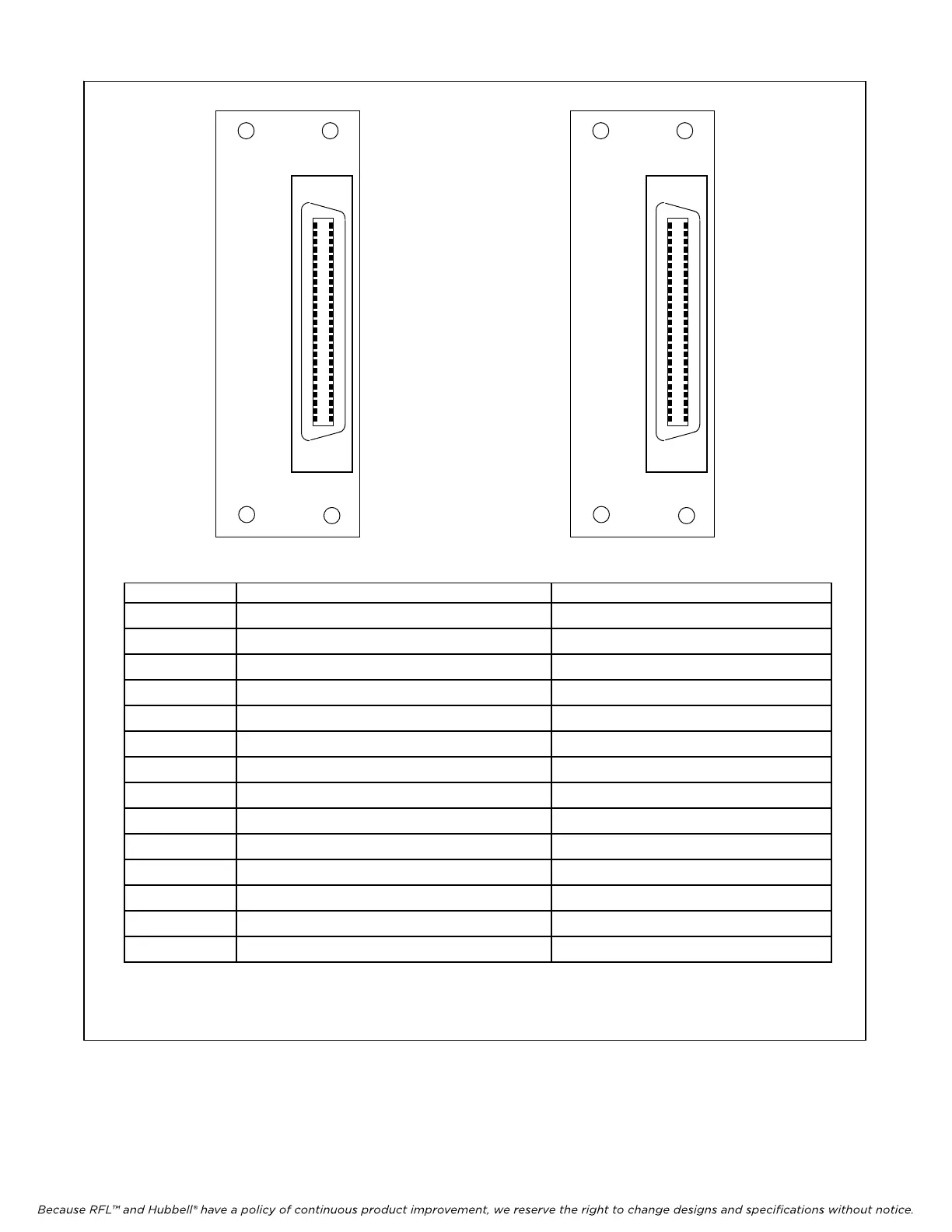

Figure 6. MA-322/MA-324 Module Adapters
