Because RFL™ and Hubbell® have a policy of continuous product improvement, we reserve the right to change designs and speciﬁcations without notice.

External connections

JP25 thru JP36

connects to

Backplane on

IMUX Chassis

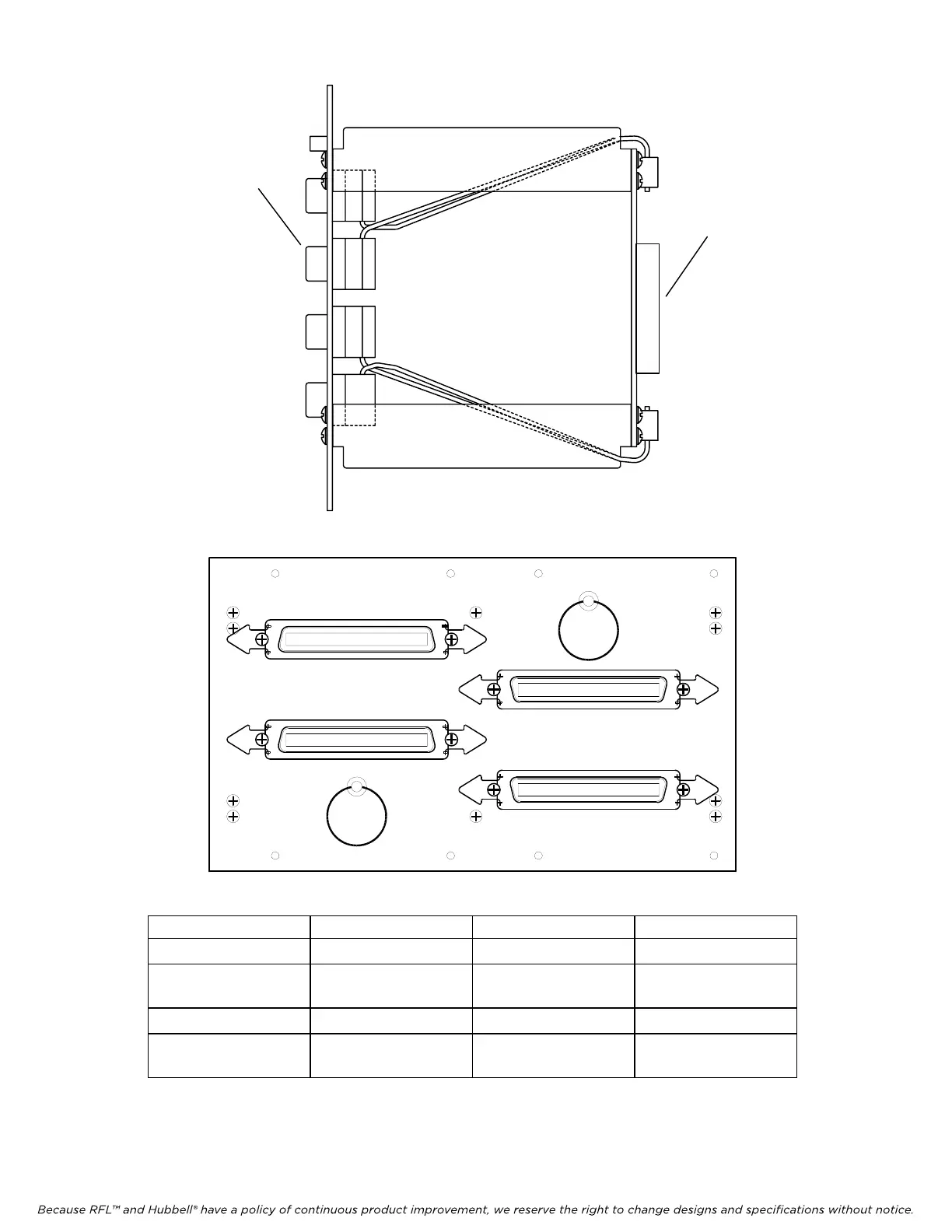

Figure 7. MA-350 Modul

e Adapter, side view

XMT T/R

RCV T1/R1

EG/MB

MA350

Figure 8. MA-350 Module Adapter, rear view

J1 (XMT T/R) J2 (EM) J3 (RCV T1/R1) J4 (EG MB)

Pin 1 thru Pin 24 Pin 1 thru Pin 24 Pin 1 thru Pin 24 Pin 1 thru Pin 24

XMT-R-CH1 thru

XMT-R-CH24

M-CH1 thru M-CH24 RCV-R1-CH1 thru

RCV-R1-CH24

MB-CH1 thru

MB-CH24

Pin 26 thru Pin 49 Pin 26 thru Pin 49 Pin 26 thru Pin 49 Pin 26 thru Pin 49

XMT-T-CH1 thru

XMT-T-CH24

E-CH1 thru E-CH24 RCV-T1-CH1 thru

RCV-T1-CH24

EG-CH1 thru

EG-CH24

Note

: Pin 25 and 50 not used.

RFL VF-5C RFL Electronics Inc.

Oct

ober 8, 2012 10 (973)

334-3100
