Note 5

continued.

DSTT

006

022

006

022

Actel

version 7

Actel

version 7

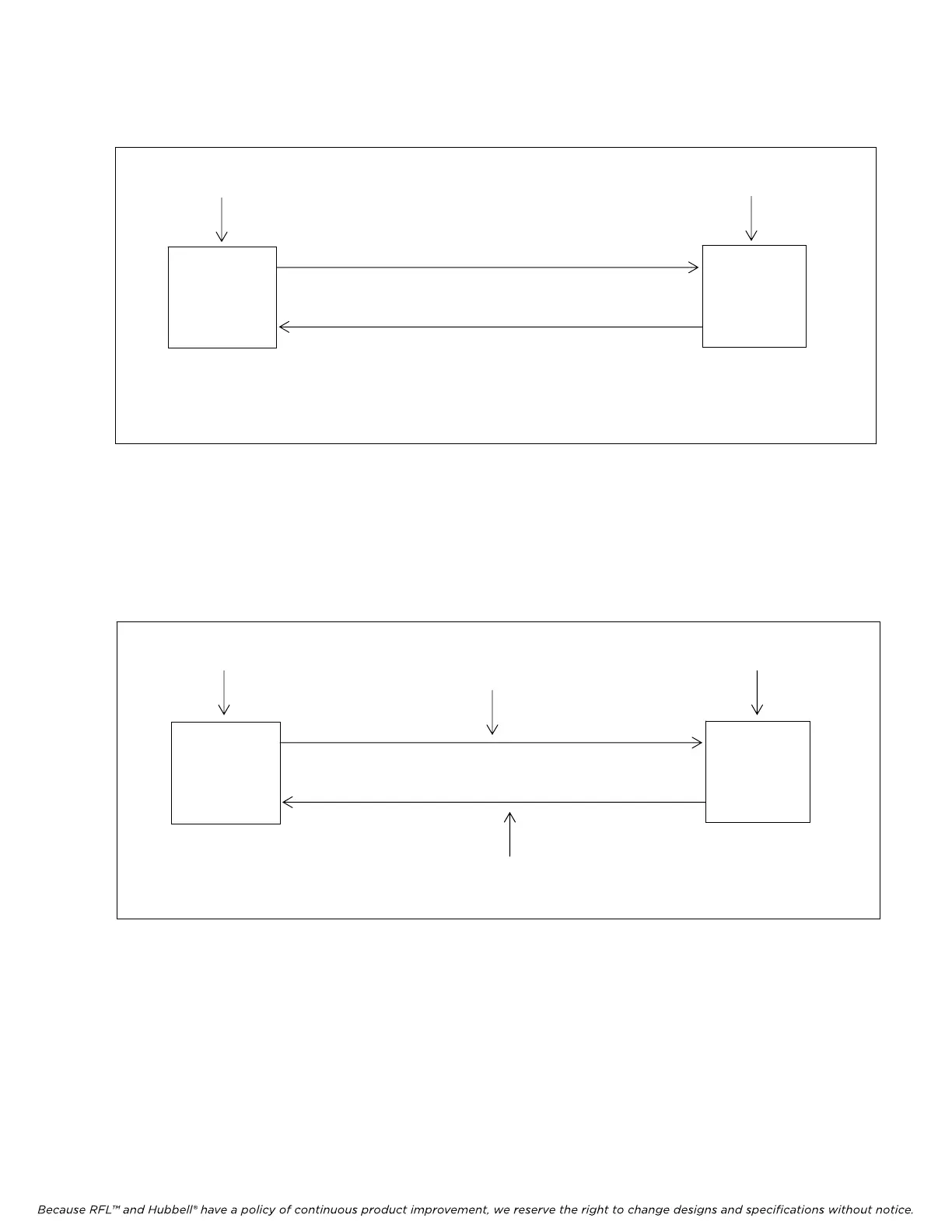

Figure 10. Example of Tx/Rx addressing showing Actel version 7 at both sides (Legal addresses are 0-7, 16-23,

32-39, 48-55)

RFL DS-TT RFL Electronics Inc.

January 31, 2008 24 (973)

334-3100

DSTT

047

023

039

023

Actel

version 13

Actel

version 2

For Tx & Rx addresses, use Table 7

For Tx & Rx addresses, use Table 6

Figure 11. Example of Tx/Rx addressing showing Actel version 13 at one side and Actel version 2 at the other

side (See Tables 6 and 7 for legal addresses)

Note that all systems including TTR4 or earlier on Tx or Rx end operate in Three Frame Mode. This

will alter the Pretrip Timer setting as described in Note 2.

>> Note 5 continues on next page <<
