J1
J2
J3
J4
J5

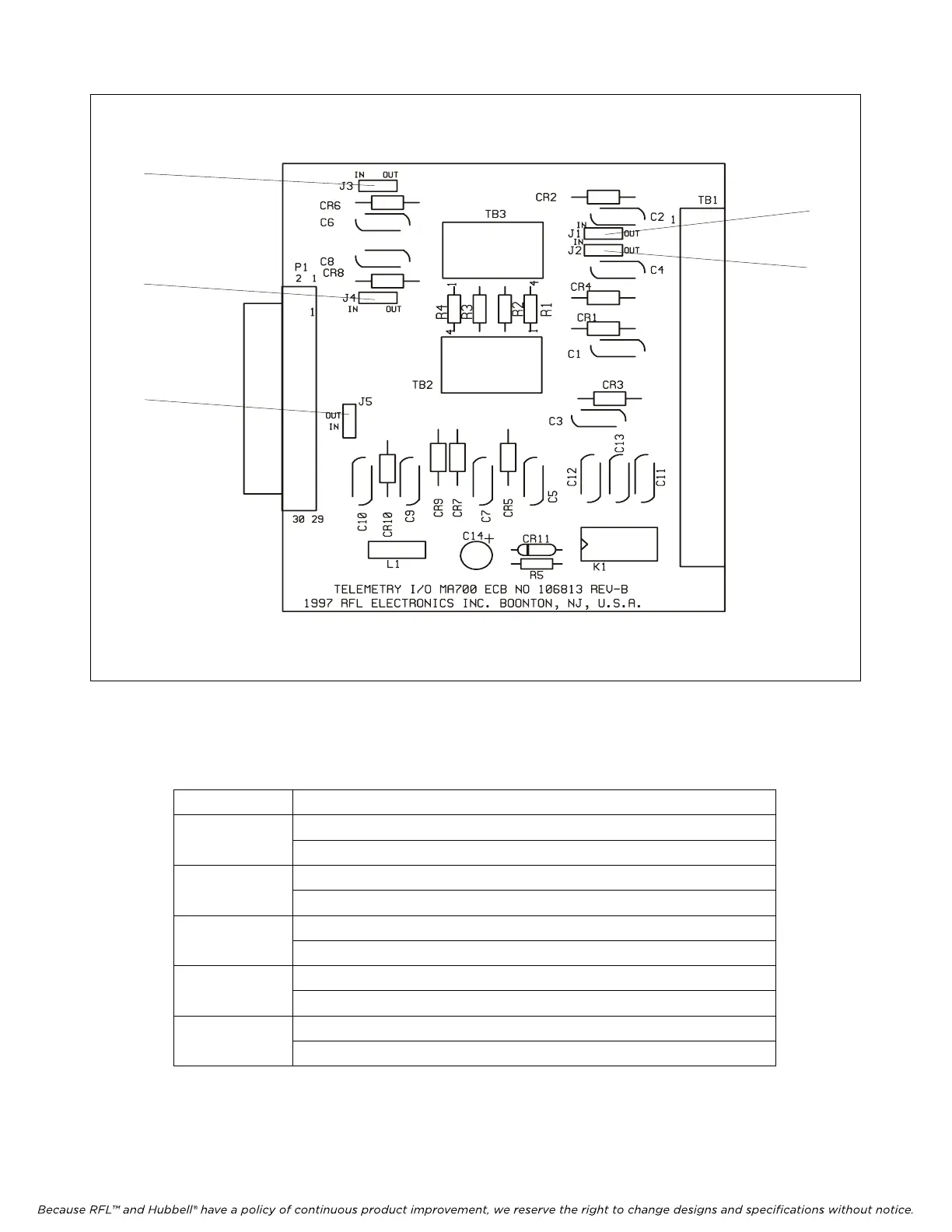

Figure 2. Location of programmable jumpers and external conversion resistors on the MA-700
Table 3. Function of MA-700 programmable jumpers
Jumper Function
J1 IN: Selects single ended input for analog channel 1
OUT: Selects differential input for analog channel 1
J2 IN: Selects single ended input for analog channel 2
OUT: Selects differential input for analog channel 2
J3 IN: Selects single ended input for analog channel 3
OUT: Selects differential input for analog channel 3
J4 IN: Selects single ended input for analog channel 4
OUT: Selects differential input for analog channel 4
J5 IN: Selects single ended input for calibration input
OUT: Sel
ects differential input for calibration input
