ELECTRICAL COMPONENT LAYOUT
B387 2 SM

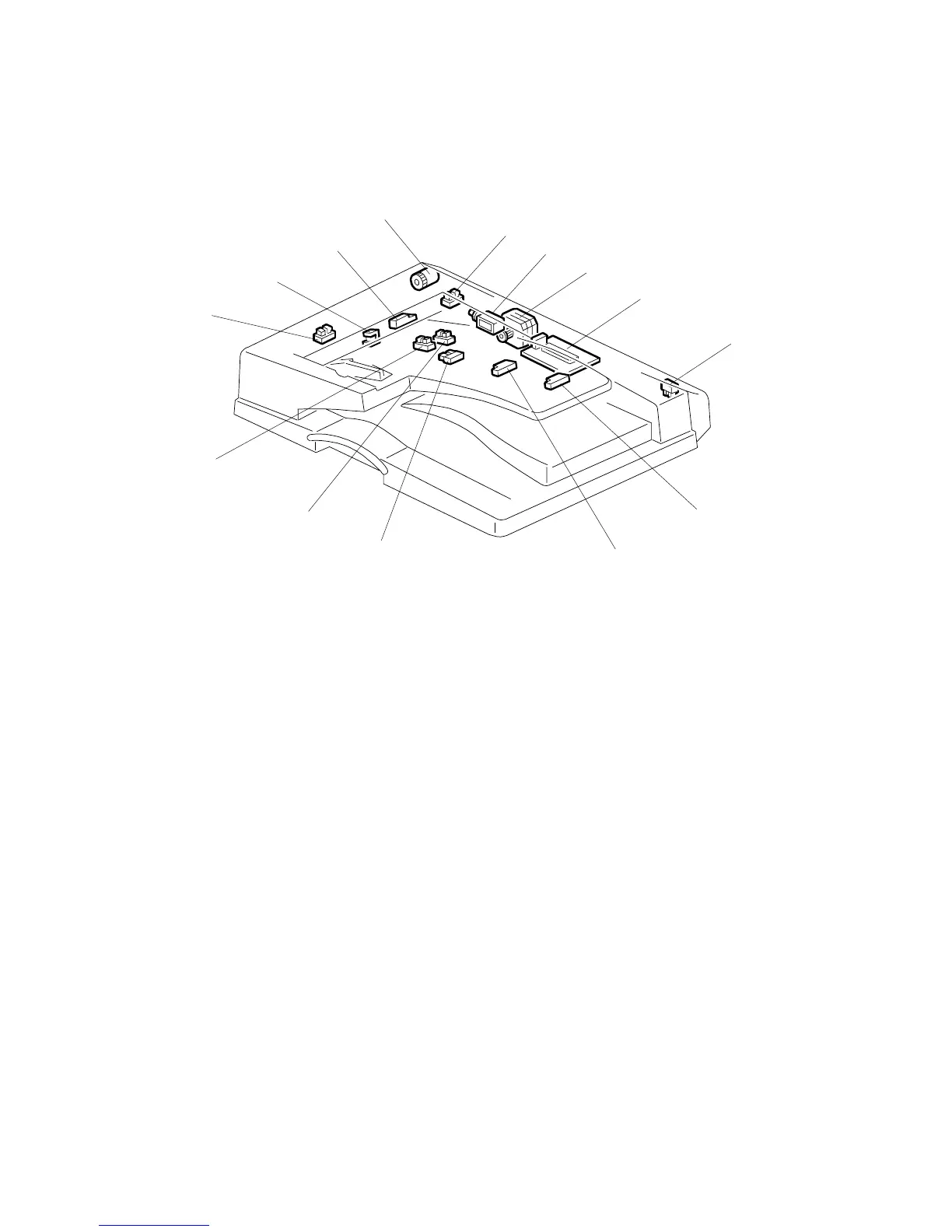

1.2 ELECTRICAL COMPONENT LAYOUT
1. DF feed clutch
2. Feed cover open sensor
3. DF pick-up solenoid
4. DF transport motor
5. DF drive board
6. DF open sensor
7. Original length sensor 2
8. Original length sensor 1
9. Original trailing edge sensor
10. Original width sensor 1
11. Original width sensor 2
12. Original set sensor
13. Stamp solenoid
14. Registration sensor
B387V101.WMF
2
3
4
5
6
1
14
13
12
11
10
9
7
8
