DRIVE LAYOUT
SM 3 B387
Document
Feeder
B387

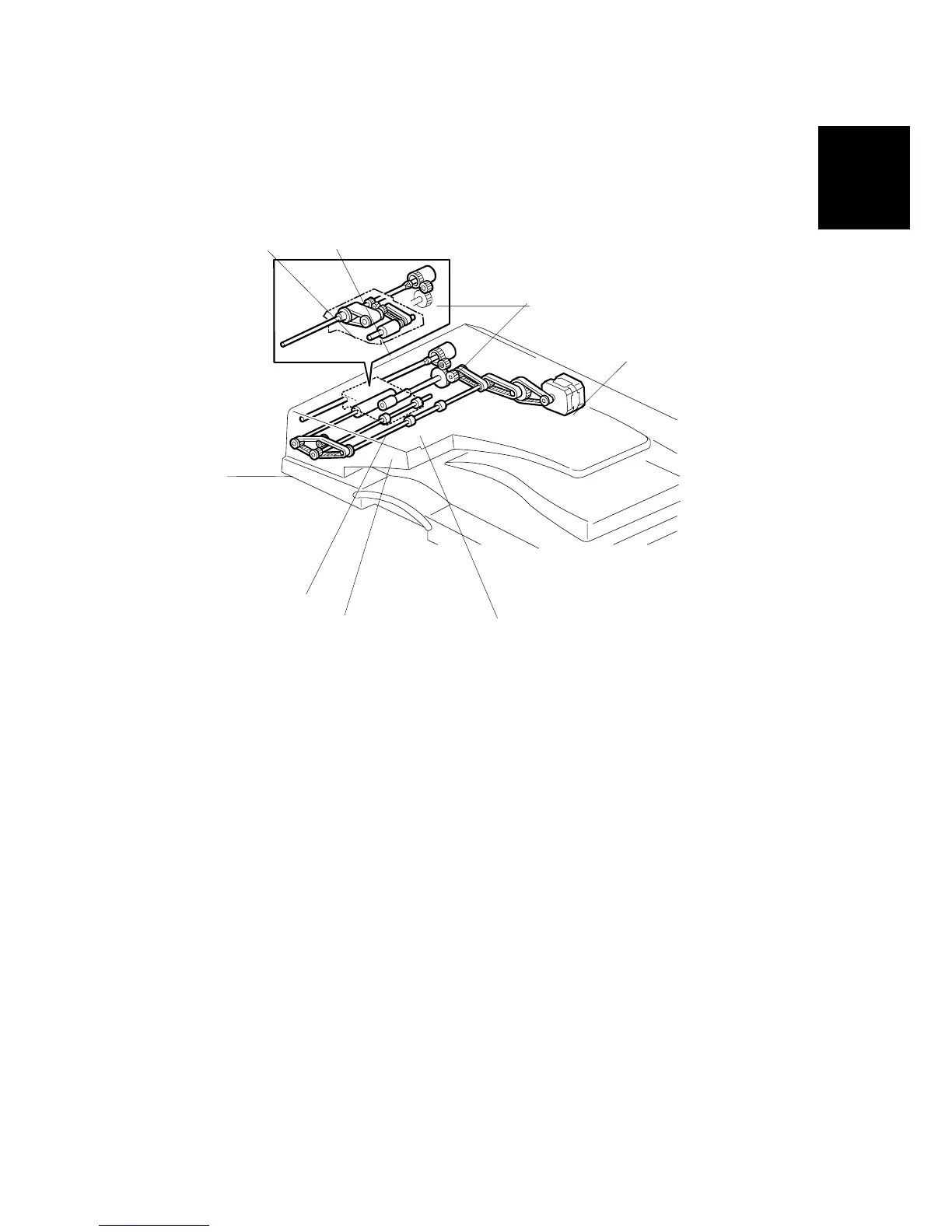

1.3 DRIVE LAYOUT
1. DF feed clutch
2. DF transport motor
3. 2nd transport roller
4. Exit roller
5. Separation roller
6. 1st transport roller
7. Original feed belt
8. Pick-up roller
B387V102.WMF
2
1
8
7
6
5
4
3
