TWO-TRAY PAPER TRAY UNIT INSTALLATION
B121 Series/B259 Series 1-16 SM

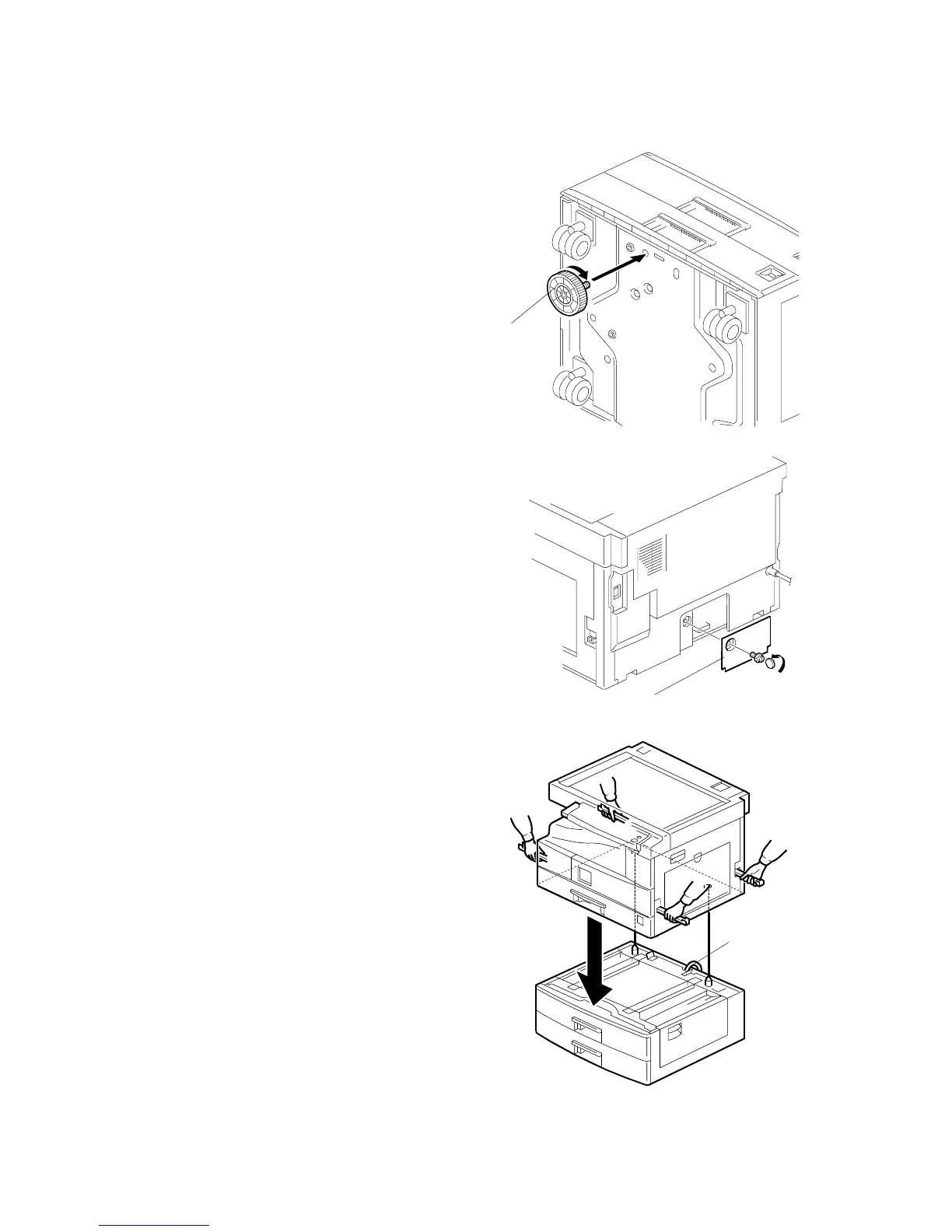

2. Attach the adjuster [A] to the base plate as
shown.
NOTE: If a cabinet is installed, this step is
unnecessary.
. However, you must
:
Remove the casters and the bracket
around the casters before attaching to
a stand.
3. Remove the cover [B] (1 screw).
4. Set the copier on the paper tray unit.
B384I001.WMF
B384I901.WMF
B384I117.WMF
[B]
[C]
[A]
Rev. 04/2004
⇒
CAUTION: Before placing the copier on
the paper tray unit, make sure
that the harness [C] is safe.
The paper tray unit does not
function properly if the
harness is damaged.
