ONE-TRAY PAPER TRAY UNIT INSTALLATION
SM 1-21 B121 Series/B259 Series
Installation

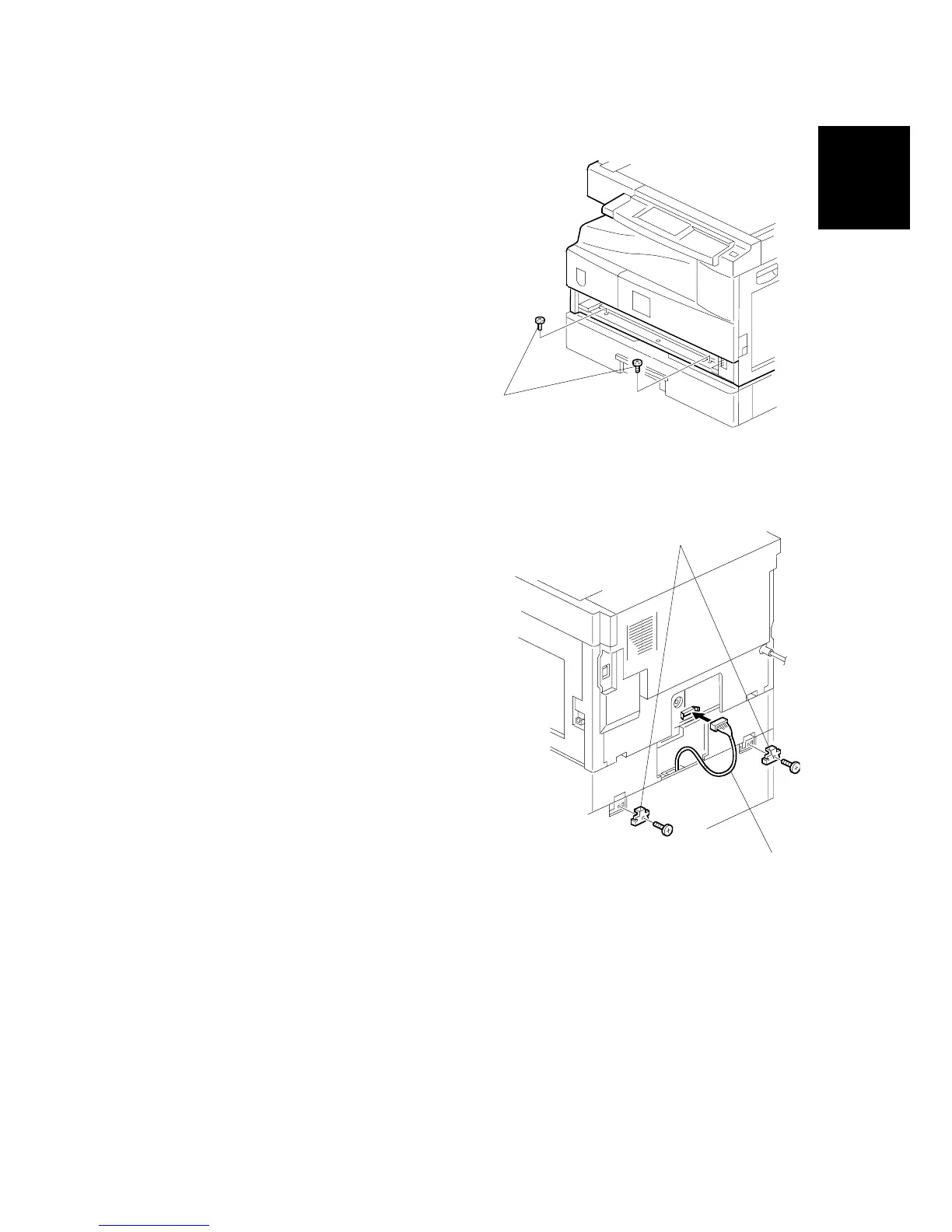

5. Install the two screws [A].
6. Reinstall the tray cassette.
7. Install the two brackets [B]. (1 stepped
screw each).
8. Connect the connecting harness [C] to
the copier.
NOTE: There are cutouts in the plug
on both sides. The left side has
one cutout, and the right side
has two.
9. Reinstall the cover removed in step 2.
10. Load the paper in the paper tray and make full size copies from tray. Check if
the side-to-side and leading edge registrations are correct. If they are not,
adjust the registrations ( 3.13).
B385I118.WMFWMF
B385I902.WMF
[A]
[C]
[B]
