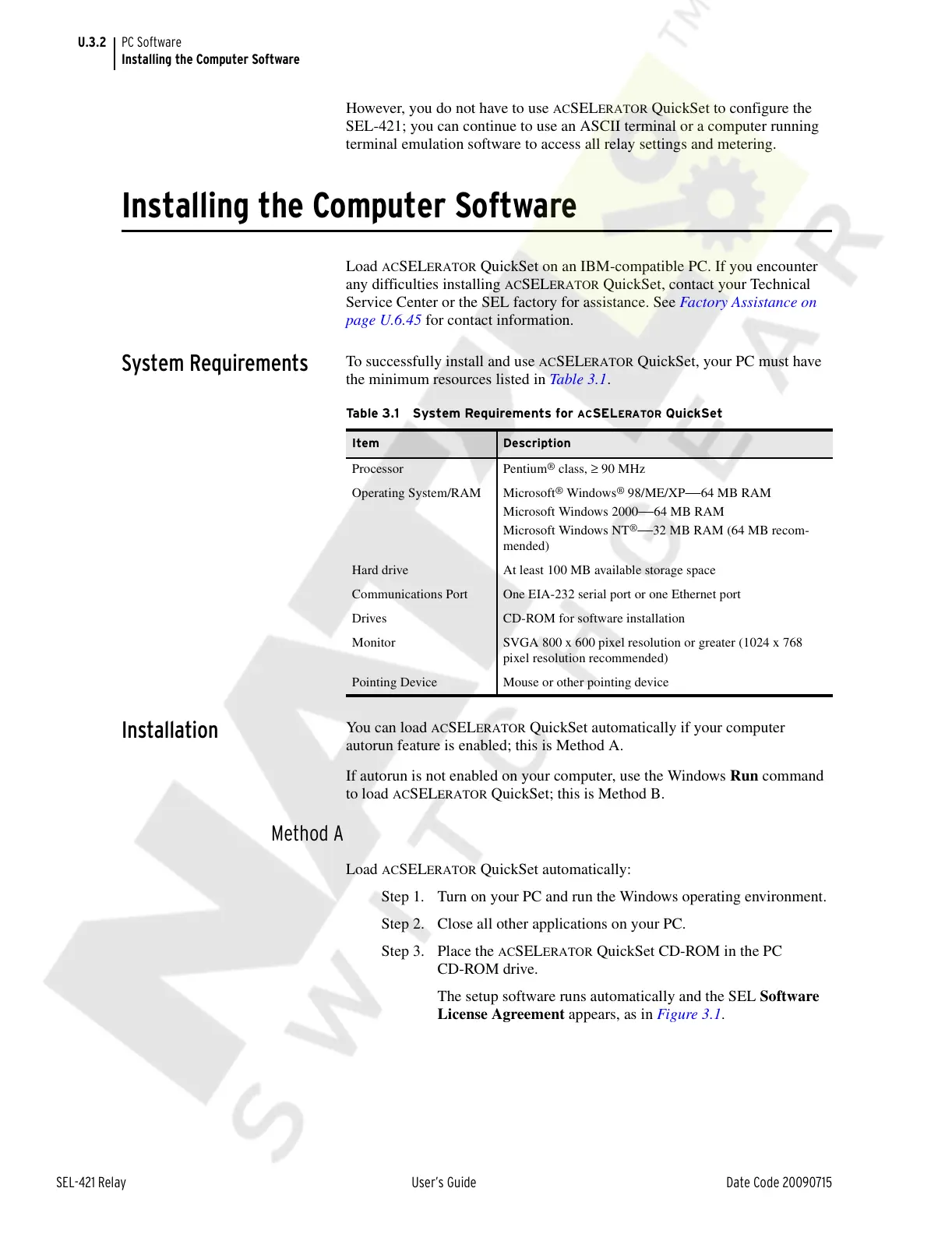

U.3.2
SEL-421 Relay User’s Guide Date Code 20090715
PC Software
Installing the Computer Software
However, you do not have to use ACSELERATOR QuickSet to configure the
SEL-421; you can continue to use an ASCII terminal or a computer running
terminal emulation software to access all relay settings and metering.
Installing the Computer Software
Load ACSELERATOR QuickSet on an IBM-compatible PC. If you encounter
any difficulties installing
ACSELERATOR QuickSet, contact your Technical
Service Center or the SEL factory for assistance. See Factory Assistance on
page U.6.45 for contact information.
System Requirements
To successfully install and use ACSELERATOR QuickSet, your PC must have
the minimum resources listed in Tabl e 3.1.
Installation
You can load ACSELERATOR QuickSet automatically if your computer
autorun feature is enabled; this is Method A.
If autorun is not enabled on your computer, use the Windows Run command
to load
ACSELERATOR QuickSet; this is Method B.
Method A
Load ACSELERATOR QuickSet automatically:
Step 1. Turn on your PC and run the Windows operating environment.
Step 2. Close all other applications on your PC.
Step 3. Place the
ACSELERATOR QuickSet CD-ROM in the PC
CD-ROM drive.
The setup software runs automatically and the SEL Software
License Agreement appears, as in Figure 3.1.
Table 3.1 System Requirements for ACSELERATOR QuickSet
Item Description
Processor Pentium
®
class, ≥ 90 MHz
Operating System/RAM Microsoft
®
Windows
®
98/ME/XP—64 MB RAM
Microsoft Windows 2000
—64 MB RAM
Microsoft Windows NT
®
—32 MB RAM (64 MB recom-
mended)
Hard drive At least 100 MB available storage space
Communications Port One EIA-232 serial port or one Ethernet port
Drives CD-ROM for software installation
Monitor SVGA 800 x 600 pixel resolution or greater (1024 x 768
pixel resolution recommended)
Pointing Device Mouse or other pointing device
