U.6.41
Date Code 20090715 User’s Guide SEL-421 Relay
Testing and Troubleshooting

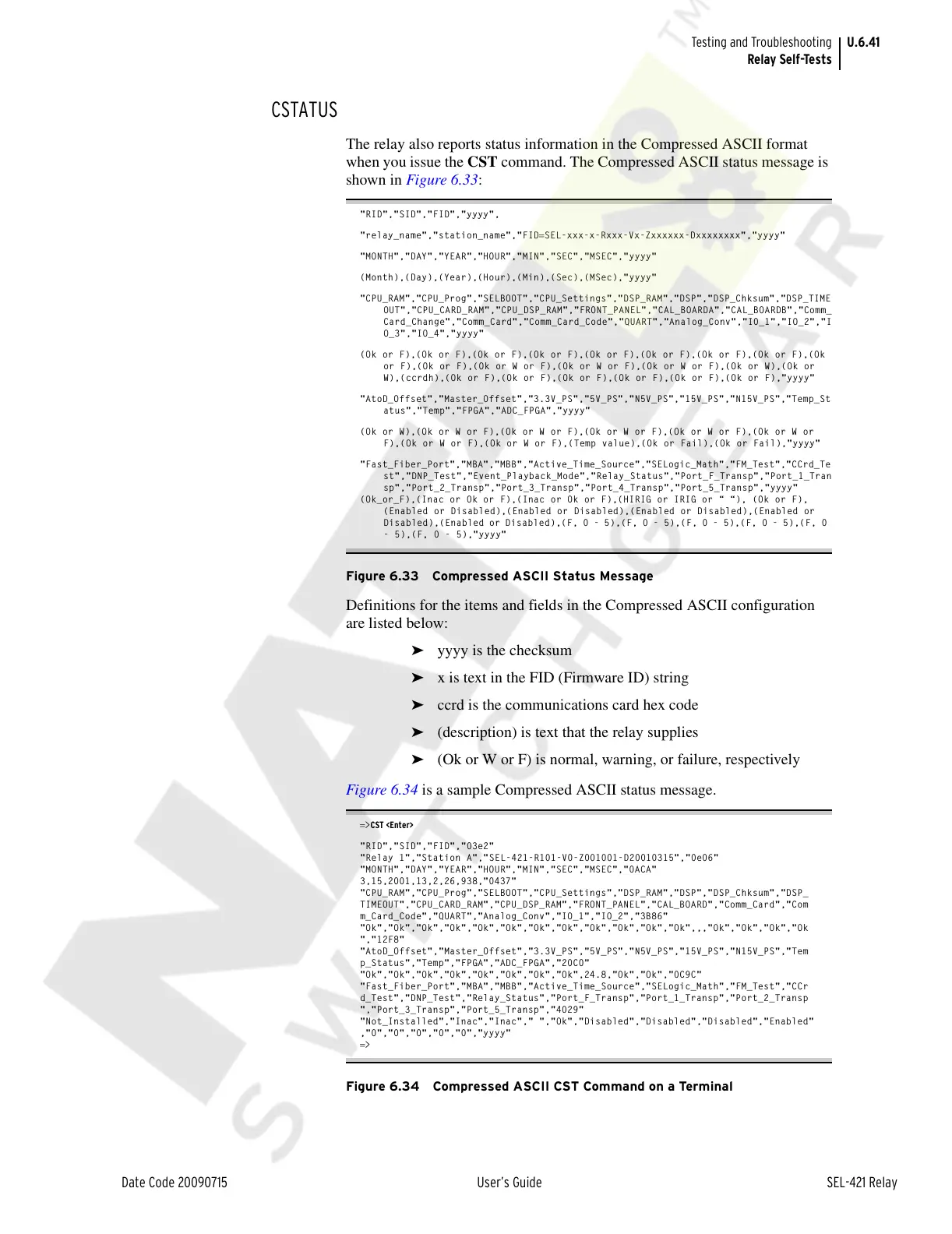

Relay Self-Tests
CSTATUS
The relay also reports status information in the Compressed ASCII format
when you issue the CST command. The Compressed ASCII status message is
shown in Figure 6.33:
"RID","SID","FID","yyyy",
"relay_name","station_name","FID=SEL-xxx-x-Rxxx-Vx-Zxxxxxx-Dxxxxxxxx","yyyy"
"MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC","yyyy"
(Month),(Day),(Year),(Hour),(Min),(Sec),(MSec),"yyyy"
"CPU_RAM","CPU_Prog","SELBOOT","CPU_Settings","DSP_RAM","DSP","DSP_Chksum","DSP_TIME
OUT","CPU_CARD_RAM","CPU_DSP_RAM","FRONT_PANEL","CAL_BOARDA","CAL_BOARDB","Comm_
Card_Change","Comm_Card","Comm_Card_Code","QUART","Analog_Conv","I0_1","IO_2","I
O_3","IO_4","yyyy"
(Ok or F),(Ok or F),(Ok or F),(Ok or F),(Ok or F),(Ok or F),(Ok or F),(Ok or F),(Ok
or F),(Ok or F),(Ok or W or F),(Ok or W or F),(Ok or W or F),(Ok or W),(Ok or
W),(ccrdh),(Ok or F),(Ok or F),(Ok or F),(Ok or F),(Ok or F),(Ok or F),"yyyy"
"AtoD_Offset","Master_Offset","3.3V_PS","5V_PS","N5V_PS","15V_PS","N15V_PS","Temp_St
atus","Temp","FPGA","ADC_FPGA","yyyy"
(Ok or W),(Ok or W or F),(Ok or W or F),(Ok or W or F),(Ok or W or F),(Ok or W or
F),(Ok or W or F),(Ok or W or F),(Temp value),(Ok or Fail),(Ok or Fail),"yyyy"
"Fast_Fiber_Port","MBA","MBB","Active_Time_Source","SELogic_Math","FM_Test","CCrd_Te
st","DNP_Test","Event_Playback_Mode","Relay_Status","Port_F_Transp","Port_1_Tran
sp","Port_2_Transp","Port_3_Transp","Port_4_Transp","Port_5_Transp","yyyy"
(Ok_or_F),(Inac or Ok or F),(Inac or Ok or F),(HIRIG or IRIG or “ “), (Ok or F),
(Enabled or Disabled),(Enabled or Disabled),(Enabled or Disabled),(Enabled or
Disabled),(Enabled or Disabled),(F, 0 - 5),(F, 0 - 5),(F, 0 - 5),(F, 0 - 5),(F, 0
- 5),(F, 0 - 5),"yyyy"
Figure 6.33 Compressed ASCII Status Message
Definitions for the items and fields in the Compressed ASCII configuration
are listed below:
➤ yyyy is the checksum
➤ x is text in the FID (Firmware ID) string
➤ ccrd is the communications card hex code
➤ (description) is text that the relay supplies
➤ (Ok or W or F) is normal, warning, or failure, respectively
Figure 6.34 is a sample Compressed ASCII status message.
=>CST <Enter>
"RID","SID","FID","03e2"
"Relay 1","Station A","SEL-421-R101-V0-Z001001-D20010315","0e06"
"MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC","0ACA"
3,15,2001,13,2,26,938,"0437"
"CPU_RAM","CPU_Prog","SELBOOT","CPU_Settings","DSP_RAM","DSP","DSP_Chksum","DSP_
TIMEOUT","CPU_CARD_RAM","CPU_DSP_RAM","FRONT_PANEL","CAL_BOARD","Comm_Card","Com
m_Card_Code","QUART","Analog_Conv","IO_1","IO_2","3B86"
"Ok","Ok","Ok","Ok","Ok","Ok","Ok","Ok","Ok","Ok","Ok","Ok",,,"Ok","Ok","Ok","Ok
","12F8"
"AtoD_Offset","Master_Offset","3.3V_PS","5V_PS","N5V_PS","15V_PS","N15V_PS","Tem
p_Status","Temp","FPGA","ADC_FPGA","20C0"
"Ok","Ok","Ok","Ok","Ok","Ok","Ok","Ok",24.8,"Ok","Ok","0C9C"
"Fast_Fiber_Port","MBA","MBB","Active_Time_Source","SELogic_Math","FM_Test","CCr
d_Test","DNP_Test","Relay_Status","Port_F_Transp","Port_1_Transp","Port_2_Transp
","Port_3_Transp","Port_5_Transp","4029"
"Not_Installed","Inac","Inac"," ","Ok","Disabled","Disabled","Disabled","Enabled"
,"0","0","0","0","0","yyyy"
=>
Figure 6.34 Compressed ASCII CST Command on a Terminal
