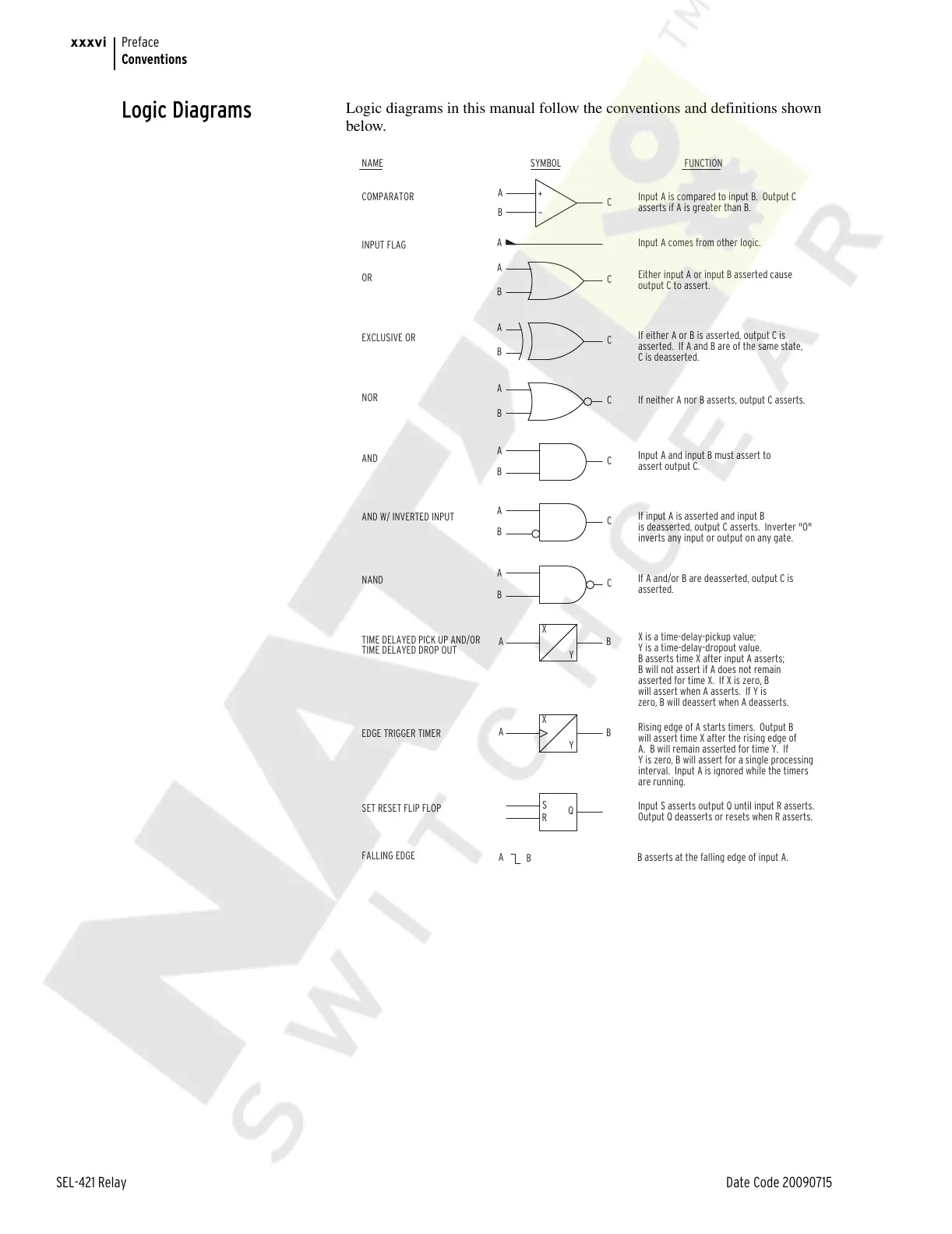

NAME SYMBOL FUNCTION
COMPARATOR
OR
AND
NAND
TIME DELAYED PICK UP AND/OR
TIME DELAYED DROP OUT
EDGE TRIGGER TIMER
SET RESET FLIP FLOP
Input A is compared to input B. Output C
asserts if A is greater than B.
Either input A or input B asserted cause
output C to assert.
Input A and input B must assert to
assert output C.
If A and/or B are deasserted, output C is
asserted.
X is a time-delay-pickup value;
Y is a time-delay-dropout value.
B asserts time X after input A asserts;
B will not assert if A does not remain
asserted for time X. If X is zero, B
will assert when A asserts. If Y is
zero, B will deassert when A deasserts.
Rising edge of A starts timers. Output B
will assert time X after the rising edge of
A. B will remain asserted for time Y. If
Y is zero, B will assert for a single processing
interval. Input A is ignored while the timers
are running.
Input S asserts output Q until input R asserts.
Output Q deasserts or resets when R asserts.
EXCLUSIVE OR
B
A
If either A or B is asserted, output C is
asserted. If A and B are of the same state,
C is deasserted.
C
NOR
B
A
If neither A nor B asserts, output C asserts.
C
AND W/ INVERTED INPUT
B
A
If input A is asserted and input B
is deasserted, output C asserts. Inverter "O"
inverts any input or output on any gate.
C
INPUT FLAG
Input A comes from other logic.
A
—
+
B asserts at the falling edge of input A.
FALLING EDGE
A
B
