Description
3.3 Power Modules
Inverter with CU230P-2 Control Units
30 Operating Instructions, 11/2013, FW V4.6.6, A5E02430659B AG
PM250, 3 AC 400 V - Application areas with line regeneration
The PM250 Power Module is available without a filter or with an integrated class A line filter
with degree of protection IP20. The PM250 permits dynamic braking with energy feedback
into the line supply.
Range of order numbers, IP20: 6SL3225-0BE …
Frame size
FSC
FSD
FSE
FSF
Power range (kW)
7.5 … 15
18.5 … 30
37 … 45
55 … 90
PM260, 3 AC 690 V - Application areas with line regeneration
The PM260 Power Module is available without a filter or with an integrated class A line filter
with degree of protection IP20. A sine-wave filter is fitted to the motor. The PM260 permits
dynamic braking with energy feedback into the line supply.
Range of order numbers, IP20: 6SL3225-0BH…
Frame size
FSD
FSF
Power range (kW)
11 … 18.5
30 … 55
3.3.1.2
Accessories for installation and shielding

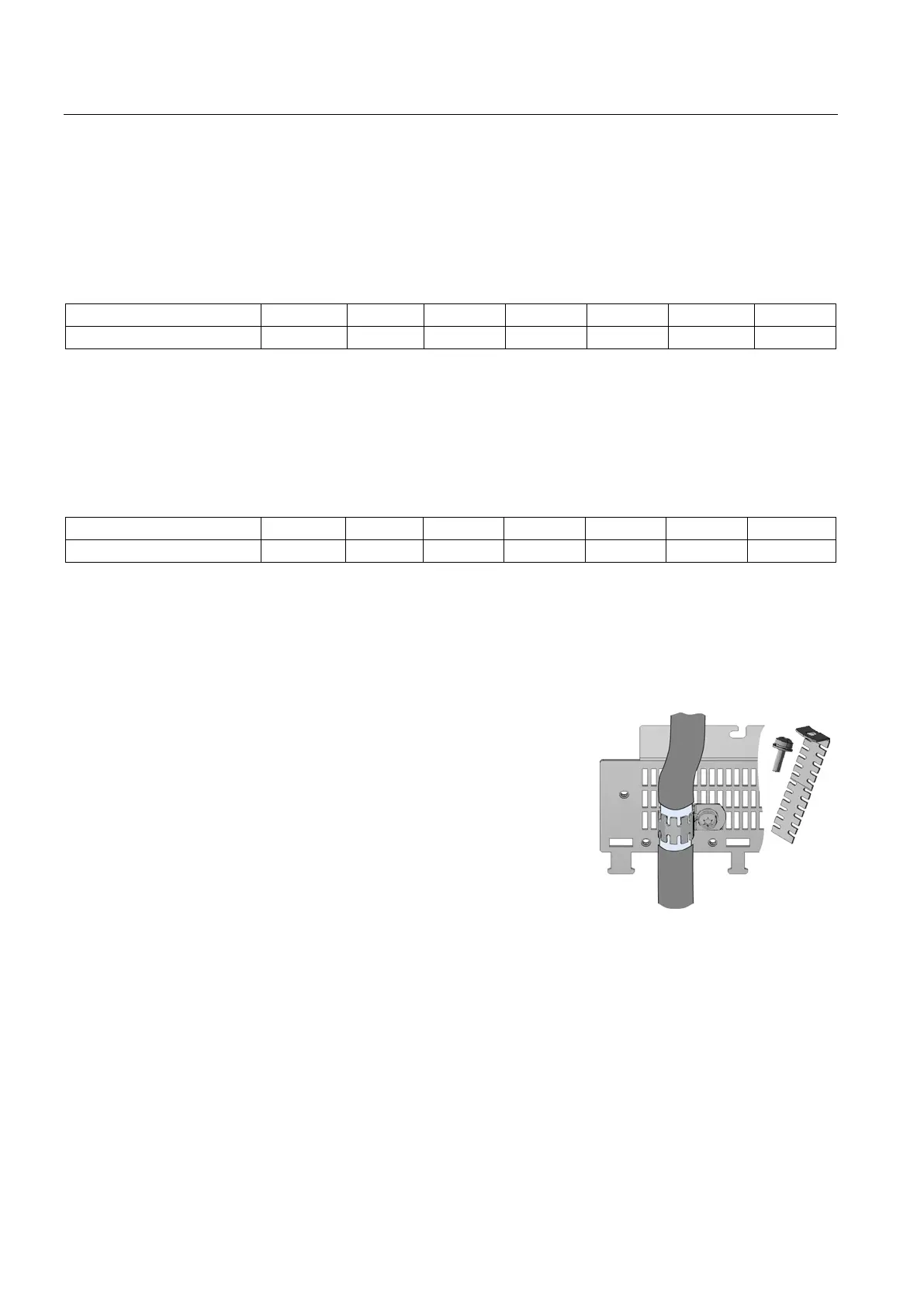

Shield connection kit
The shield connection kit offers optimum shield support
and strain relief for line and motor cables. It comprises
a shield plate with serrated strips with screws.
Shield connection kits are available for frame sizes
FSA
… FSF.
Shield connection kit for PM230 and PM240-2
The shield connection kit is included in the Power
Module scope of supply.
PM240, PM250 and PM260 shield connection kits
The shield connection kit is an optional component and
must be ordered separately.
Adapter for rail mounting for PM240, PM250 and PM260, frame sizes FSA and FSB
You can use the adapter for rail mounting to mount the Power Module onto two mounting
rails with a center-to-center distance of 100 mm.
