Siemens SINAMICS G120 - Wiring Examples for the Factory Settings

Commissioning
5.2 Preparing for commissioning
Inverter with CU230P-2 Control Units
Operating Instructions, 11/2013, FW V4.6.6, A5E02430659B AG
75
5.2.1
Wiring examples for the factory settings
If you wish to use the factory setting of your inverter, then you must wire the terminal strip of
your inverter as shown in the following examples.

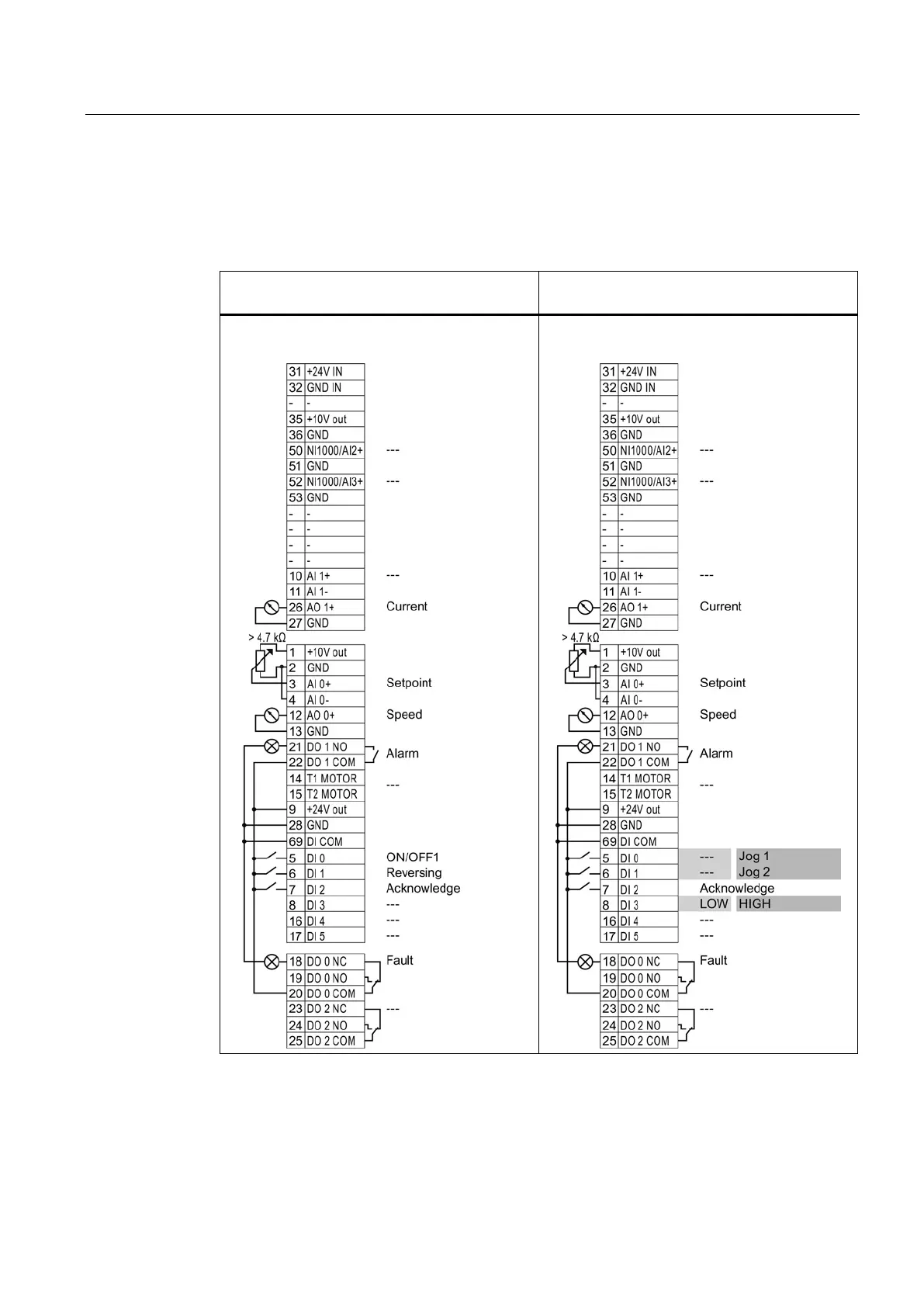

Pre-assignment of the terminal strip for CU230P-
2 HVAC and CU230P-2 CAN
Pre-assignment of the terminal strip for CU230P-
2 DP and CU230P-2 PN
DI 3 = LOW: PROFIdrive telegram 1
DI 3 = HIGH: Jogging
