Technical data
12.2 Technical data, Power Modules
Inverter with CU230P-2 Control Units
400 Operating Instructions, 11/2013, FW V4.6.6, A5E02430659B AG
Table 12- 35 PM240-2, PT, Frame Sizes C, 3 AC 380 V … 480 V
Order No. - without filter
Order No. - with filter
6SL3211…
6SL3211…
...1PE23-3UL0
...1PE23-3AL0
LO power
LO input current
LO output current
15.0 kW
39.9 A
32.0 A
HO power
HO input current
HO output current
11.0 kW
36.0 A
26.0 A
Fuse according to IEC
Fuse according to UL
3NE 1817-0 (50 A)
50 A Class J
Power losses without filter
Power losses with filter
kW
1)
kW
1)
Required cooling air flow
l/s
Cross section of line and motor cables 6 …16 mm
2
10 … 6 AWG
Tightening torque for line and motor cables
1.3 Nm / 12 lbf in
Weight without filter
Weight with filter
5.8 kg
6.3 kg
1)
0.08 kW via heat sink;
2) 0.1 kW via heat sink
12.2.4
Technical data, PM250
12.2.4.1
High Overload - Low Overload
Permissible inverter overload
The inverters have different load capabilities, "High Overload" and "Low Overload",
depending on the expected.

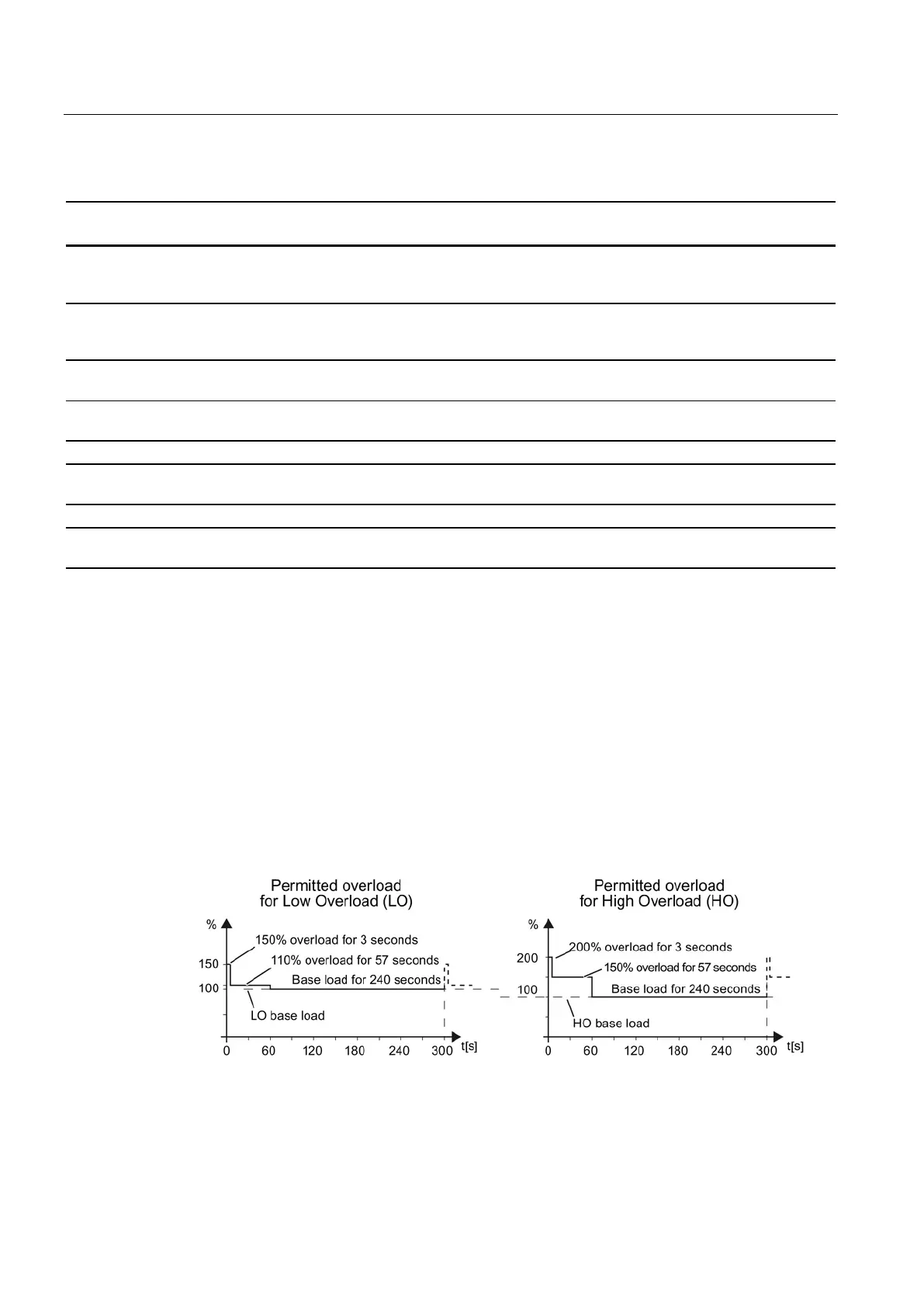

Figure 12-4 Load cycles, Low Overload" and "High Overload"
