3.4 System components for the Power Modules
Inverter with CU230P-2 Control Units
34 Operating Instructions, 11/2013, FW V4.6.6, A5E02430659B AG
Line reactors for PM240-2
Power Module 6SL321-…
Power
Line reactor
FSA …1PE11-8L0, …1PE12-3L0,
…1PE13-2L0
0.55 kW … 1.1 kW 6SL3203-0CE13-2AA0
…1PE14-3L0, …1PE16-1L0,
…1PE18-0L0
1.5 kW … 3.0 kW 6SL3203-0CE21-0AA0
Line reactors for PM330
Power Module 6SL3310-…
Power
Line reactor
GX …1PE33-0AA0
…1PE33-7AA0
160 kW
200 kW
6SL3000-0CE33-3AA0
6SL3000-0CE35-1AA0
3.4.3
Output reactor
Output reactors reduce the voltage stress on the
motor windings. Further, they reduce the inverter load
as a result of capacitive recharging currents in the
cables. An output reactor is required for motor cables
longer than 50 m, shielded or 100 m unshield
ed.
The output reactors are designed for pulse
frequencies of 4 kHz.

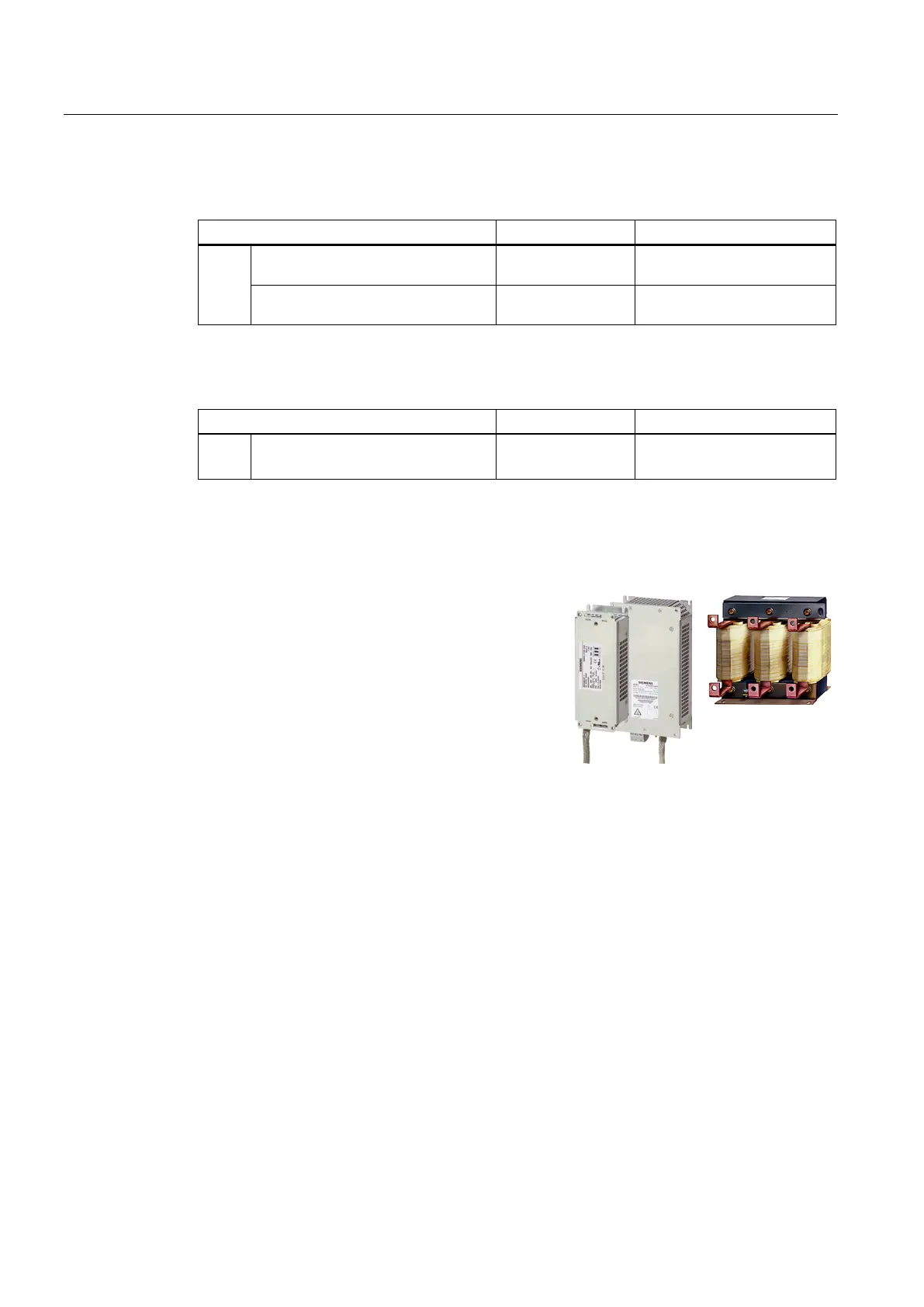

Adjacent examples of output reactors.
for PM240
FSA, FSB
for FSGX
Power Module PM330 requirements:
An output reactor is required for a motor cable length longer than
● 100 m shielded
● 200 m unshielded
The maximum pulse frequency with an output reactor is 4 kHz.
