Setting functions
8.7 Application-specific functions
Inverter with CU230P-2 Control Units
Operating Instructions, 11/2013, FW V4.6.6, A5E02430659B AG
309
The bypass function switches the motor from inverter operation+ to line system operation.
The following options are possible:
● Bypass function when activating via a control signal (p1267.0 = 1)
● Bypass function depending on the speed (p1267.1 = 1)
The inverter controls two contactors via its digital outputs. The inverter analyses the
feedback signals from the contactors via its digital inputs. If using direct connection logic
(high level = ON), both contactors should be NO contacts.

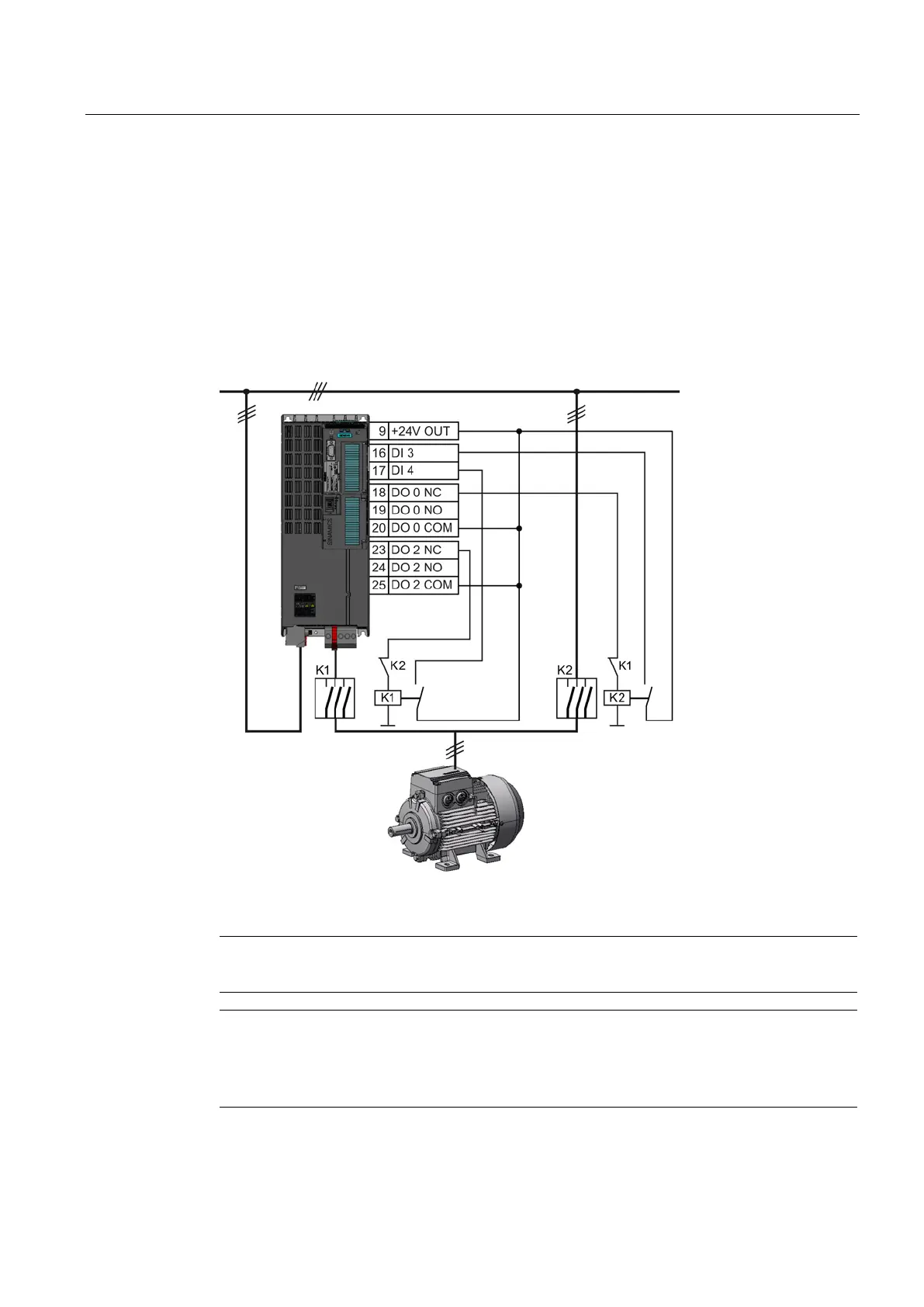

Figure 8-33 Bypass circuit for control using the inverter
Note
Flying restart must be activated for the bypass function (p1200
= 1 or 4).
Note
Bypass mode in the essential service mode
The special features for bypass mode in the essential service mode are described in Section
Essential service mode
(Page 298).
