4.3 Installing Power Modules
Inverter with CU230P-2 Control Units
Operating Instructions, 11/2013, FW V4.6.6, A5E02430659B AG
53

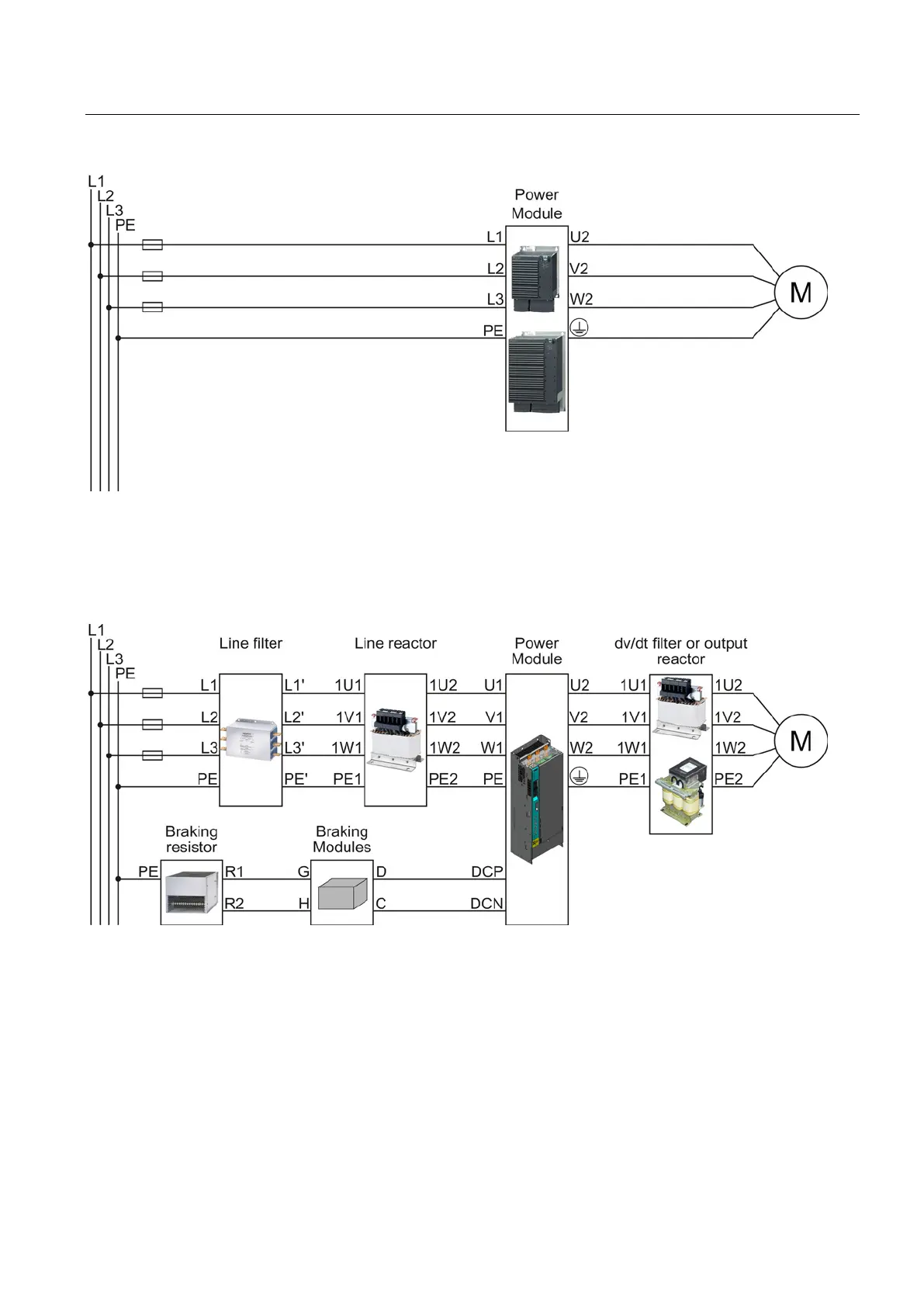

Figure 4-6 Connecting the PM260 Power Module
PM260 Power Modules are available with and without integrated Class A line filters. For
higher EMC requirements you need an external Class B line filter.
Figure 4-7 Connecting the PM330 Power Module
