Installing
4.5 Connecting inverters in compliance with EMC
Inverter with CU230P-2 Control Units
70 Operating Instructions, 11/2013, FW V4.6.6, A5E02430659B AG
EMC-compliant wiring for Power Modules with degree of protection IP20
The terminal cover is not shown in the diagram, so that it is easier to see how the cable is connected.
Line connection cable (unshielded) for Power Modules with integrated line filter.
If you use an external line filter, you will need a shielded cable between the line filter and the
Metal mounting plate (unpainted and with a good electrical conductivity)
Cable clamps for establishing the connection between the shield and the mounting plate through
Motor connection cable (shielded)

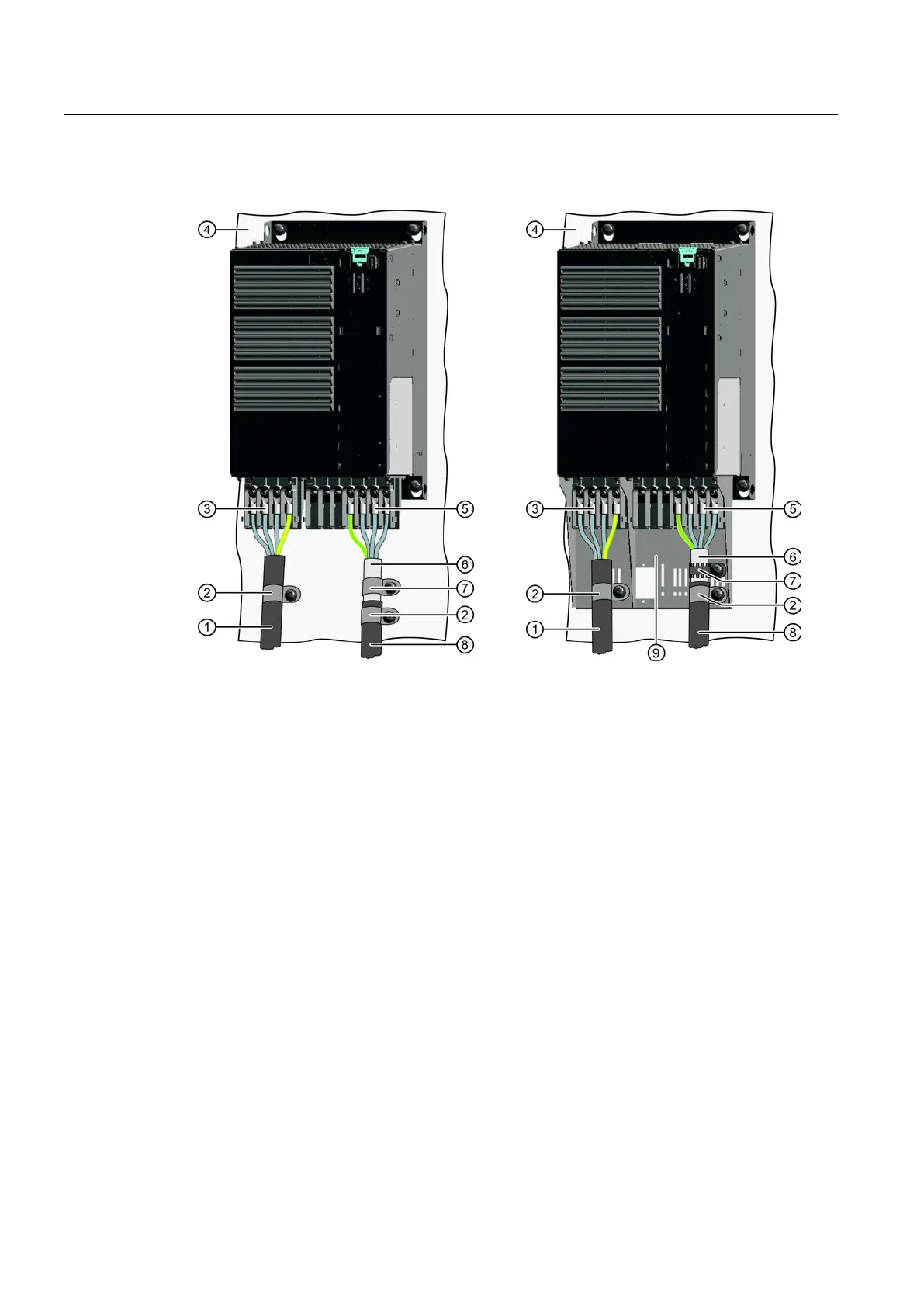

Figure 4-8 EMC-compliant wiring of a Power Module frame size E as example
