Commissioning
5.4 Basic commissioning
Inverter with CU230P-2 Control Units
Operating Instructions, 11/2013, FW V4.6.6, A5E02430659B AG
81

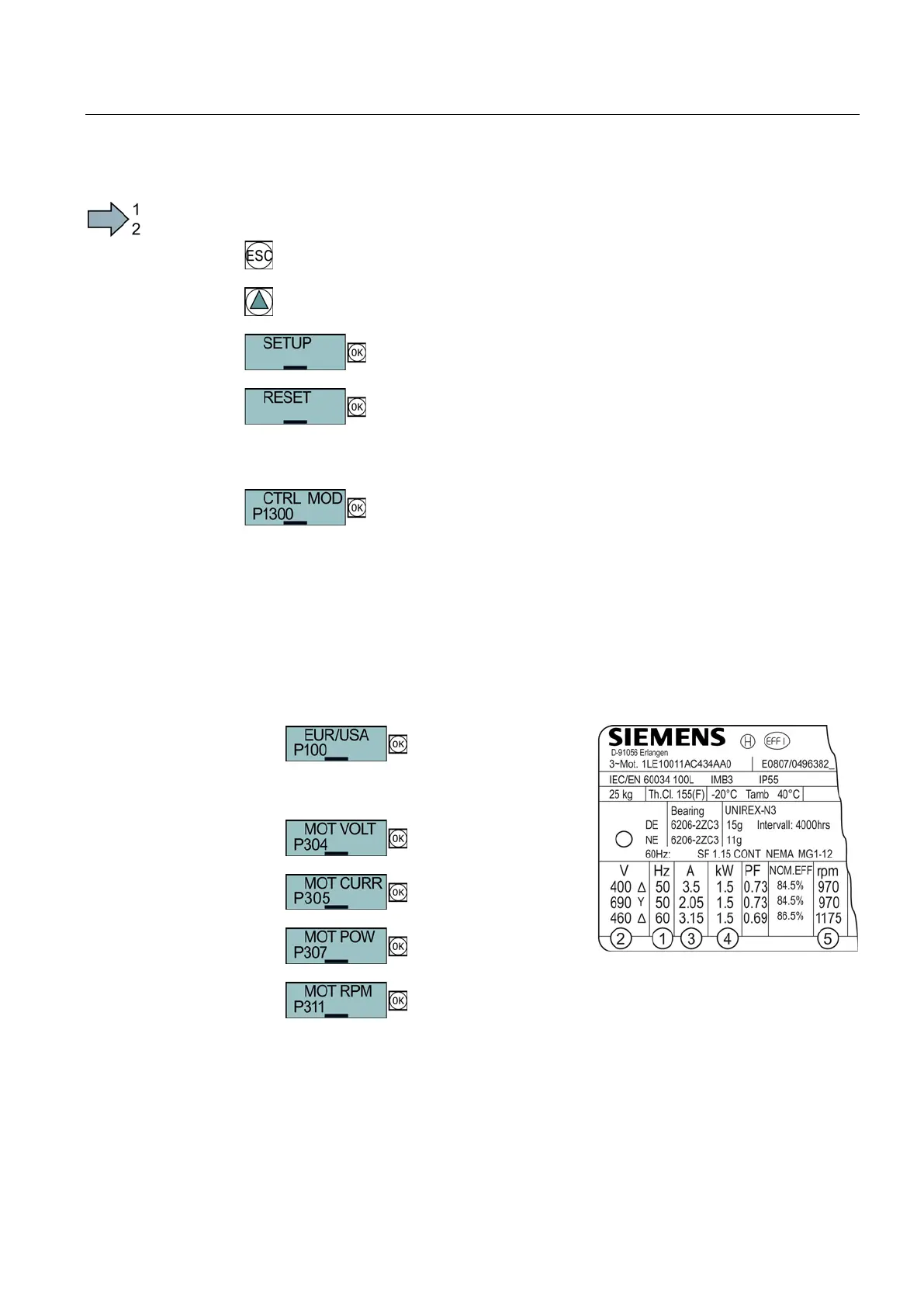

Procedure
To enter the data for basic commissioning, proceed as follows:
1.
Press the ESC key.
2.
Press one of the arrow keys until the BOP
-2 displays the "SETUP" menu.
3.
In the "SETUP" menu, press the OK key to start basic
commissioning.
4.
If you wish to restore all of the parameters to the factory
setting b
efore the basic commissioning:
4.1.
Switch over the display using an arrow key: nO → YES
4.2.
Press the OK key.
5.
Select the motor control mode. The most important control
modes are:
VF LIN
V/f control with a linear characteristic for basic
applications, e.g. horizontal conveyors.
VF QUAD
V/f control with a square
-law characteristic for
basic pump and fan applications.
SPD N EN
We recommend that you use the closed
-loop
speed control.
Further information on the control types can be found in
Section Motor control (Page 250).
6.
Transfer the data from the motor rating plate to the inverter:
6.1.
Motor standard
KW 50HZ
IEC
HP 60HZ
NEMA
KW 60HZ
IEC 60 Hz
6.2.
Rated voltage
6.3.
Rated current
6.4.
IEC power (kW)
NEMA (HP)
6.5.
Rated speed
