Section 06 AIR SUSPENSION SYSTEM
Spray soapy water on fittings in order to locate
leaks.
Pressure Sensor
Release shock absorber pressure by activating
the air suspension switch.
Remove the ignition key.
Plug an ohmmeter to pressure sensor connec-
tors. No polarity need to be observed.
NOTE:
The pressure sensor electrical resistance
varies according to system pressure.
Compare the reading to the minimum value in the
following table.
Disconnect ohmmeter. Activate compressor dur-
ing 60 seconds.
Remove the ignition key.
Connect an ohmmeter to pressure sensor con-
nectors. No polarity need to be observed.
Compare the reading to the maximum value in the
following table.
NOTE:
The residual pressure prevents the shock
absorber rubber boot from turning over. Other-
wise, it would wear out by rubbing on itself.

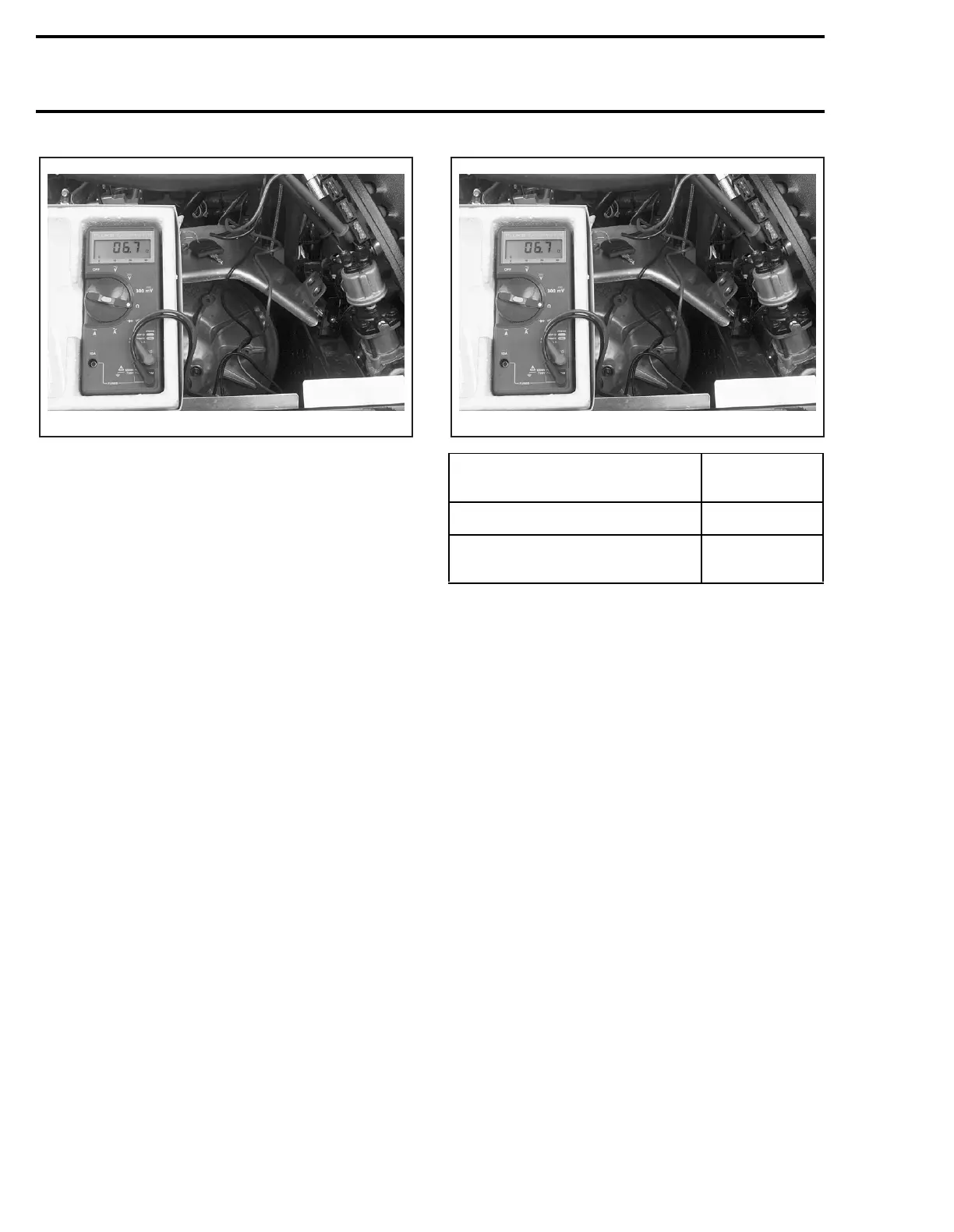

A06I0RA
PRESSURE
RESISTANCE
± 10
Ω
Minimum (residual pressure)
6
Maximum (60 sec. of compressor
operation)
180
A06I0RA
