4-51
PDW-700/V1 (E)
AUTO IRIS 2 Display (Setting-2 AUTO IRIS)
Item Setting Function
IRIS WINDOW 1/2/3/4/5/6/VAR Selects the IRIS WINDOW (detection range)
*1
When VAR is selected, the iris window can be set
by the IRIS VAR WIDTH/HEIGHT/H POS/V POS as
described below
IRIS WINDOW IND. OFF/ON Turns ON/OFF the function that displays a frame
marker for the auto iris detection window
IRIS LEVEL (_99 to 99) Sets the auto iris convergence level
IRIS APL RATIO (_99 to 99) Adjusts the mix ratio of the auto iris detection peak
value and average value
IRIS VAR WIDTH 20 to 479 Sets width of the iris window when VAR is selected
in the above IRIS WINDOW
IRIS VAR HEIGHT 20 to 269 Sets height of the iris window when VAR is selected
in the above IRIS WINDOW
IRIS VAR H POS _460 to 459
*2
Sets the center in the horizontal direction of the iris
window when VAR is selected in the above IRIS
WINDOW
IRIS VAR V POS _250 to 249
*2
Sets the center in the vertical direction of the iris
window when VAR is selected in the above IRIS
WINDOW
IRIS SPEED (_99 to 99) Sets the AUTO IRIS response speed
CLIP HIGH LIGHT OFF/ON Turns ON/OFF the function that limits the AUTO IRIS
detection level to 100% when the video signal of
higher than 100% is input

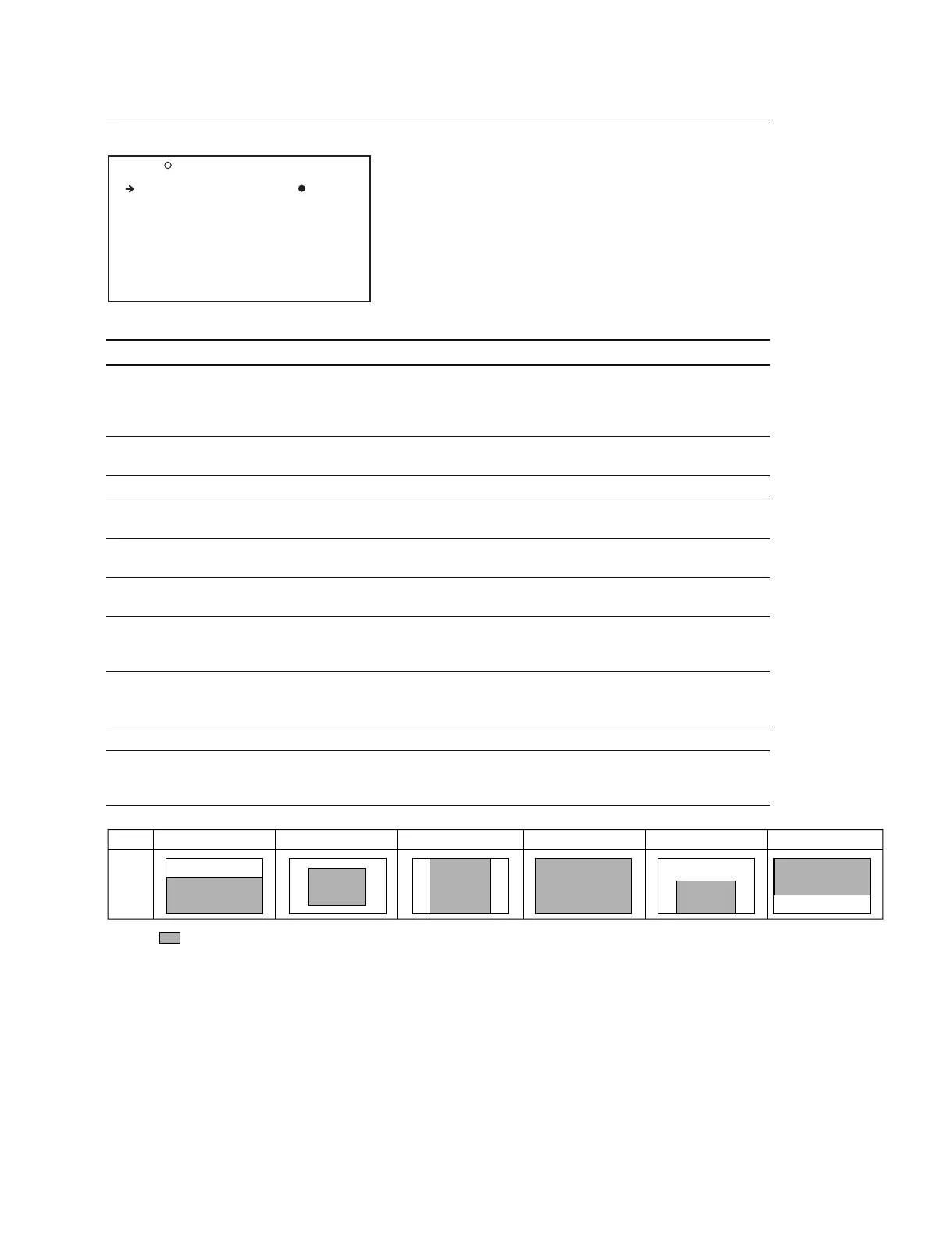

*1 : The IRIS WINDOW is set as shown below.
*2 : Range of this setting is different depending upon the above IRIS VAR WIDTH/HEIGHT setting.
M18 AUTO IRIS 2 TOP
IRIS WINDOW : 1
IRIS WINDOW IND.: OFF
IRIS LEVEL : 0
IRIS APL RATIO : 0
IRIS VAR WIDTH : 240
IRIS VAR HEIGHT : 135
IRIS VAR H POS : 0
IRIS VAR V POS : 0
IRIS SPEED : 0
CLIP HIGH LIGHT : OFF
Setting 1 2 3 4 5 6
VF
screen
Shaded ( ) area : IRIS WINDOW frame
