Unloading Material Connecting Material Coil Box To Printer
Page 120
© Copyright 2021 Stratasys. All rights reserved.
• Remove the filament key from the material port. At this point the corresponding LED
will no longer illuminate.
• Cut the filament approximately 5 centimeters from the end of the filament key. Bend the
filament 90 degrees to prevent filament from retracting into the key. See
Figure 17 (page 120).
• Extract the remaining filament from the material port and discard.

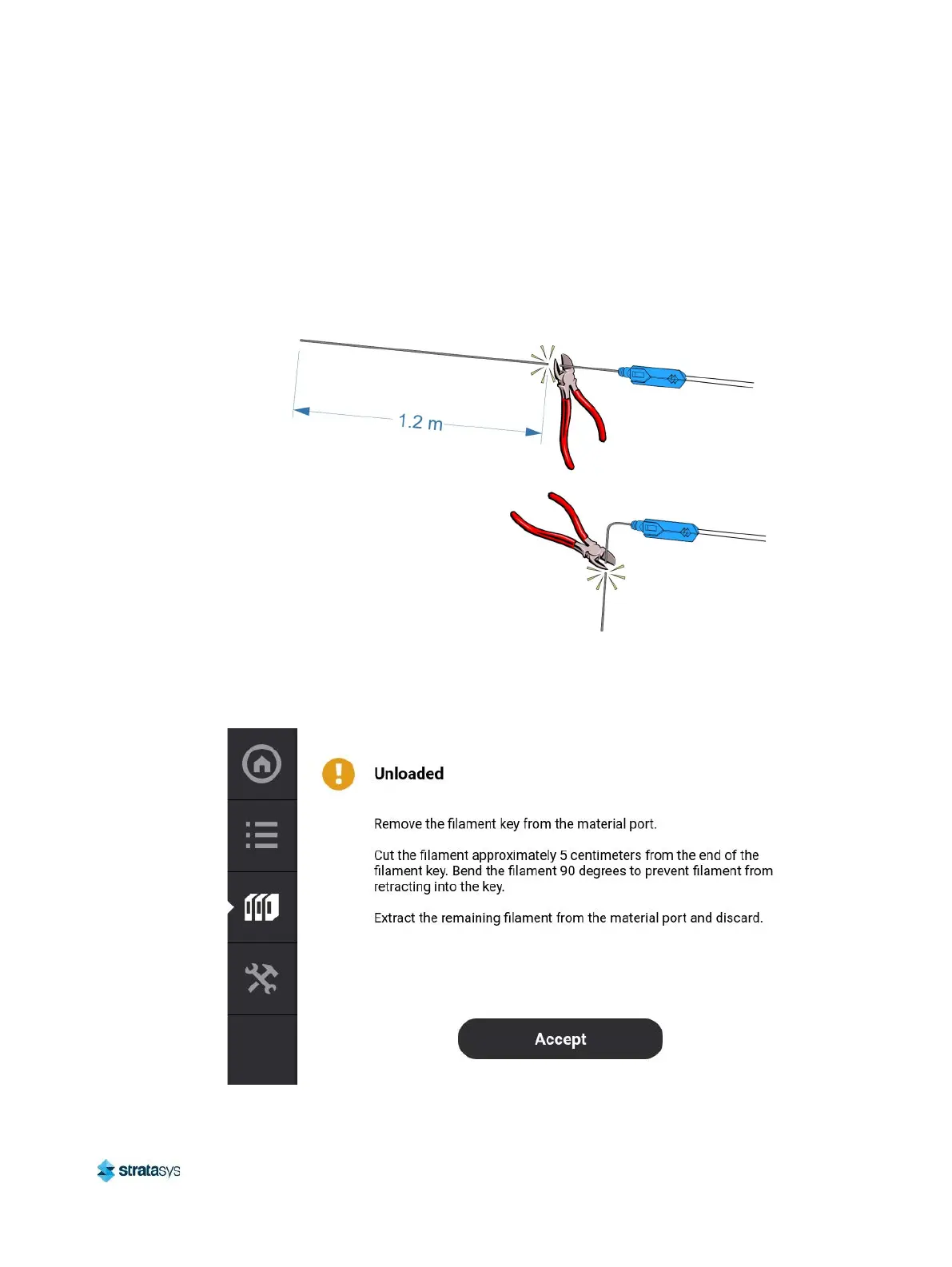

Figure 17: Cut Filament After Unloading
8. Open the material coil box and insert the filament key and filament tube. Close the material
coil box.
Figure 18: Material Unloaded Screen
