8. Replace one or both of the tip wipe assemblies if excessive wear is present. See
Table 2 (page 177) for information on ordering replacement assemblies.

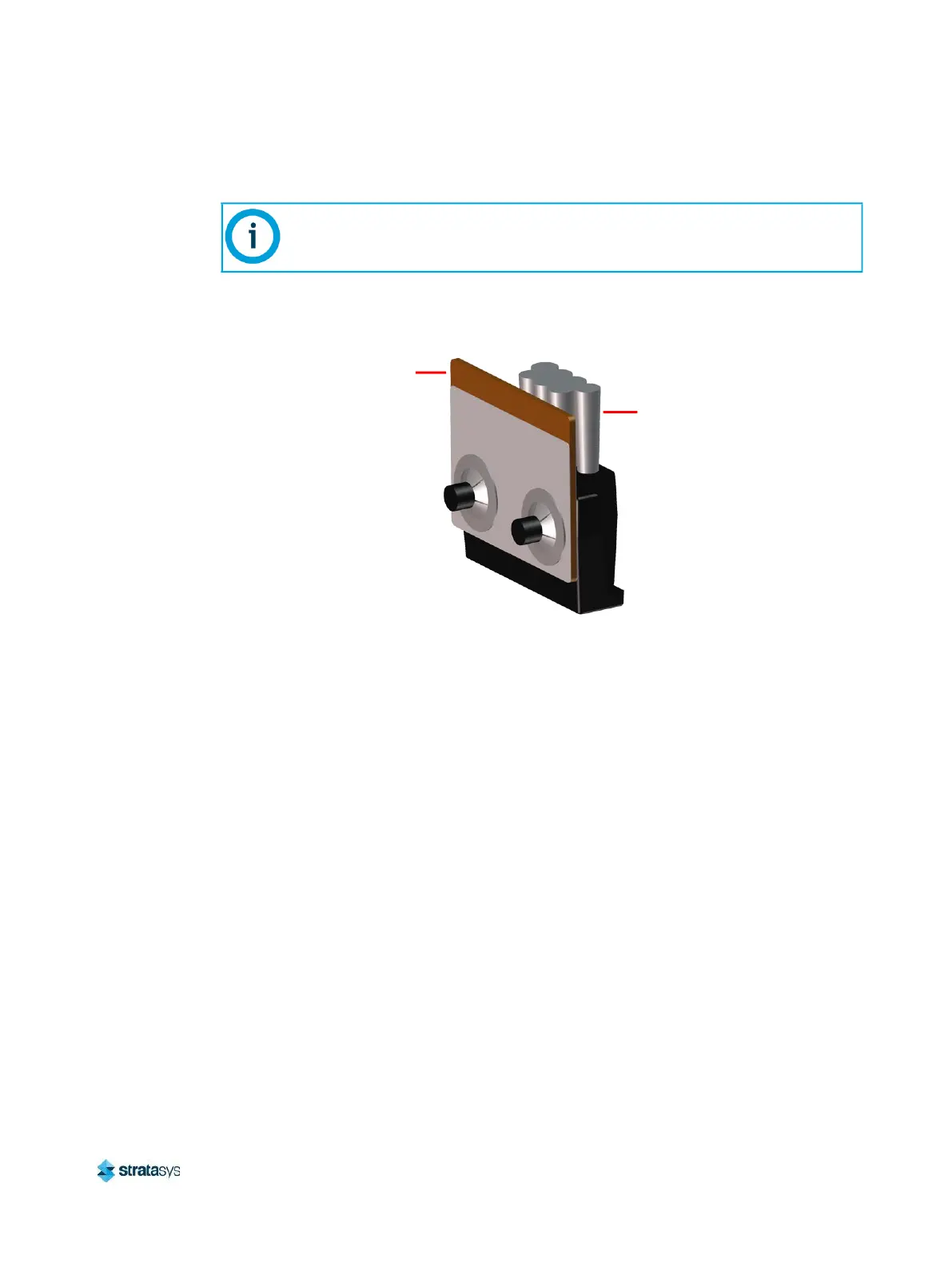

Figure 20: Tip Wipe Assembly Details
9. Reinstall the support side tip wipe assembly by placing the assembly onto its locating pins
and sliding the assembly downward.
10. Repeat step 9 above to reinstall the model side tip wipe assembly.
The components of the assembly cannot be replaced individually. The entire tip
wipe assembly must be replaced if excessive wear is present on the flicker or the
brush.
Tip Wipe Assembly
Flicker
Brush
