Sunfar V560 Series User Manual

122 Description Of Specific Functions
V560 Series High Performance Closed-Loop Vector Inverter User Manual
The DC band-tape brake/brake injection current means the brake current outputted at the time of inverter DC
band-type brake/brake. Its set value is the percentage with respect to the rated current.
Output frequency
Start frequency
Stop
Start frequency
holding time
DC brake
initial frequency
FWD and REV
dead zone time
Start
frequency
Start frequency
holding time
DC brake
initial frequency
DC brake action time
Running time
F0.4.48 Restart after power-off Setting range: 0, 1 Factory default: 0
It is mainly for the trigger starting modes including “panel control, bus control and three-line control”. If the
function of restart after power-off is set to be effective, when the inverter is powered off, the running
command/status before power-off will be automatically saved, and it will automatically restore to the running
status before power-off after the waiting time after power-on again.
In case of the restart after power-off, it will resume running in the mode of restart at detected speed.
F0.4.49 Restart delay time Setting range: 0.1~10.0Sec. Factory default: 0.5
It means the time of waiting status before the inverter automatically executes the function of restart after
power-off.
F0.4.50 Direction change delay
time
Setting range: 0.00~5.00Sec. Factory default: 0.00
The forward and reverse transition dead time is used to set the waiting time for the motor to shift from FWD
to REV or from REV to FWD. This function is used to overcome
reversal current compact caused by
mechanical dead zone, as shown in Figure 7-21.

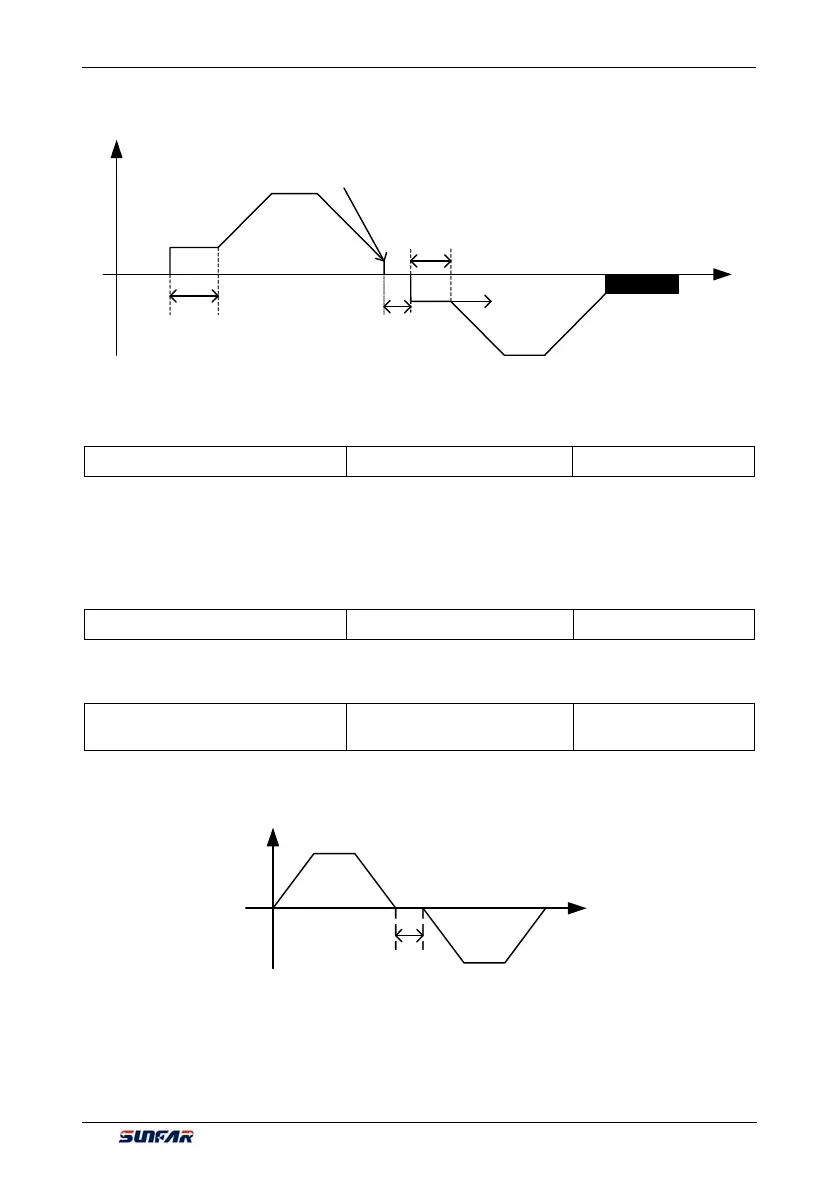

Figure 7-20 Stop DC brake sketch
Figure 7-21 FWD and REV transition dead zone
Sketch
Time
[F0.4.50]
Output frequency
