Description Of Specific Functions 159
V560 Series High Performance Closed-Loop Vector Inverter User Manual
Motor
DI6
24V
COM
Thermistor
Inverter
The motor temperature can also be measured by connecting the thermoswitch to multifunctional input
terminals of frequency inverter ( Function No. 62). See Figure 7-47-C for wiring (such as Dl6 terminal, that is,
F3.0.05=62)
F5.4.44 Sensor current source Setting range: 0~2 Factory default: 100.0
The functional parameter is used to define the current source port of PT100 or PTC sensor.
0: None
1: AO1
Sensor current source port is the multifunctional analog output AO1 and the signal type of output should be
current signal (dial switch of control panel).
2: AO2
Sensor current source port is the multifunctional analog output AO2 and the signal type of output should be
current signal (dial switch of control panel).
F5.4.45 Temperature input source Setting range: 0~3 Factory default: 0
This parameter is used to define the input channel of temperature signal.
0: None
1: AI1 input (PT100 or PTC)
The temperature signal of PT100 or PTC sensor should be inputted through analogy input Channel Al1.
2: AI3 input (PT100 or PTC)
The temperature signal of PT100 or PTC sensor should be inputted through analogy input Channel Al3.
3: DI1~DI9 (thermoswitch)
The temperature signal of thermoswitch should be inputted through multifunctional input terminals Channel
D1-D19 (Function No. 62).

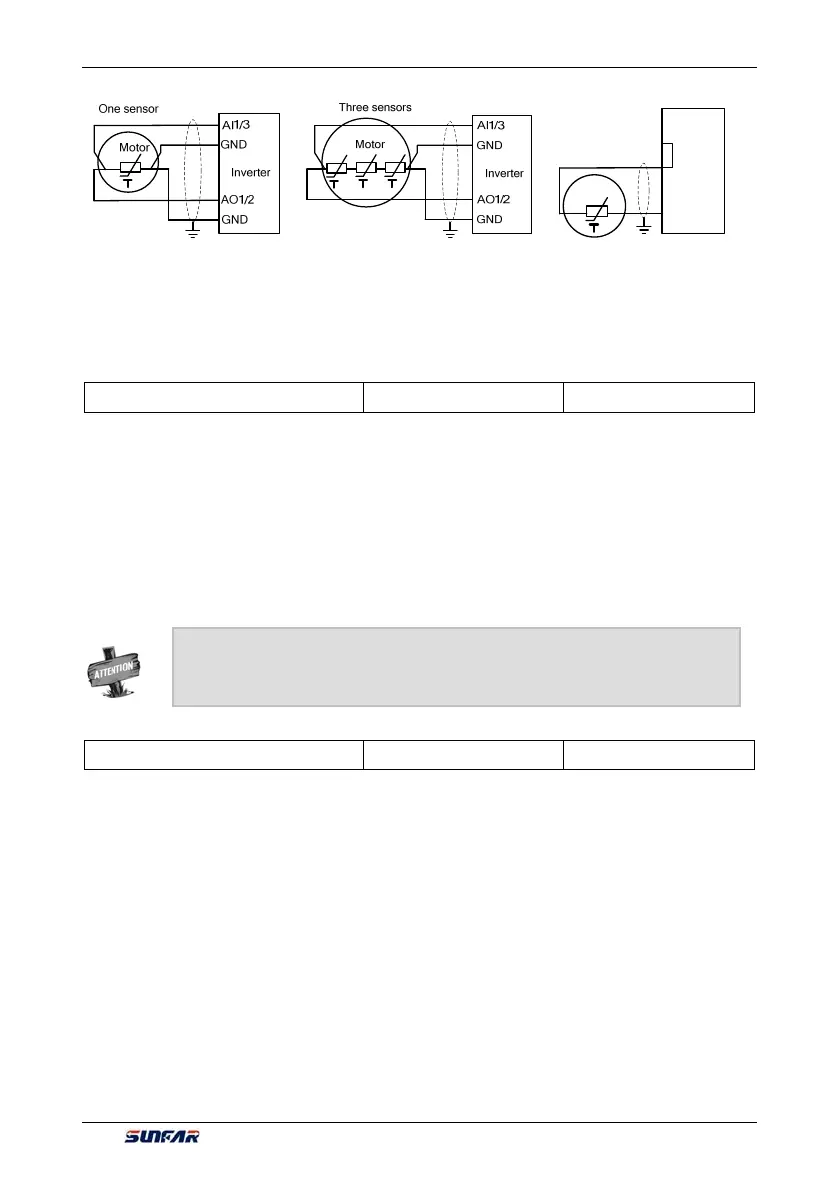

Figure 7-47-C Motor
temperature measurement wiring3
Figure 7-47-A Motor
temperature measurement wiring1
Figure7-47-B Motor
temperature measurement wiring2
¾ The parameter will not only modify but also lock the selected AO port's relevant
parameters, and set them forcibly as fixed value output. When using PT100 sensor, the
port supplies 4.00mA's constant current; When using PTC sensor, the port supplies
1.60mA's constant current.
